EMCO VMC 300

Photo Gallery

EMCO - VMC 300AT-MIL-EMC-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

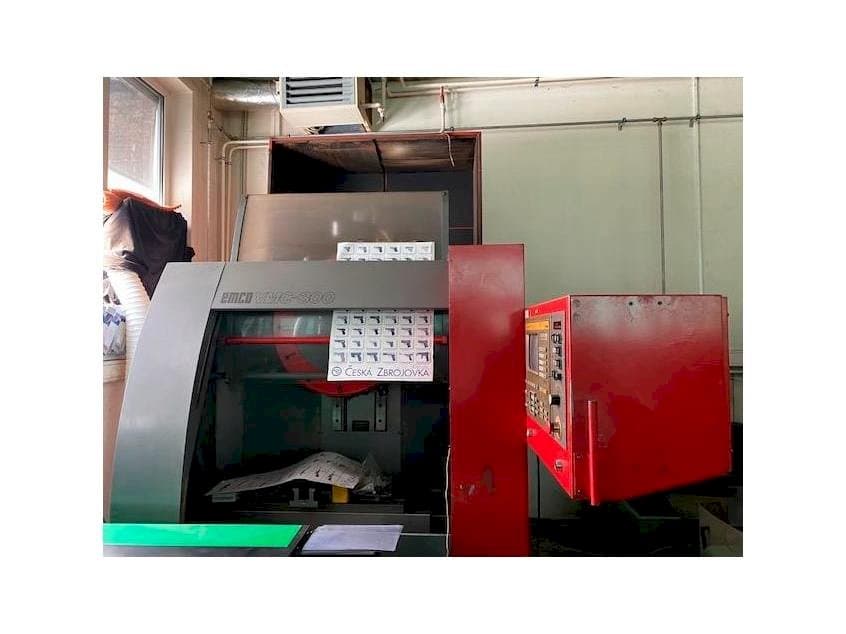

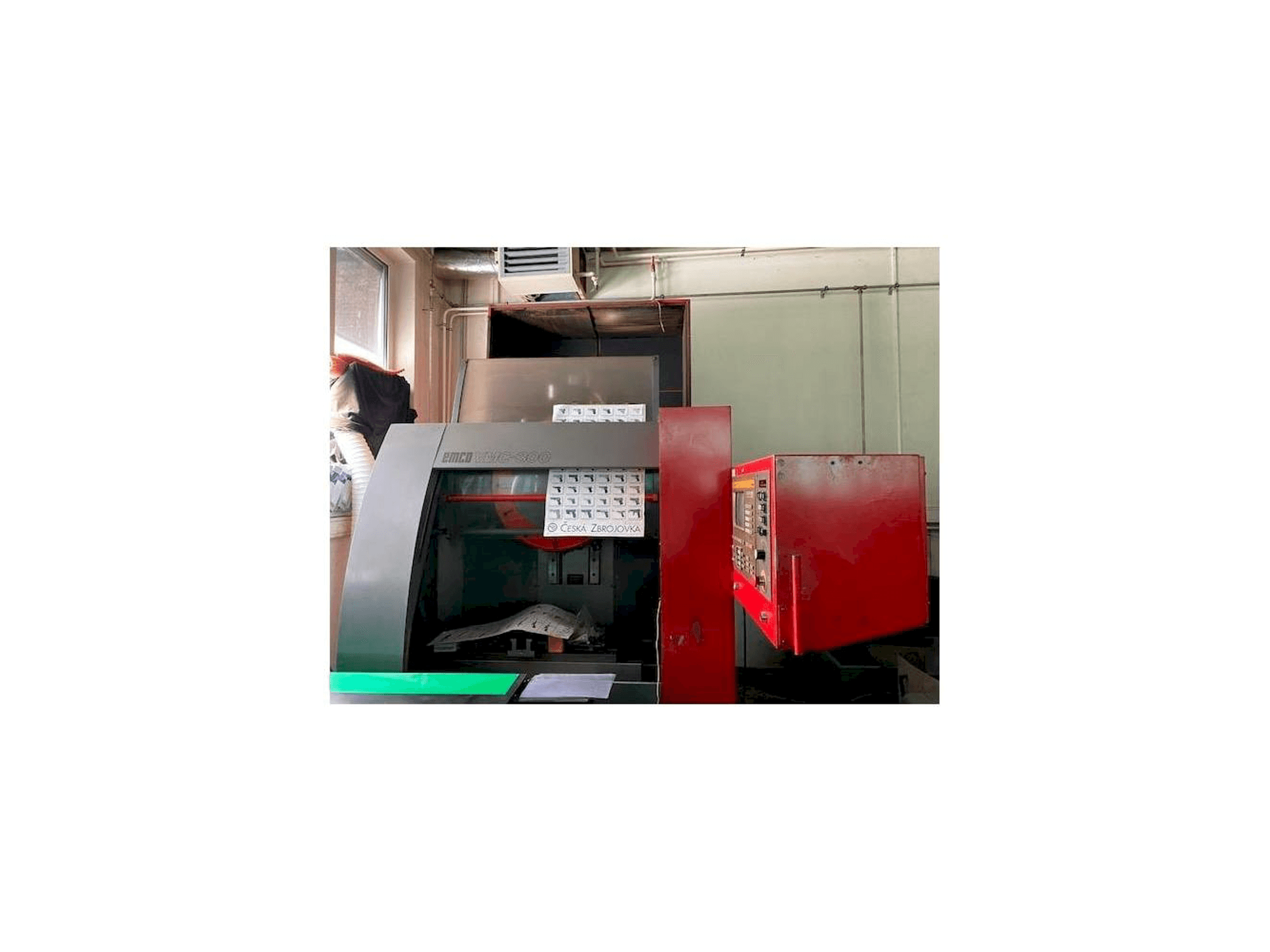

Emco VMC 300 Vertical Machining center

This Emco VMC 300 Vertical Machining center was manufactured in the year 2003 in Austria. It is equipped with a SIEMENS SINUMERIK control unit.

Overview

brand: EMCO
year: 2003
MODEL: VMC 300
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - EMCO VMC 300

General Data

Measurements width: 2400 mm
Measurements depth: 2300 mm
Measurements height: 2450 mm

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Main drive

Spindle speed range: 5000 RPM 1/MIN
Spindle motor power: 9/11 kW
Tool taper: SK 40
Number of axis: 3

Movement

X-AXIS Movement: 420 MM
Y-AXIS Movement: 330 MM
Z-AXIS Movement: 240 MM

Table

Outer length: 850 mm
Outer width: 325 mm
TSlots size: 3 according to DIN 650, 14 mm width, 100 mm spacing
Table load: 150 kg

Tools

Number of stations: 12
Max tool diameter: 100 mm
Max tool length: 220 mm

Additional Information

Additional equipment

Max Torque: 100 Nm (at 5000 RPM), 78 Nm (at 8000 RPM option)
Tool Change Time: T1: 5.8 s, T2: 3.9 s, T3: 3.9 s // Span-to-span Time (VDI 2852): T1: 8.9 s, T2: 7.0 s, T3: 7.0 s
Coolant System: Tank capacity 100 liters / Flow rate 10 l/min / Max delivery pressure 3.7 bar / 4 external nozzles
Lubrication System: Automatic central lubrication for guideways and ball screw spindle / Grease lubrication for main spindle bearings
Pneumatic Connection / System pressure 5 - 10 bar
Minimum air flow 750 l/min / Average air consumption 180 l/min
Electrical Connection: Power supply 3/PE ~ 400 V 50/60 Hz / Connected load 15 KVA / Main fuse 35 A slow-blow

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
