Emmegi - Satellite TU6.5PL-MIL-EMM-2000-00001

Name: Emmegi Satellite TU6.5
Brand: Emmegi
SKU: PL-MIL-EMM-2000-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Emmegi Satellite TU6.5 For Sale | gindumac.com

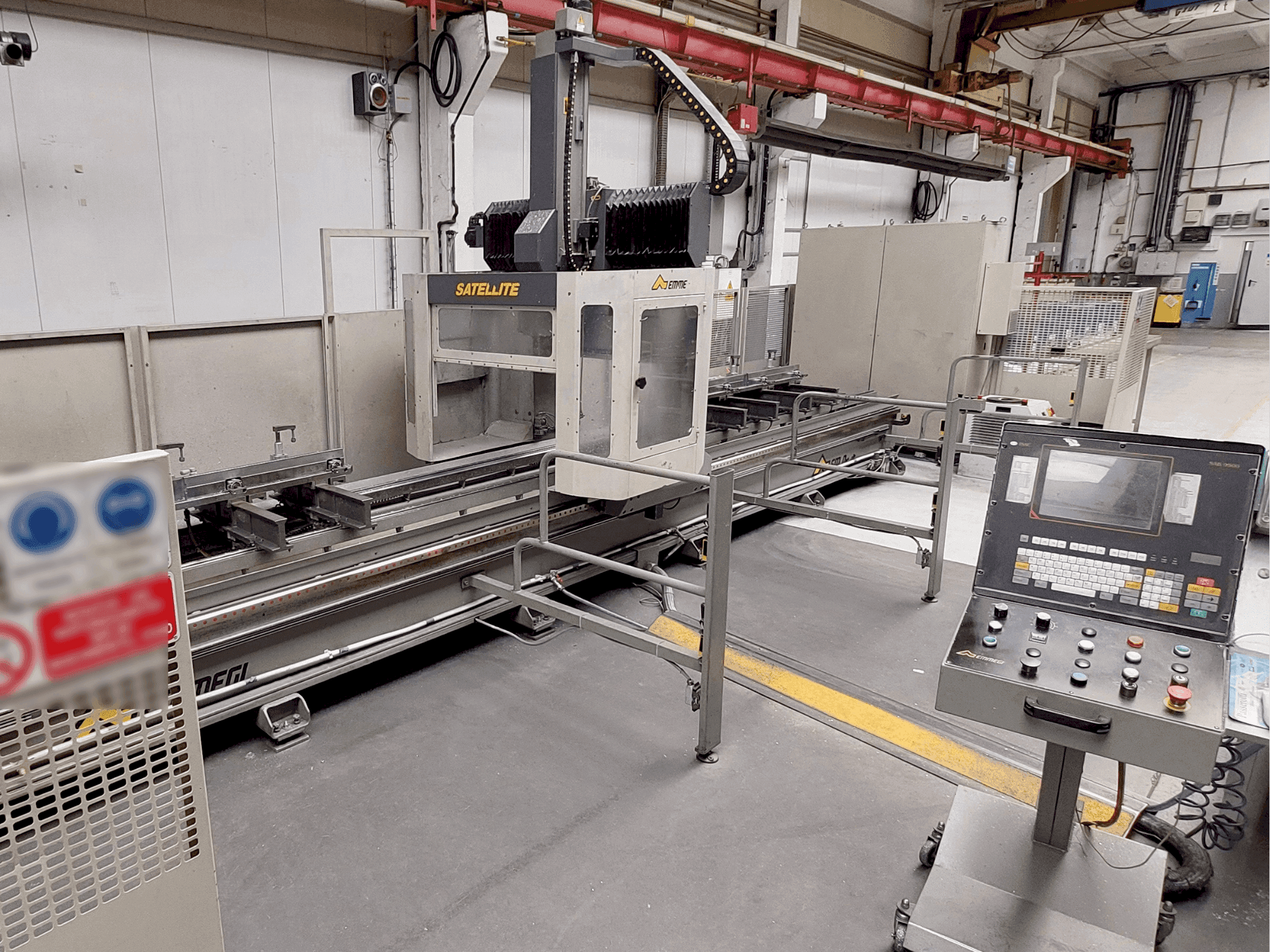

This 5-axis Emmegi Satellite TU6.5 was manufactured in 2000. It features a large working area with X-Axis at 6500 mm, Y-Axis at 800 mm, and Z-Axis at 700 mm. The B-Axis offers full 360° rotation, and the C-Axis provides ±180° movement. With rotational speeds up to 24,000 rpm, this universal machining center represents a robust opportunity for precision machining. Contact us for further details regarding this universal machining center.

Overview

brand: Emmegi
year: 2000
MODEL: Satellite TU6.5
production hours: 44223
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Immediately

Technical Information - Emmegi Satellite TU6.5

General Data

Machine weight: 6700 kg

Main drive

Spindle speed range: 20000 rpm 1/MIN
Spindle motor power: 7 kW

Movement

X-AXIS Movement: 6500 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 300 mm
B-AXIS Movement: 0° to 90° MM
C-AXIS Movement: 0° to 360° MM
AXIS 1 Movement: 360 °
AXIS 2 Movement: ±180 °

Tools

Type of tool holder: ISO 30

Additional Equipment

- Tool Magazine Capacity: 8 + 1 tools
- Positioning of Clamping Devices: Automatic
- Independent, X-Axis Adjustable Working Areas: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum positioning speed of x-axis: 40 m/min
- - Maximum positioning speed of y, z axes: 30 m/min
- - Maximum positioning speed of b, c axes: 22. 5 u/min
- - Maximum workpiece length (top surface processing): 6890 mm
- - Maximum workpiece length (processing on all four sides): 6650 mm
- - Maximum workpiece width (top surface processing): 760 mm
- - Maximum workpiece thickness (with 80 mm tool length): 200 mm
- - Installed power: 23 kw
- - Operating pressure: 6 - 8 bar
- - Air consumption per working cycle: 150 n/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
