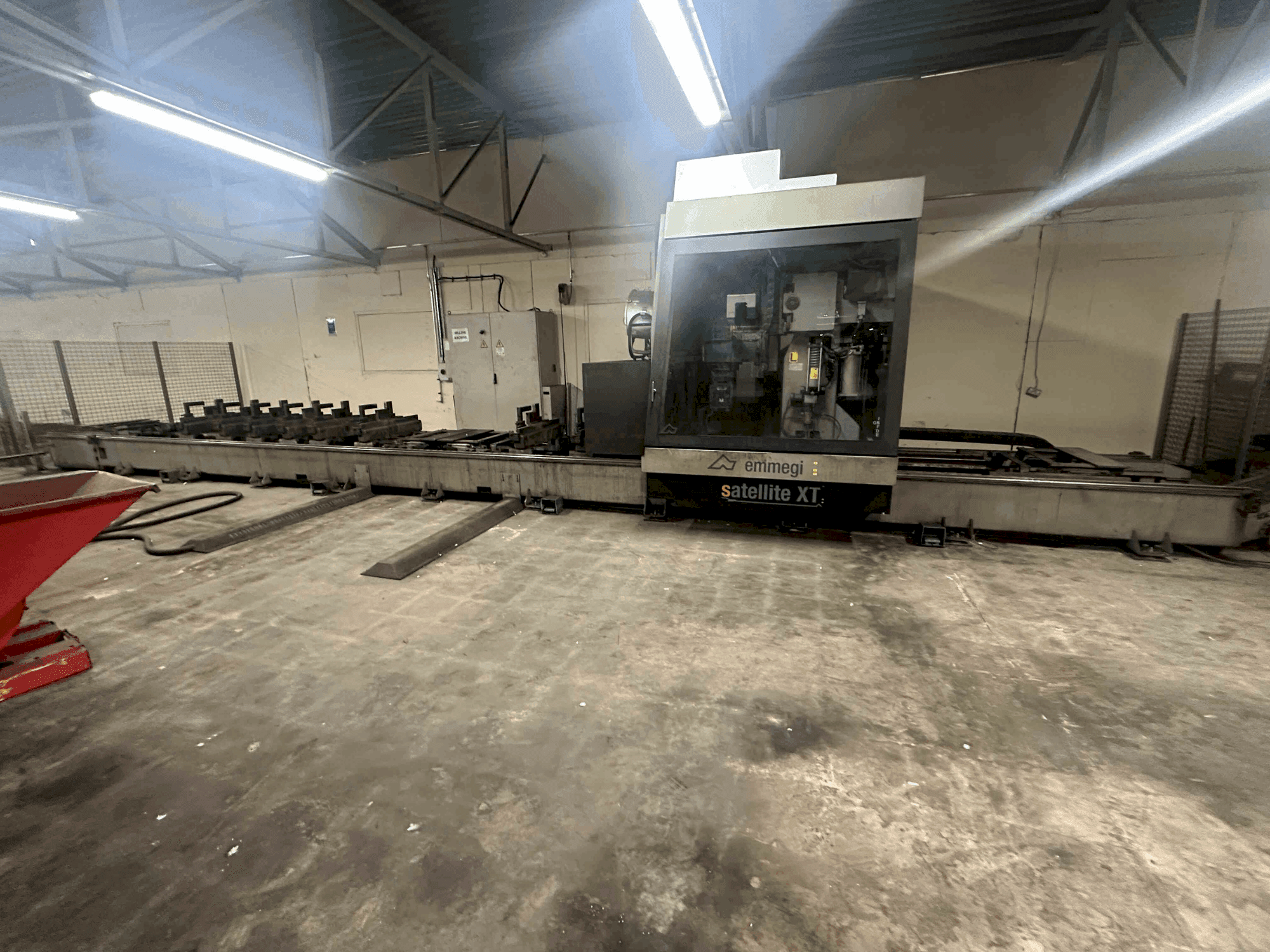

Front view of Emmegi Satellite XT10500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Emmegi Satellite XT10500

Photo Gallery

Emmegi - Satellite XT10500IE-MIL-EMM-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Emmegi Satellite XT10500 For sale | gindumac.com

This 5-axis Emmegi Satellite XT10500 was manufactured in 2014, designed for the construction industry, specifically for producing shuttering for buildings. It features a large working area with X-Axis movement of 10500 mm and Y-Axis movement of 1100 mm. Equipped with an Emmegi Filo control unit, it supports multiple languages and offers a spindle speed range up to 24000 1/min. A great opportunity to buy this Emmegi Satellite XT10500 machining centre. Contact us for further details regarding this machining centre.

Overview

brand: Emmegi
year: 2014
MODEL: Satellite XT10500
application type: Milling
Location: Ireland
machine type: Universal Machining Centre

Technical Information - Emmegi Satellite XT10500

General Data

Measurements width: 14900 MM
Measurements depth: 4700 MM

Control Unit

Model: Filo

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 10500 mm
Y-AXIS Movement: 1100 mm
Z-AXIS Movement: 655 mm
AXIS 1 Movement: 0º - 90 °
AXIS 2 Movement: 0º - 360 °

Workpiece

Workpiece x: 10000 mm
Workpiece y: 1000 mm
Workpiece z: 400 mm

Table

Outer length: 10500 MM
Outer width: 1100 MM

Tools

Slots in storage: 16
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: HSK-63F

Media

Main electronic connection: 400 v
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - End product: shuttering for buildings
- - Industry: construction industry

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
