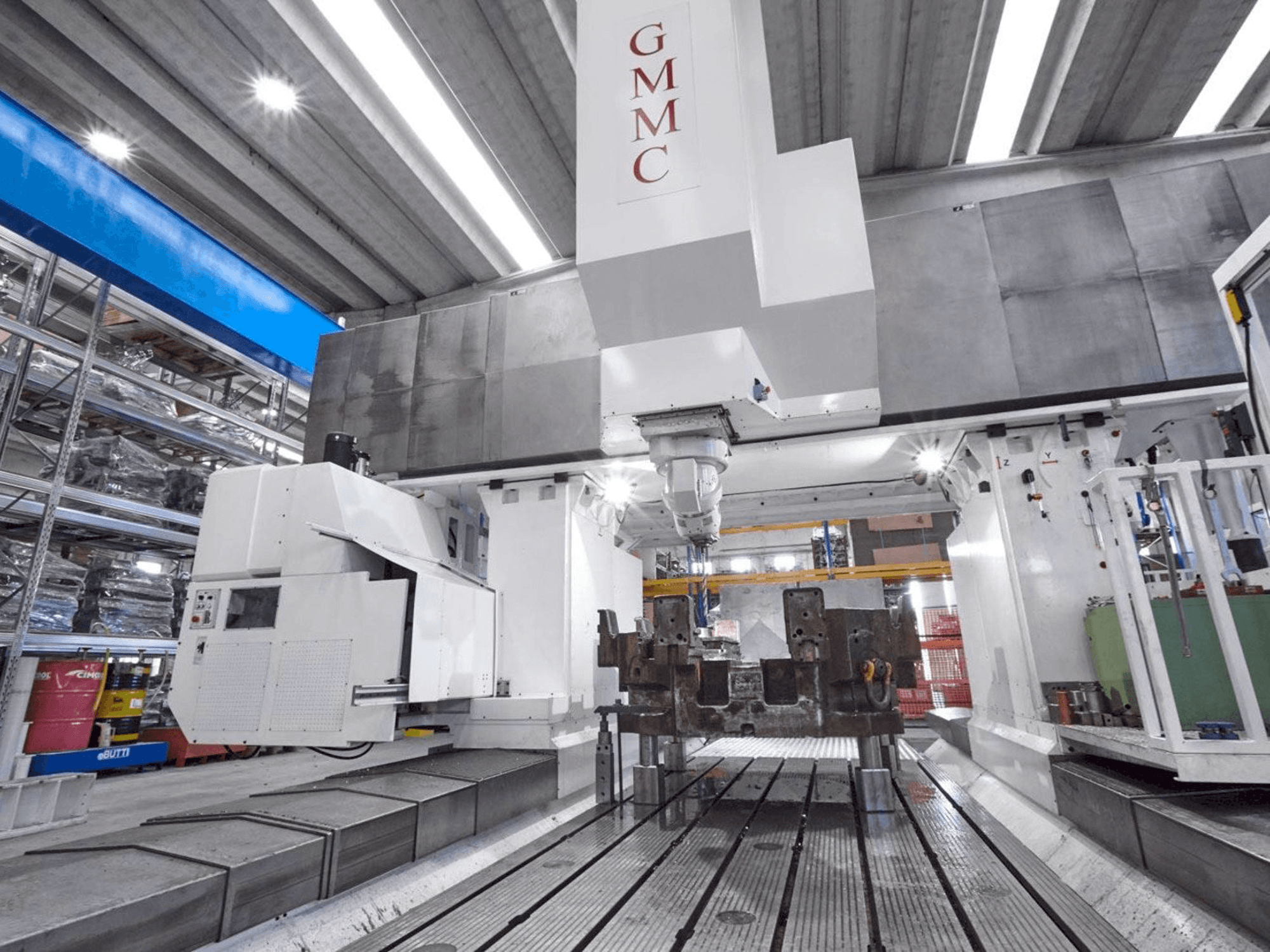

EMSIL GMMC-6000 Universal Machining center

This EMSIL GMMC-6000 Universal Machining center was made in 2023. It is equipped with a Fanuc 31i control unit. The machine has a spindle speed of 3000 rpm.

Overview

brand: Emsil
year: 2023
MODEL: GMMC-6000
production hours: 0
application type: Milling
Location: Romania
machine type: Universal Machining Centre
control unit brand: FANUC

Technical Information - Emsil GMMC-6000

Control Unit

Model: 31i
Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 37/45 kW

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 3000 mm
Z-AXIS Movement: 1500 mm

Table

Outer length: 6000 mm
Outer width: 2000 mm
Table load: 5000 kg/m2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns: 2800 mm
- - Ram section : 470x570 mm
- - Working feed on axes: 0-12000 mm/min
- - Rapid feed on axes: 15000 mm/min
- - Taper: iso-50 (din69871)
- - Servomotors ac (brushless)
- - Telescopic covers for x and y axis
- - Internal/external tool cooling
- - Centralized hydraulic and lubrication unit
- - Foundation elements, 1 set
Qualitative Machine Benefits:
- - Painting: ral7035
- - Heidenhain linear scales for x and y axes & guideway with integrated measuring system schneeberger for z axis
- - Chip evacuation system (2 pieces chip conveyors)
- - Tu-37 automatic indexing milling head (undetacheable)
- - A axis: 360°
- - C axis: ±180°
- - Maximum torque: 1400 nm
- - Pick up station with 2 posts for automatic changing of the head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
