Emsil HVTL 60/80

Photo Gallery

Emsil - HVTL 60/80RO-TUR-EMS-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

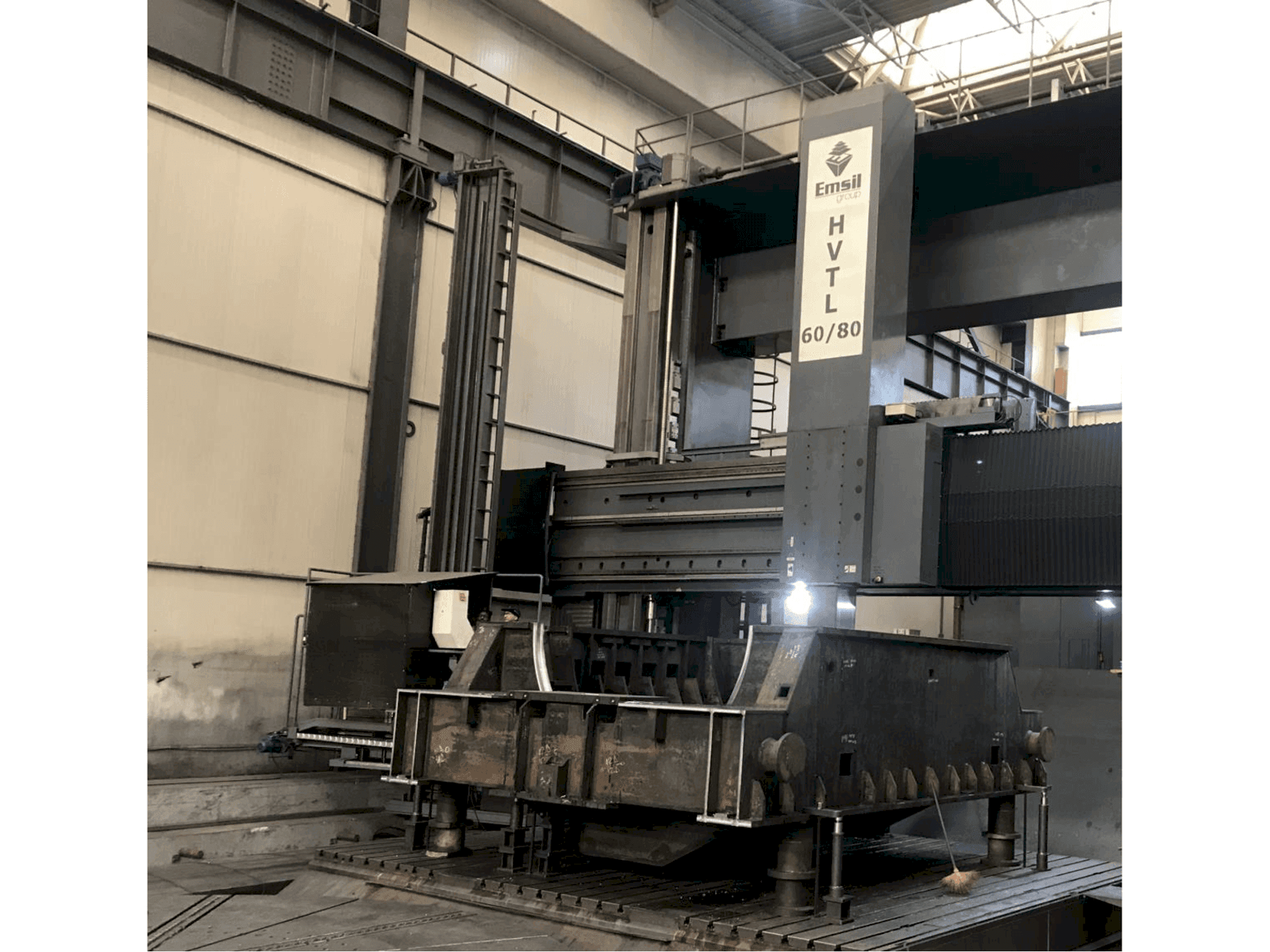

Emsil HVTL 60/80 vertical turning lathe

This Emsil HVTL 60/80 vertical turning lathe was made in the year 2015. It is equipped with a Fanuc 31i control unit. The machine has fixed table dimensions of 3 x 2000 x 6000 mm.

Overview

brand: Emsil
year: 2015
MODEL: HVTL 60/80
application type: Turning
Location: Romania
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Emsil HVTL 60/80

Control Unit

Model: 31i
Brand: FANUC

Movement

Y-AXIS Movement: 11800 mm
Y-AXIS Working Feed: 1000 mm/min
Z-AXIS Movement: 2700 mm
Z-AXIS Working Feed: 1000 mm/min
W-Axis Movement: 5200 mm
W-Axis Working Feed: 0 ÷ 250 mm/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Work piece maximum diameter: 8500 mm
- - Distance between columns: 8500 mm
- - Work piece maximum diameter through gantry travel: 11000 mm
- - Work piece maximum height: 6000 mm
- - Work piece maximum weight on faceplate: 100000 kg
- - Table diameter: 6000 mm
- - Speeds range (continuously variable): 0 - 50 rpm
- - 4 x main motor fanuc make: 160 kw (4 x 40)
- - Maximum torque available at the table: 470000 nm
- - Feed range (milling operations): 1 ÷ 240 dgr/min
Qualitative Machine Benefits:
- - Fixed table − dimensions: 3 x 2000 x 6000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
