ERMAKSAN - LASERMARK 4000 3x1,5TR-LAS-ERM-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery

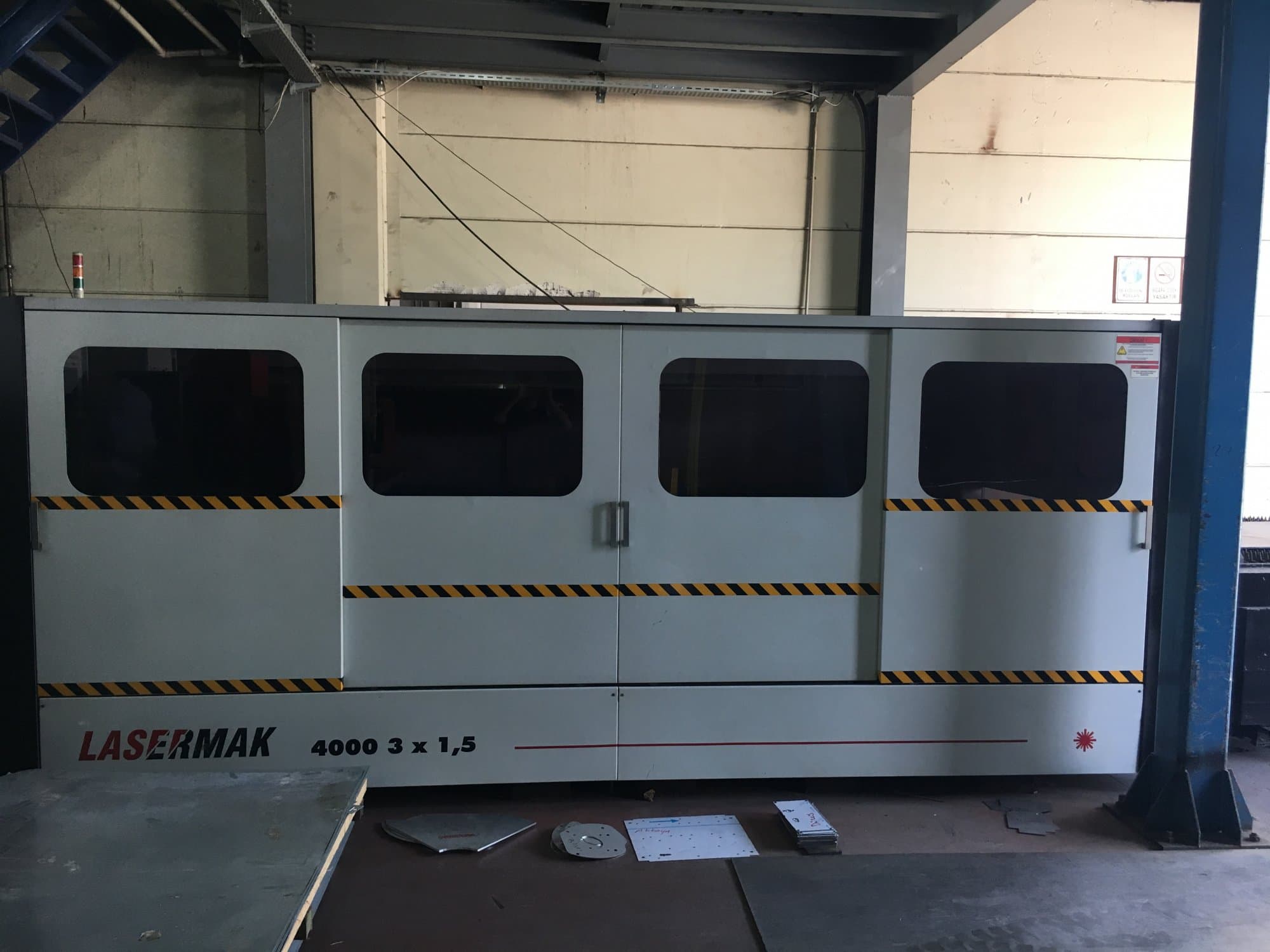

- ERMAKSAN LASERMARK 4000 3x1,5 Laser Cutting Machine
This ERMAKSAN LASERMARK 4000 3x1,5 Laser Cutting Machine was manufactured in 2011 in Turkey, and has been operative for 35197 production hours ever since. With a Fanuc 16i LB Control unit, this machine has handled mainly carbon steel and stainless steel of up to 16 mm in thickness, producing parts for the automotive and the machinery industries. A Double Cutting Bed is included as additional equipment.
Overview
- brand: ERMAKSAN
- year: 2011
- MODEL: LASERMARK 4000 3x1,5
- production hours: 35197
- application type: Cutting
- Location: Turkey
- machine type: CO2 Laser Cutting Machine
- control unit brand: FANUC
Technical Information - ERMAKSAN LASERMARK 4000 3x1,5
General Data
- Measurements width: 5285 mm
- Measurements depth: 10480 mm
- Measurements height: 2040 mm
- Machine weight: 19500 kg
Control Unit
- Model: Fanuc 16i LB
- Brand: FANUC
Main drive
- Laserpower: 4000 kW
- Laser type: CO2
- Laser brand: FANUC
Movement
- X-AXIS Movement: 3020 mm
- Y-AXIS Movement: 1540 mm
- Z-AXIS Movement: 130 mm
- W-Axis Movement: 3020 mm
- X-Y-Simultaneous Movement: 2250 mm
Workpiece
- Workpiece weight: 720 kg
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12 mm
- Aluminum: 8 mm
Media
- Main electronic connection: 380 V
- Power consumption: 65-90 kVA
Additional Equipment
- - Double Cutting Bed
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
