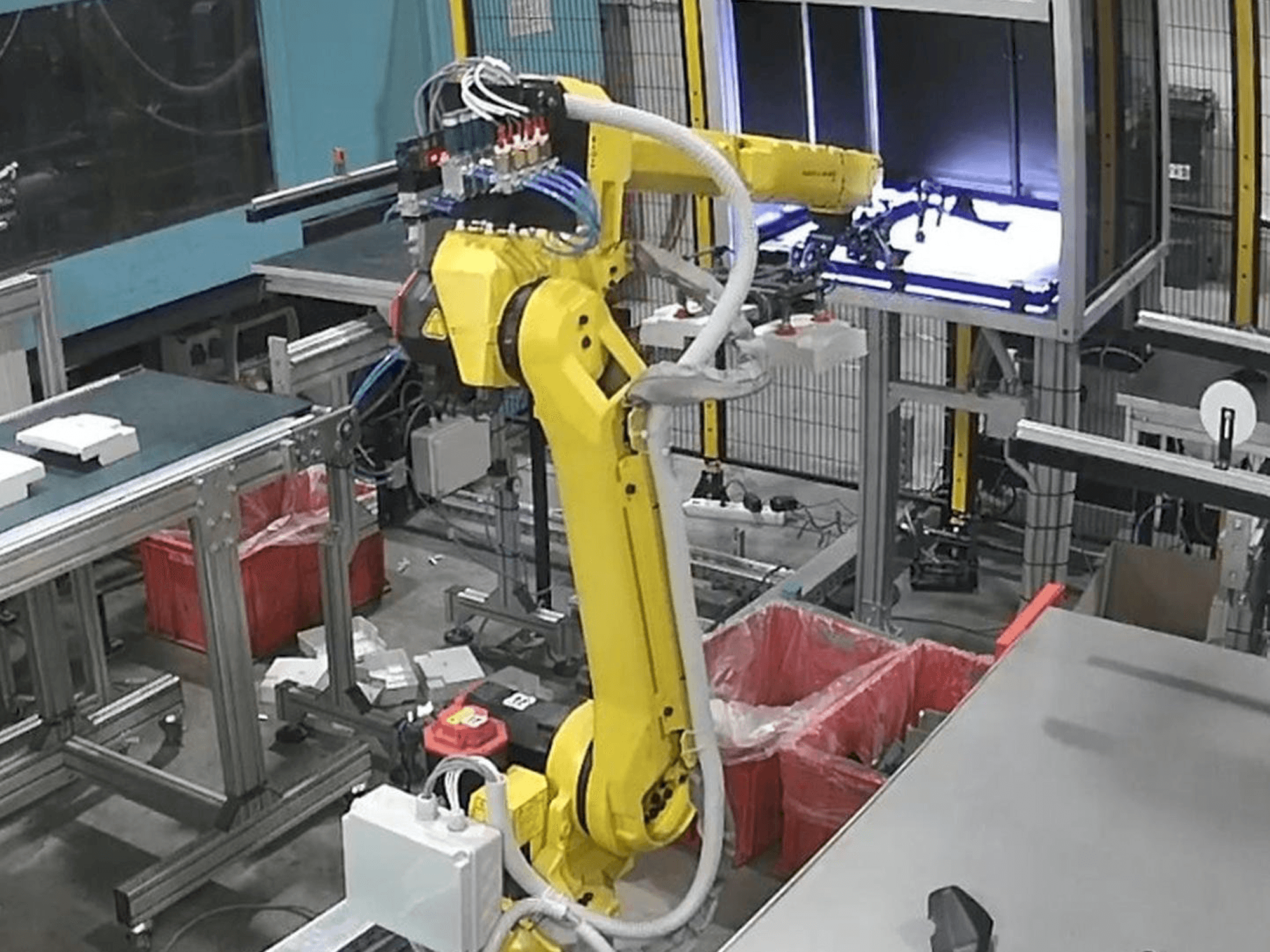

FANUC M20iA12L 6-axis robot + Fanuc iR Vision

This FANUC M20iA12L 6-axis robot + Fanuc iR Vision was made in the year 2019 and has 500 hours. It is controlled by R-30iB Plus. The robot has a repeatability of ± 0.03* and a Robot footprint of 343 x 343 mm.

Overview

brand: FANUC
year: 2019
MODEL: M20iA12L
production hours: 500
application type: Robotics
Location: Poland
machine type: Robot Arm
availability: Sold

Technical Information - FANUC M20iA12L

General Data

Machine weight: 250 kg

Media

Main electronic connection: 380-575 / 50/60 Hz

Additional Equipment

- Options included - Fanuc iR Vision

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6-axis robot + fanuc ir vision
- - Repeatability - ± 0. 03*
- - Motion range: j1 - 340 (370) deg, j2 - 260 deg , j3 - 475 deg, j4 - 400 deg, j5 - 360 deg, j6 - 900 deg
- - Max speed: j1 - 210 deg/s, j2 - 210 deg/s, j3 - 265 deg/s, j4 - 420 deg/s, j5 - 450 deg/s, j6 - 720 deg/s
- - J4 - moment/inertia: 22 / 0. 65 nm/kgm2, j5 - moment/inertia: 22/ 0. 65 nm/kgm2, j5 - moment/inertia: 9. 8/0. 17 nm/kgm2
- - Robot footprint – 343 x 343 mm
- - Mounting position floor: yes
- - Mounting position upside down: yes
- - Mounting position angle: yes

Extra information

- Fanuc iR Vision – included in the price

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
