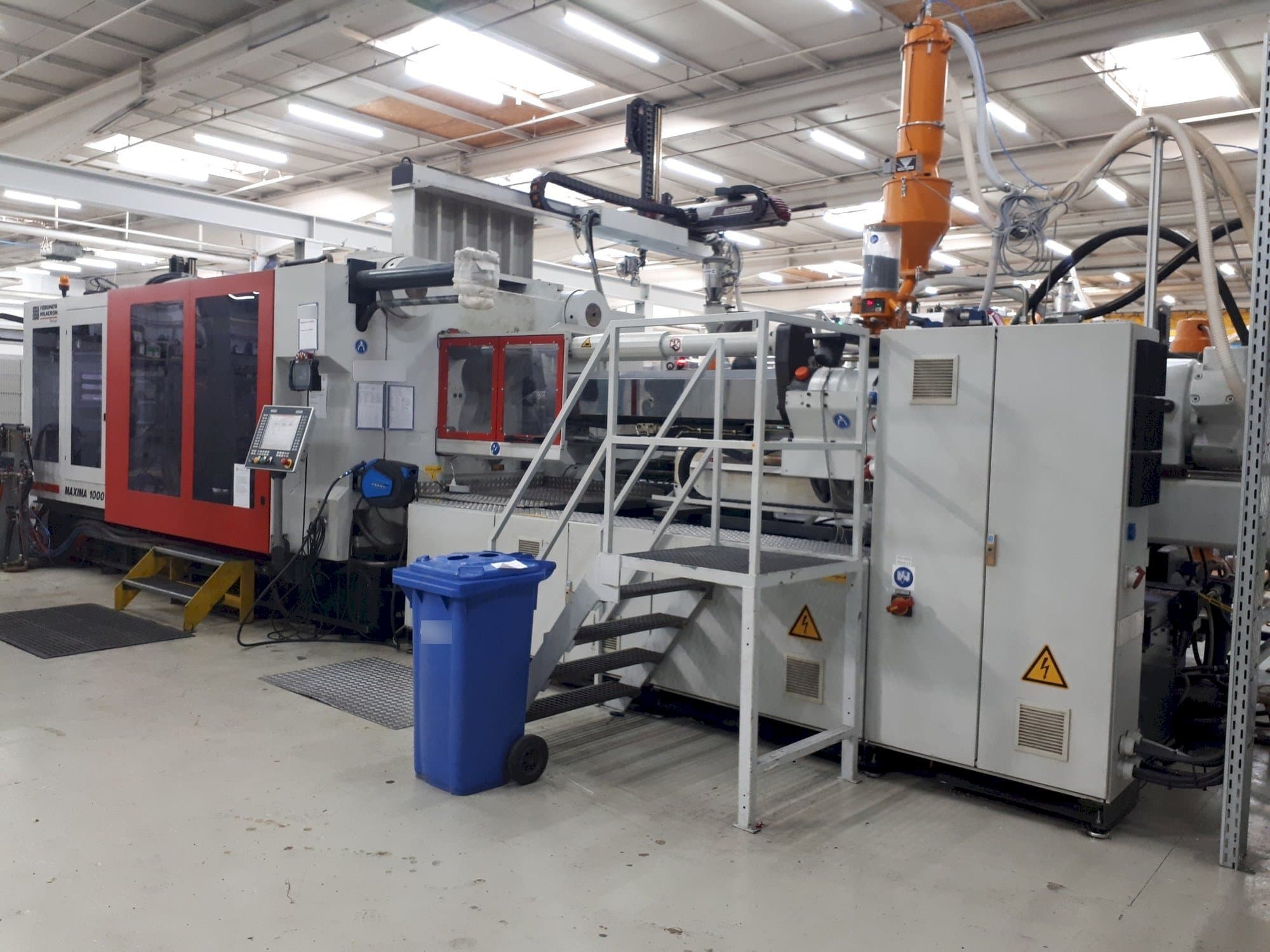

Front view of Ferromatik MAXIMA 1000 Monos machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FERROMATIK MAXIMA 1000 Monos

Photo Gallery

FERROMATIK - MAXIMA 1000 MonosPL-INJ-FER-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Ferromatik MAXIMA 1000 Monos Injection Moulding Machine

This Ferromatik MAXIMA 1000 Monos Injection Moulding Machine was built in the year 2008. It shows a production record of 50876 hours. It is operated through a Ferromatik MILACRON control unit. The machine is capable of operating with a clamping force 10000 kN, clamping ejector stroke 300 mm, mould installation height between 500 - 1300 mm. It can works with a screw diameter 110 mm and their a speed up to 171 rpm.

Overview

brand: FERROMATIK
year: 2008
MODEL: MAXIMA 1000 Monos
production hours: 50876
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK MAXIMA 1000 Monos

General Data

Measurements width: 10450 mm
Measurements depth: 3180 mm
Measurements height: 2820 mm
Machine weight: 54000 KG

Injection Unit

Screw diameter: 110 mm
Shot weight: 3805 g
Injection pressure: 1582 bar
Screw speed: 171 rpm

Clamping unit

Clamping force: 10000 kN
Mould height min: 500 mm
Mould height max: 1300 mm
Size of mold platens: 2000 x 1605 mm
Ejector stroke: 300 mm
Ejector force for / back: 166 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Of injection units: 1
- - Opening path by min. Mould installation height: 1900 mm
- - Opening path by max. Mould installation height: 1100 mm
- - Opening path (plate distance) max. : 2400 mm
- - Clear span between the holm (h x v): 1550 x 1200 mm
- - Hardened exchange rings, thickness 20 mm, both sides yes
- - Ejector chamber depth: 240mm
- - Ejector passage through the traverse, diameter movable plate: 200 mm
- - L/d-ratio of injection unit: 20
- - Screw drive type: hydraulic
Qualitative Machine Benefits:
- - Ceramic heating tape includes
- - Plastification power (ps): 188 g/s
- - Injection power (ps): 1067 ccm/s
- - Theoretical shot volume: 4181 ccm
- - Hydraulic shot-off nozzle includes
- - Extruder with screw diameter 80 mm
- - Flange cooling controlled separately on screen included
- - Machine in good working condition, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
