FFZ 30-60

Photo Gallery

FFZ - 30-60DE-MIL-FFZ-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

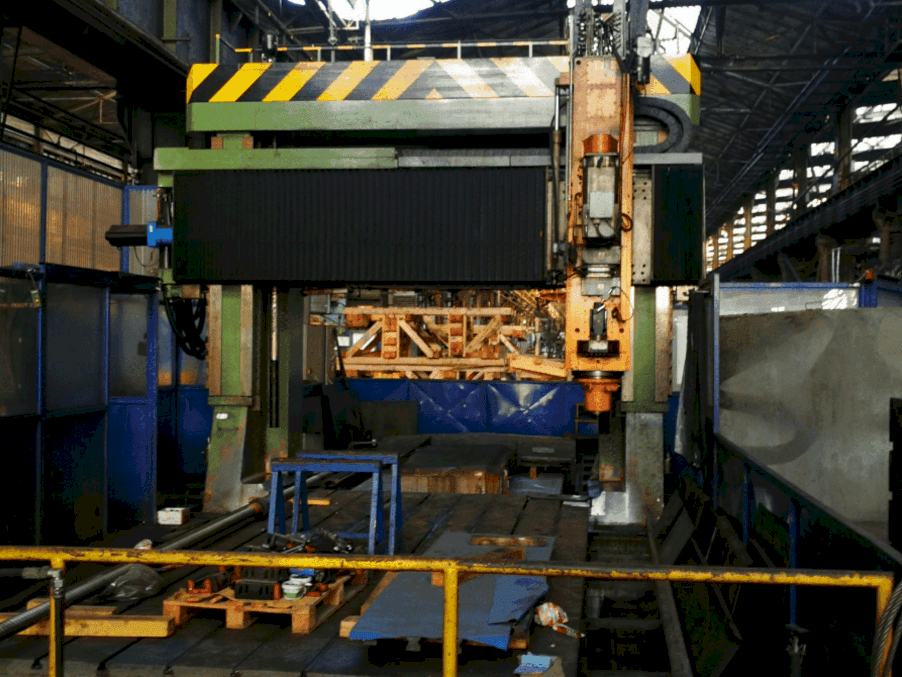

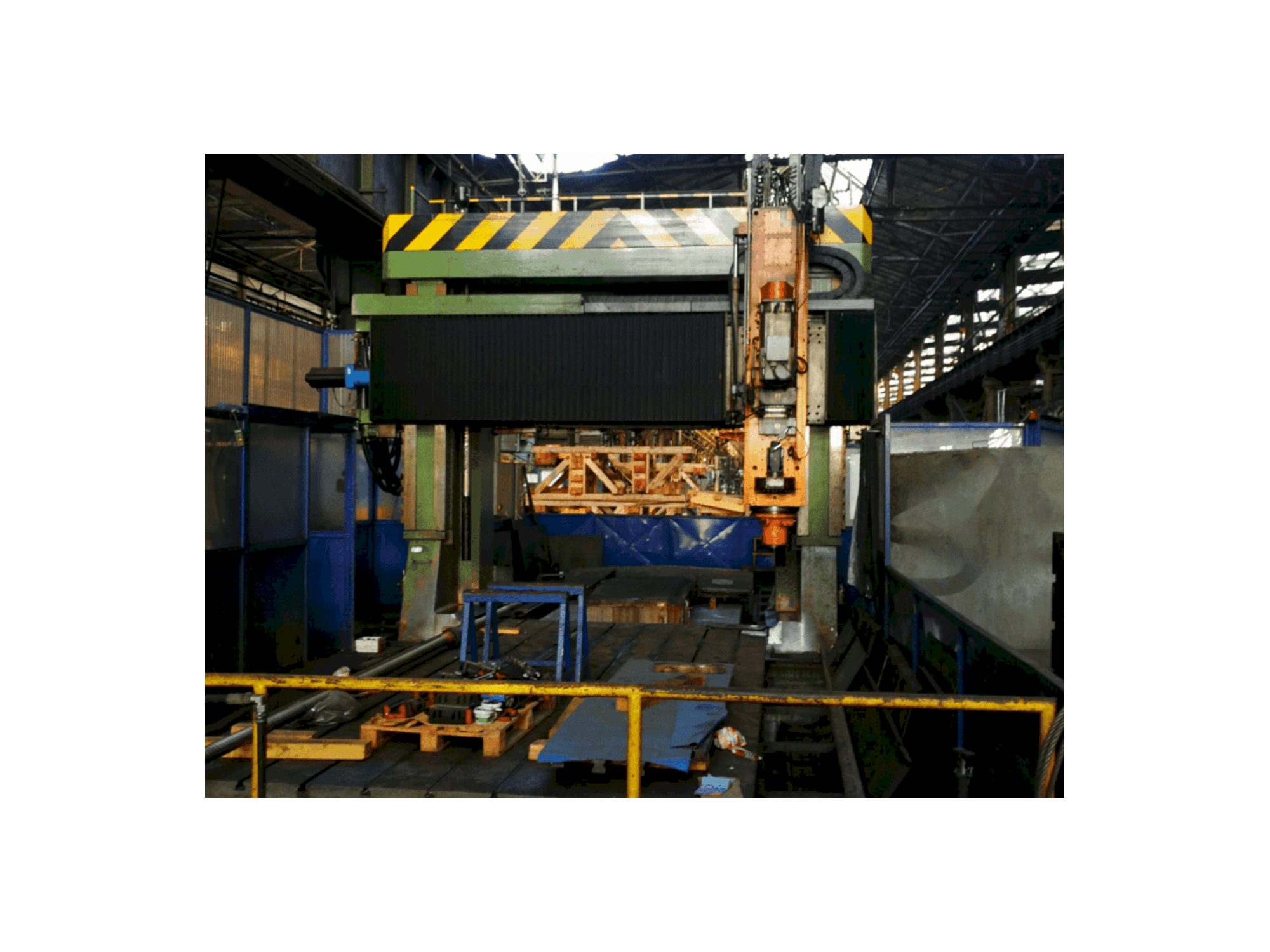

FFZ 30-60 Milling Machine

This FFZ 30-60 Milling Machine was manufactured in 2005. This 5 axis machine is operated through a Heidenhain 430 control unit. Its spindle speed goes up to 5000 rpm. It has a hinge belt conveyor with integrated overload protection along with many essential features.

Overview

brand: FFZ
year: 2005
MODEL: 30-60
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - FFZ 30-60

General Data

Measurements width: 6000mm
Measurements depth: 13200mm
Measurements height: 9800mm

Control Unit

Model: 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 50 kW

Movement

X-AXIS Movement: 6000mm
X-AXIS Feed Force: 20000 mm/min
Y-AXIS Feed Force: 20000 mm/min
Z-AXIS Movement: 2000mm
Z-AXIS Feed Force: 20000 mm/min
A-AXIS Feed Force: 2160°/min
C-AXIS Feed Force: 1980°/min

Workpiece

Workpiece weight: 6400 kg

Table

Outer length: 6000 mm
Outer width: 3000 mm

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Paint RAL-7035

Machine Benefits

Qualitative Machine Benefits

Tool changer, number of tools [pc] 30
Fork milling head, c-axis, a-axis 2 axes controlled
Electrical equipment 3x400 v, 50 hz
Main motor for milling spindle, siemens [kw] 50
Servomotors x-,y-,z-axis, siemens
Servo motors for tool changers, siemens
Electric cabinet air-conditioned
Coolant device
Belt filter system with high-pressure pump
Hinge belt conveyor [stk] 2

Technical Machine Benefits

Portal passage: height x width 3200 x 3370 mm
Distance between clamping surface and bottom edge of milling head min. /max. [mm] 0000 / 2500
X-axis travel machine table [mm] +/-6000
Y-axis travel milling unit [mm] 4 100
Z-axis pestle [mm] 1 500
Cross beam adjustment [mm] 1 500
Machine bed: total length approx. [mm] 13,000
Machine frame 2 stands, beams, traverse
Cross beams height-adjustable
Machine bed 1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
