Gildemeister - CTX 310V1 ecoTW-TUR-GIL-2007-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools

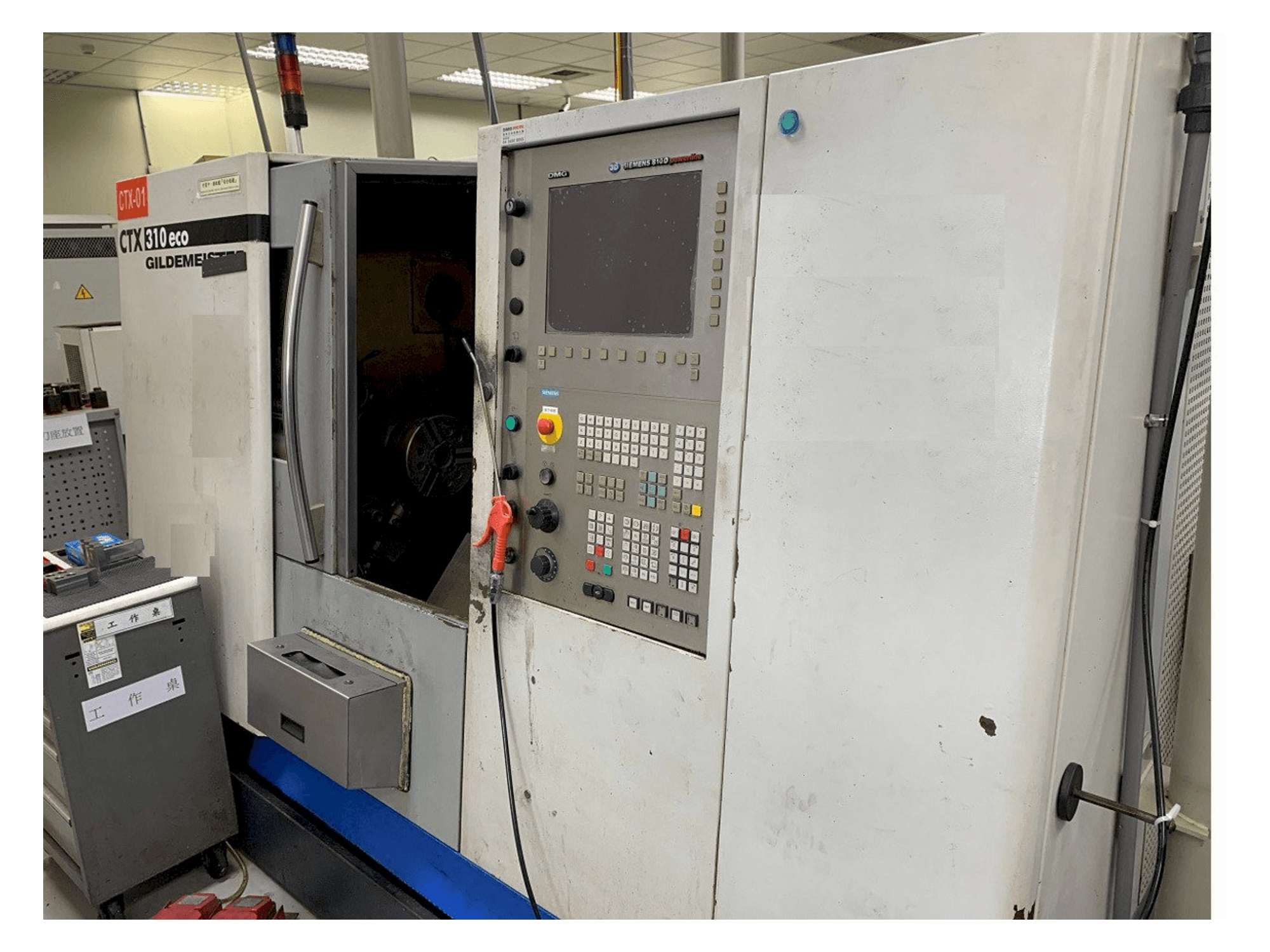

- Gildemeister CTX 310V1 eco Lathe
This Gildemeister CTX 310V1 eco Lathe was made in China in the year 2007. It has 52174 production hours. It is operated through a Siemens 810D Powerline control unit. This machine can perform with a spindle speed up to 5000 rpm.
Overview
- brand: Gildemeister
- year: 2007
- MODEL: CTX 310V1 eco
- production hours: 52174
- application type: Turning
- Location: Taiwan
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Gildemeister CTX 310V1 eco
Control Unit
- Control Brand: SIEMENS
- Control Model: 810D Powerline
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 1800 mm
- Machine Weight: 3200 kg
Movement
- X-axis Travel: 185 mm
- Z-axis Travel: 455 mm
Technical Specification
- Spindle Power: 10 kW
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Swing 330 mm
- Max. Turning length 580 mm
- Turning dia. Over face-slide 260 mm
- Max. Turning dia. 205 mm
- Max. Torque 115 / 86 nm
- Spindle diameter in front bearing 100 mm
- Usable bar diameter 52 mm
- Chucking diameter max. 210 mm
- Shank diameter 20 x 20 mm
- Tailstock adjustment 400 mm, intake pressure max. 4. 000 n
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
