This 6-axis Gildemeister GLD 25 swiss type turning machine was manufactured in 2003. It features a GE Fanuc Series 18i-T control, a maximum rpm of 8000, and can handle bar diameters up to 25mm. Equipped with a rotating guide bush, parts catcher, and additional coolant tank, it offers robust capabilities for precision turning. If you are looking to get high-quality turning capabilities consider the Gildemeister GLD 25 machine we have for sale. Contact us for more information.
Overview
- brand: Gildemeister
- year: 2003
- MODEL: GLD 25
- application type: Turning
- Location: Lithuania
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Gildemeister GLD 25
General Data
- Machine weight: 1850 kg
Control Unit
- Brand: FANUC
- Model: 18i-T
Main drive
- Spindle speed range: 8000 1/MIN
- Number of axis: 6
Movement
- X-AXIS Movement: 100 mm
- Z-AXIS Movement: 270 mm
Additional Equipment
- - Interface: RS232 / PCMCIA
- - Rotating Guide Bush
- - Parts Catcher
- - Coolant Tank (plus additional coolant tank)

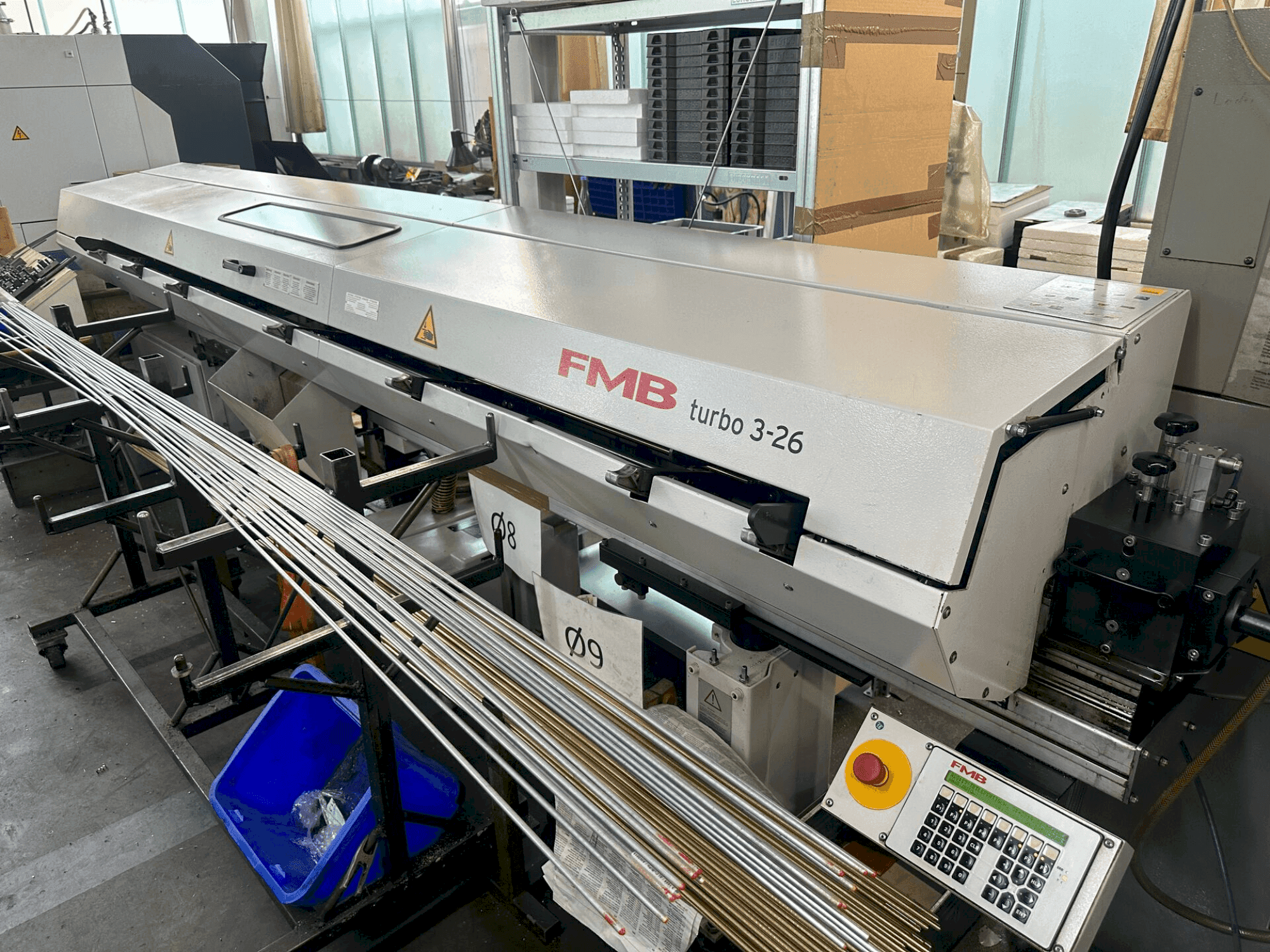

- - Hydraulic Bar-Push Brand/Type: FNB Turbo 3-26
- - Additional Turning Tool Holders
Additional Information
- Technical Machine Benefits:
- - Number of positions: 7
- - Number of motorized positions: 7
- - Live tools speed: 6000 rpm
- - Supply voltage: 400 v
- - Machine is still under power; inspection possible. However, no demonstration due to lack of operator. Documentation included
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
