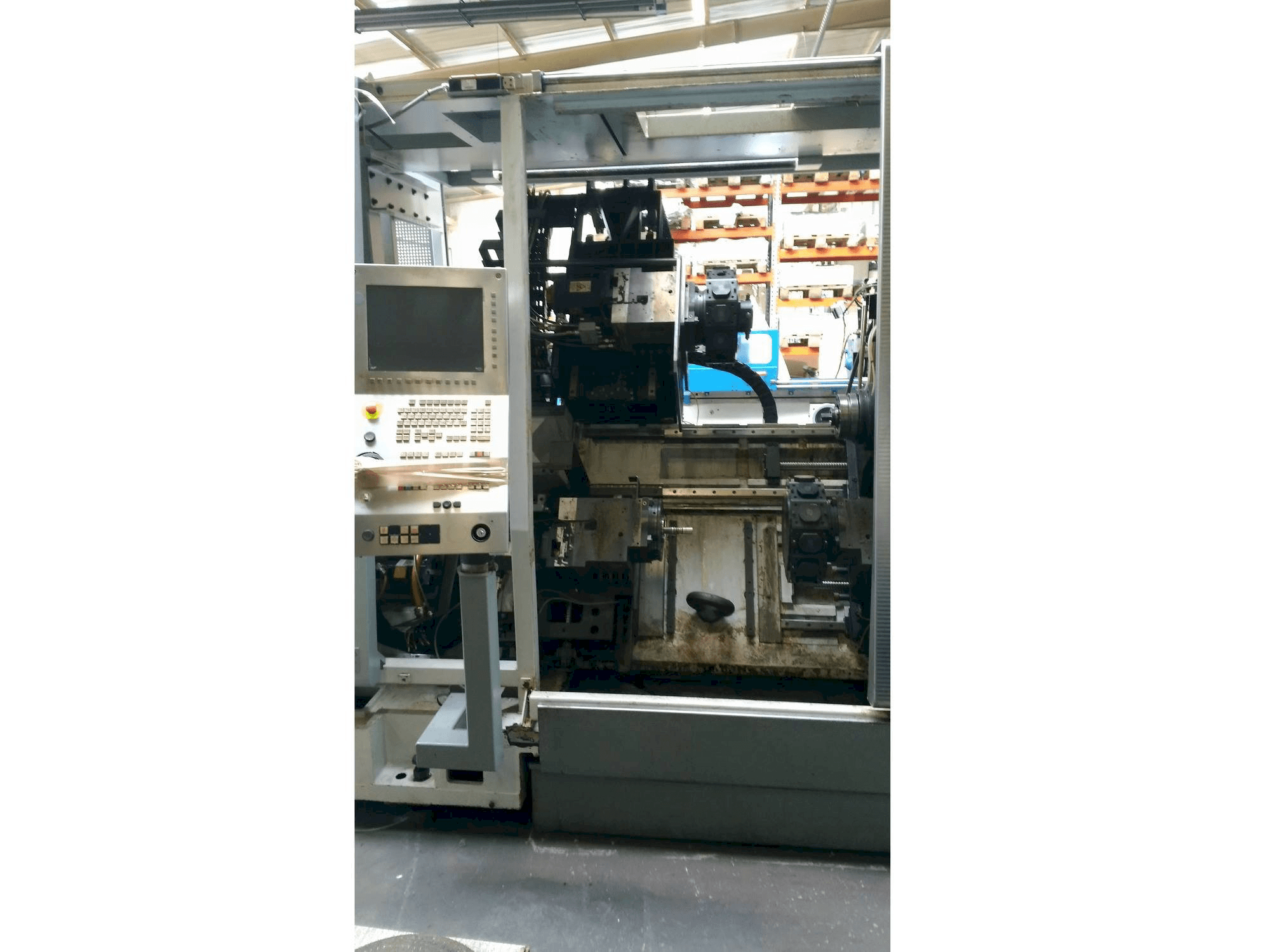

Gildemeister Sprint 65 Linear

This Gildemeister Sprint 65 Linear lathe machine was built in 2006 in Italy. The machine has a record of 32648, of which 14482 are operating hours. It is operated through a FANUC 310i control unit. This 10 axis machine has a main spindle speed up to 5000 rpm. It includes a bar feeder.

Overview

brand: Gildemeister
year: 2006
MODEL: Sprint 65 Linear
production hours: 32648
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Gildemeister Sprint 65 Linear

General Data

Measurements width: 9260 mm
Measurements depth: 2480 mm
Measurements height: 2700 mm
Machine weight: 11000 kg

Control Unit

Model: 310i
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 20 kw
Spindle bore: 75 mm
Number of axis: 10

Turret

Number of tool slots: 12

Media

Main electronic connection: 400 v 50 hz
Power consumption: 91 kva
Chip conveyor: Yes

Additional Equipment

- bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis x1: travel 165 mm; max. Speed 30 m/min
- - Axis z1: travel 220 mm; max. Speed 30 m/min
- - Axis w2: travel 690 mm; max. Speed 30 m/min
- - Axis x2: travel 165 mm; max. Speed 30 m/min
- - Axis z2: travel 150 mm; max. Speed 30 m/min
- - Axis x3: travel 165 mm; max. Speed 40 m/min
- - Axis z3: travel 678 mm; max. Speed 30 m/min
- - Axis y3: travel 80(+50/-30) mm; max. Speed 30 m/min

Extra information

- This machine has been partially disassembled. during disassembly it was found that the telescopic cover, wiper, float switch, central lubrication, toothed belt, lubrication lines and cables need to be replaced.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
