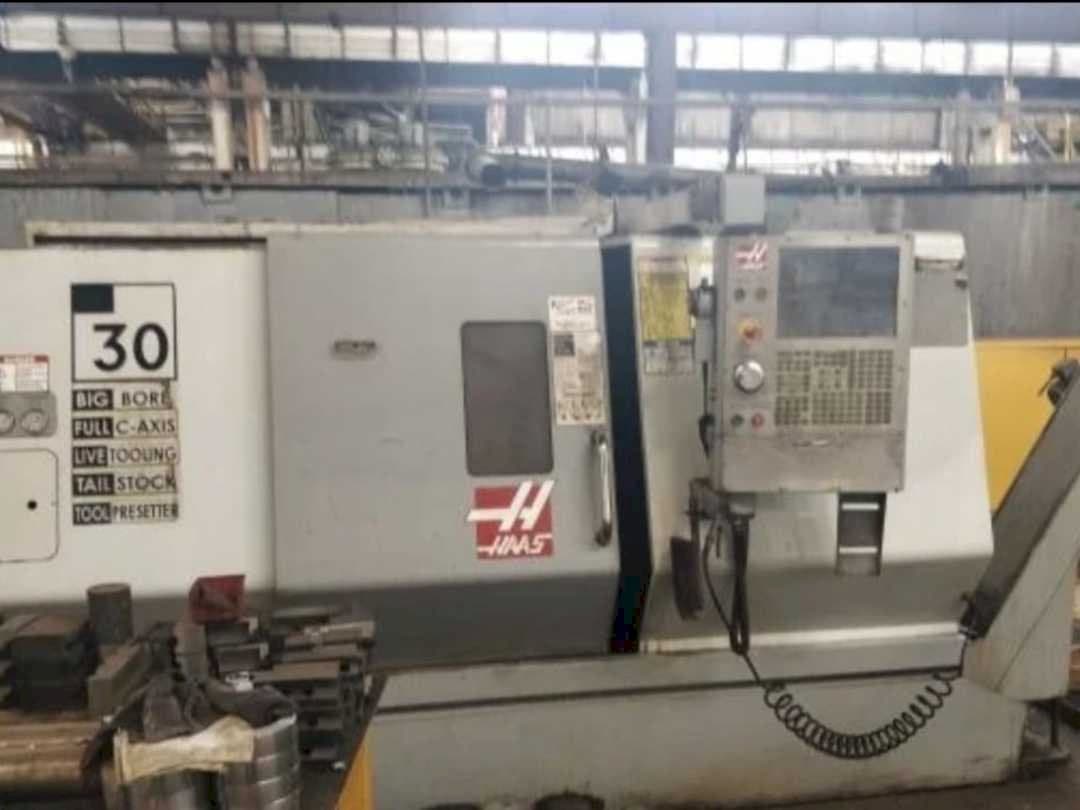

➤ HAAS SL-30THE Lathe - Used

This HAAS SL-30THE Lathe was manufactured in the year 2006 in the United States. It is operated through a control unit of the same brand. This machine can work with a spindle speed up to 3400 rpm.

Overview

brand: HAAS
year: 2006
MODEL: SL-30BTHE
application type: Turning
Location: Russia
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS SL-30BTHE

General Data

Measurements width: 3797 mm
Measurements depth: 1956 mm
Measurements height: 1880 mm
Machine weight: 7620 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3400 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 287 mm
Y-AXIS Movement: 864 mm

Media

Main electronic connection: 3x400 V 50 Hz
Power consumption: 8 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Set diameter: above the bed 762 mm, above the carriage 368 mm
- - The diameter of the 3 cam hydraulic chuck is 250 mm
- - Processing of bars up to 76 mm in diameter
- - Distance between centers 991 mm
- - Max. Processed diameter 432 mm
- - Max. Processing length 864 mm
- - Max. Turning length with standard tools 813 mm
- - Max. Torque 407 nm at 700 rpm
- - The hole in the spindle is 88. 9 mm
- - Hole in the hydraulic exhaust pipe of the cartridge 77 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
