HAAS ST 10

Photo Gallery

HAAS - ST 10ES-TUR-HAA-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

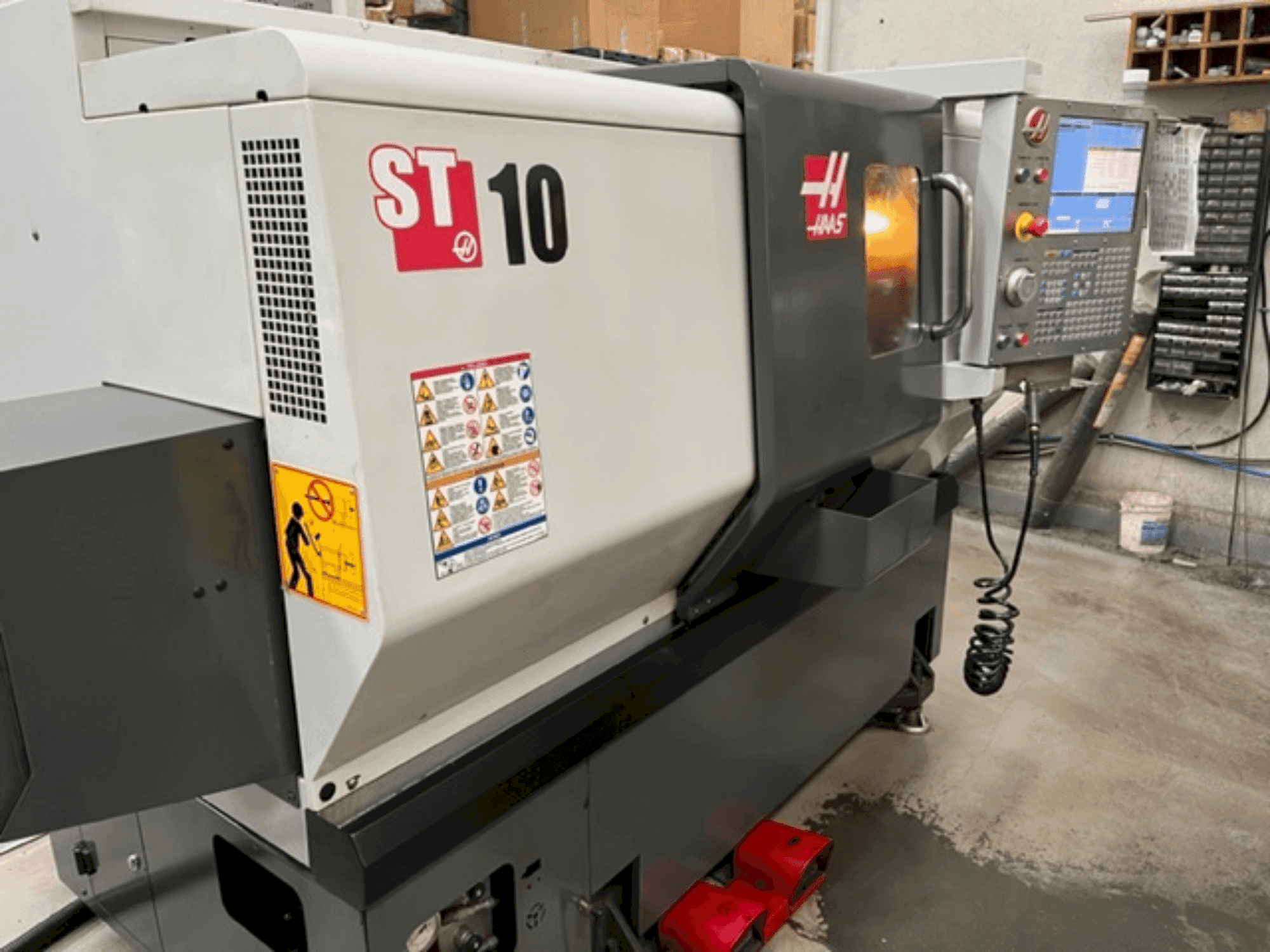

➤ Used HAAS ST 10 Horizontal Lathe For Sale | gindumac.com

This HAAS ST 10 was manufactured in 2015. A robust horizontal turning machine, it offers reliable performance for precision machining. Consider the opportunity to buy this HAAS ST 10 horizontal turning machine. Contact us for more information.

Overview

brand: HAAS
year: 2015
MODEL: ST 10
production hours: 474
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST 10

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 2

Media

Chip conveyor: Yes

Additional Equipment

- 15" color LCD monitor
- Memory lock key
- USB port
- Rigid tapping
- HPC 1 High-pressure coolant system, 300 psi (21 bar)
- PC1 Parts catcher
- SO 1 Spindle orientation
- VDIBAR1006ST Bar feeder for specific lathe
- 1.75 INSTALL KIT Bar feeder installation kit

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 15 hp (11. 2 kw) vector drive
- - Maximum capacity: 356 x 356 mm, 1. 75" (44 mm) diameter, 413 mm swing
- - Integrated 114-liter coolant tank with 1 hp (0. 6 kw) pump
- - 12-station turret with bolt-on tool holders
- - 1 vdi turret instead of standard bot turret
- - Standard toolholder kit with bolt-on or combined turret toolholder
- - Lts-1 hydraulic tailstock
- - Atp 1 automatic tool presetter

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
