HAAS ST-20SSY

Photo Gallery

HAAS - ST-20SSYTR-TUR-HAA-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

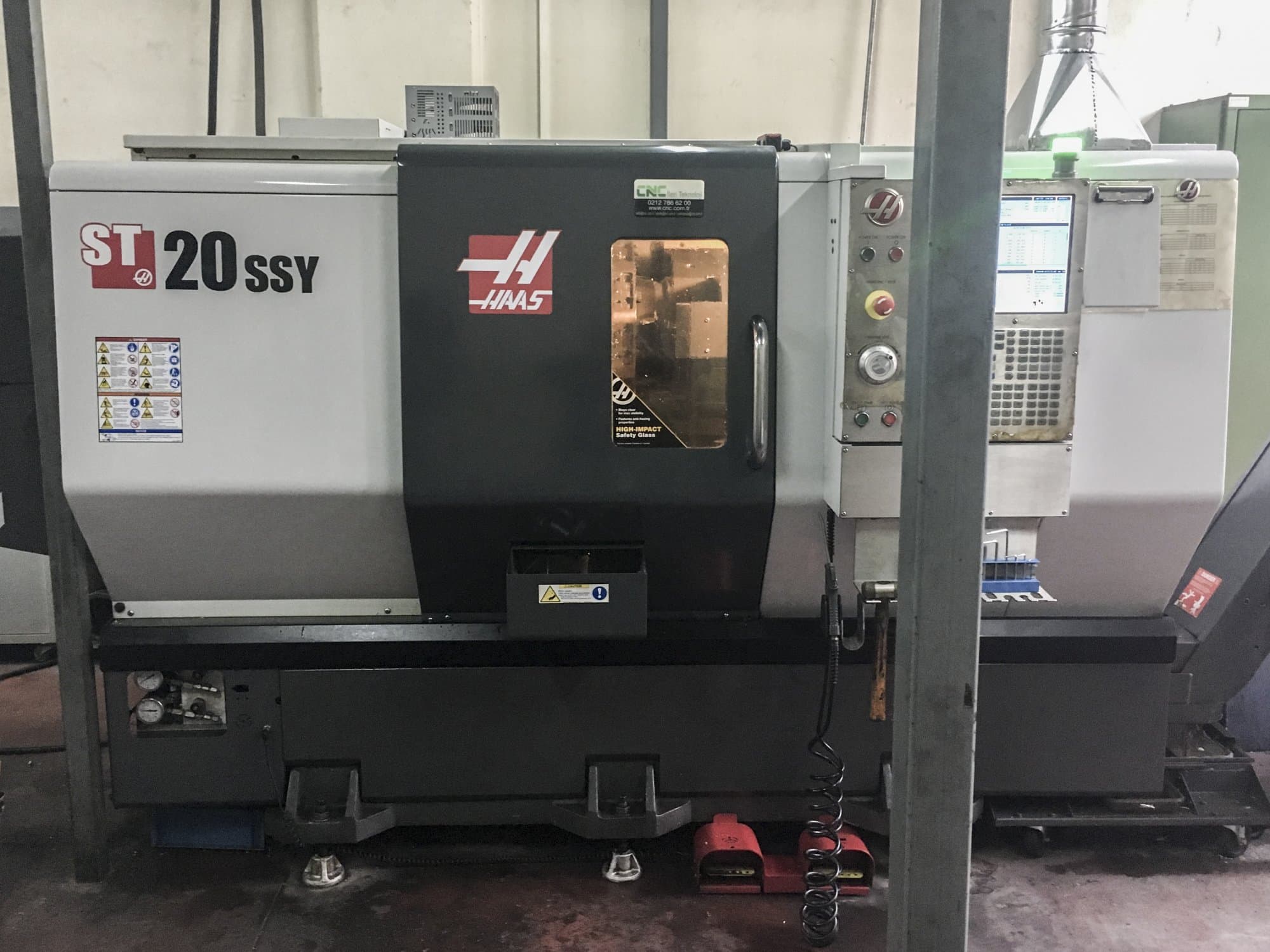

HAAS ST-20SSY Lathe

This HAAS ST-20SSY Lathe from 2014 was manufactured in the United States and has a working record of only 3783 production hours. Controlled through a HAAS Control unit and equipped with a powerful 24-Station Hybrid Turret for up to 12 live tools, this very flexible equipment is able to machine big workpieces. During the past, this machine mostly processed carbon steel and aluminium producing other machine components. Five live tools as well as an original Jorgensen chip conveyer are included in the delivery, a KAMSAN bar loader is available upon request.

Overview

brand: HAAS
year: 2014
MODEL: ST-20SSY
production hours: 3783
application type: Turning
Location: Turkey
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-20SSY

General Data

Measurements width: 4191 mm
Measurements depth: 2464 mm
Measurements height: 2057 mm
Machine weight: 4082 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/min
Spindle motor power: 22.4 kW

Movement

X-AXIS Movement: 236 mm
Y-AXIS Movement: 50.8 mm
Z-AXIS Movement: 533 mm

Workpiece

Workpiece drm: 50.8 mm
Workpiece x: 254 mm
Workpiece y: 521 mm

Turret

Number of turrets: 24-Station Hybrid (12 VDI; 12 BOT)

Media

Main electronic connection: 354-488 V / 50 Hz / 3 P
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
