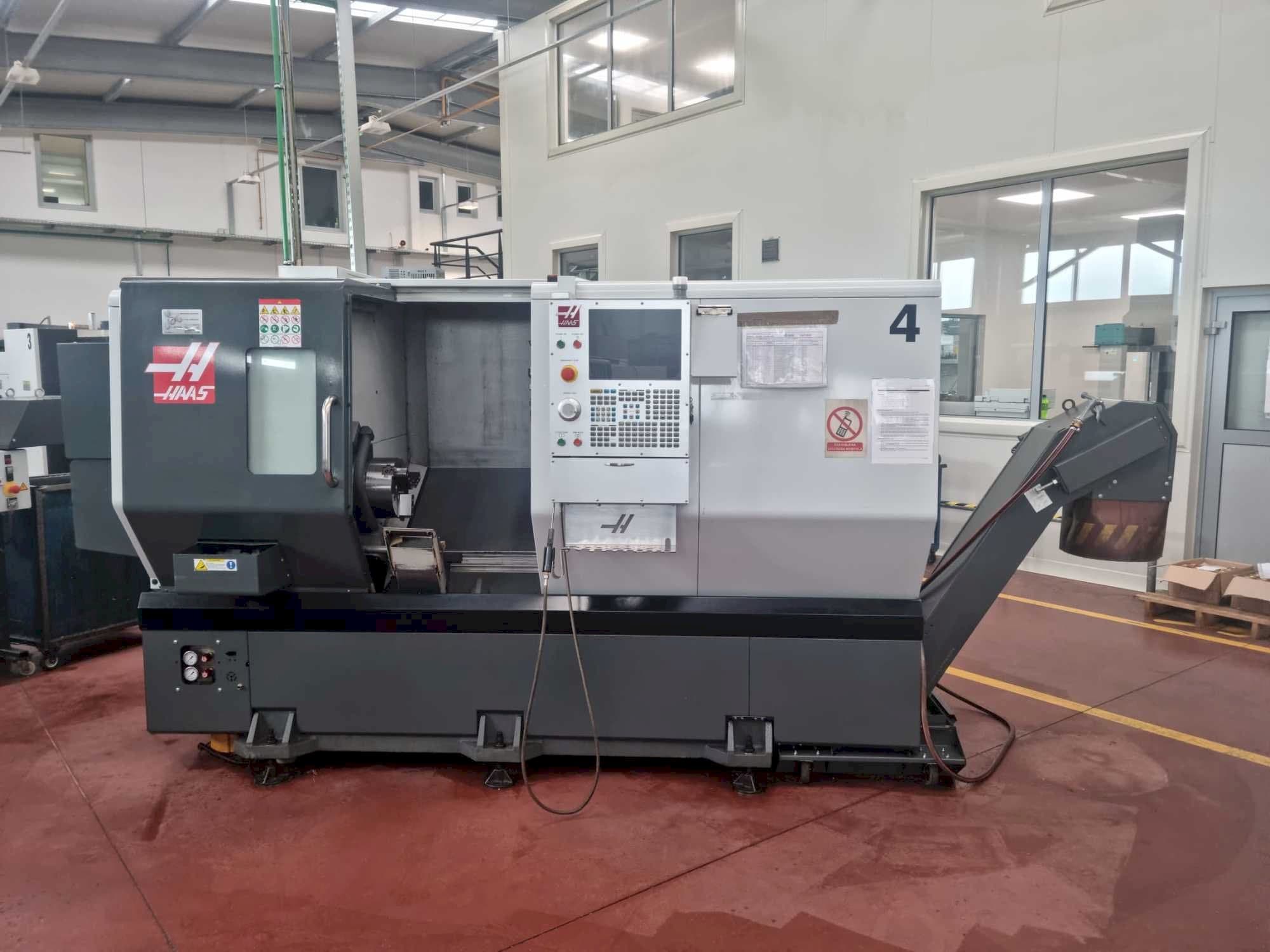

HAAS ST-30Y Lathe

This HAAS ST-30Y Lathe was built in 2019 in the United States and has 9840 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 3400 rpm.

Overview

brand: HAAS
year: 2019
MODEL: ST-30Y
production hours: 9840
application type: Turning
Location: Croatia
machine type: Turn-Mill Centre
control unit brand: HAAS

Technical Information - HAAS ST-30Y

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3400 1/MIN
Spindle motor power: 30 hp (22.4 kW) vector drive

Movement

X-AXIS Rapid traverse: 12 / 12 m/min
Y-AXIS Movement: +/- 50.8 mm
Y-AXIS Rapid traverse: 12 / 12 m/min
Z-AXIS Movement: 584 mm
Z-AXIS Rapid traverse: 24 m/min

Media

Chip conveyor: Yes

Additional Equipment

- Synchronized Tapping with Spindle Compensation
- C-Axis Driven Tooling, max. 6000 rpm
- Programmable Spindle Orientation
- High-Pressure Coolant Pump, 21 bar
- Automatic Tool Measurement
- Electrical Cabinet Cooling Unit
- Parts Catcher Arm
- Programmable Tailstock
- Macro Functions - Subprogram Creation
- Media Display, 25 Micron Coolant Filtration

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: Ø457 mm
- - Max turning capacity (over bed): Ø806 mm
- - Chuck size: Ø254 mm
- - Tool turret: bmt65 with 12 stations
- - Coolant tank capacity: 208 l
- - Control device: 15" color lcd monitor, usb port, 1 gb program memory

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
