HAAS - UMC-750PL-MIL-HAA-2013-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS UMC - 750

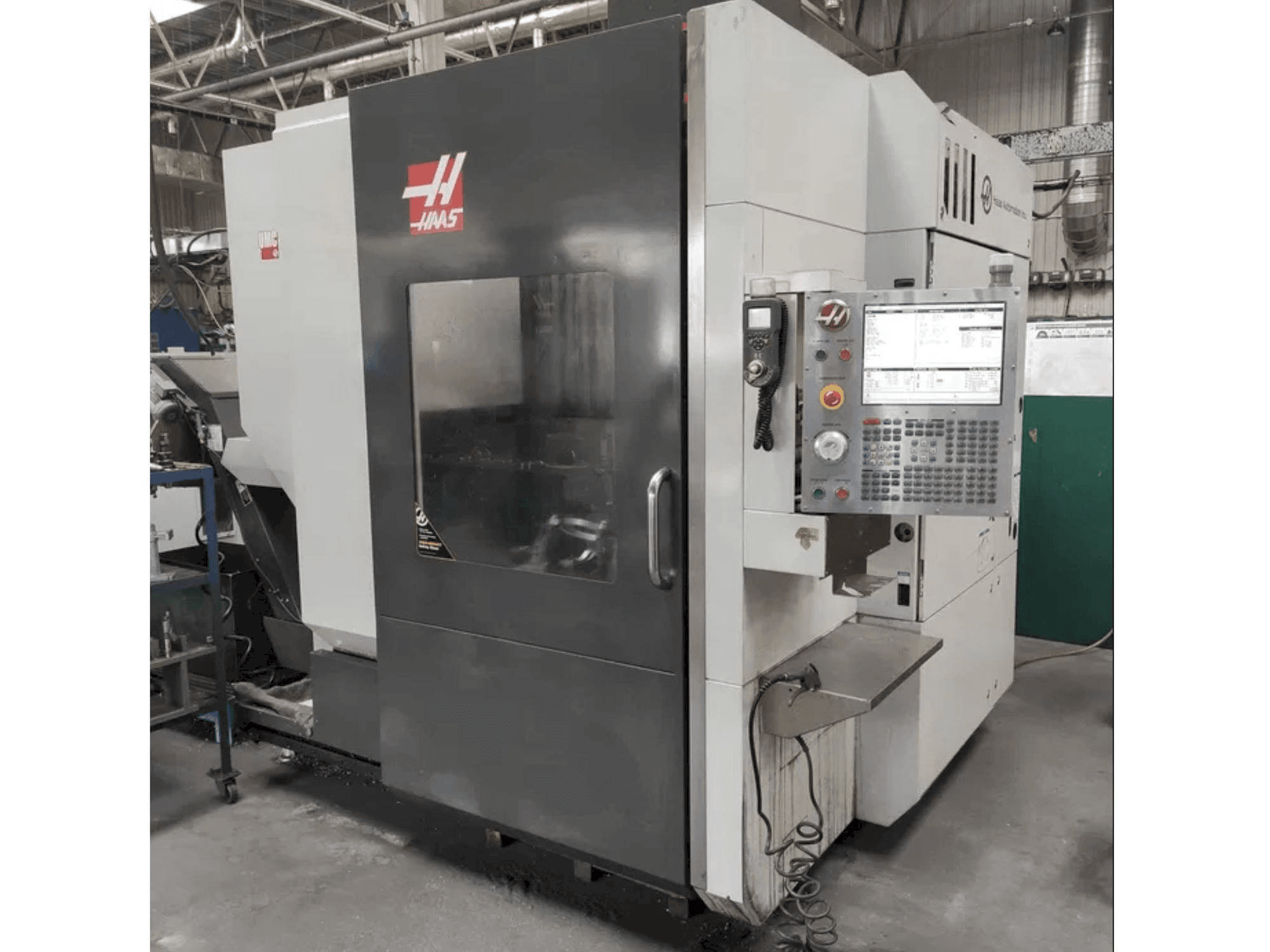

This HAAS UMC - 750 Universal Machining Center was made in 2013 in the United States. This has accumulated a working record of approximately 10000 hours. It is operated through a control unit of the same brand. This 5 axis machine in good working conditions can work with a spindle speed up to 8100 rpm. It comes with a 630 x 500 mm dual-axis trunnion table. This machine is ready for tests and has its full documentation available.
Overview
- brand: HAAS
- year: 2013
- MODEL: UMC-750
- production hours: 10000
- application type: Milling
- Location: Poland
- machine type: Universal Machining Centre
- control unit brand: HAAS
Technical Information - HAAS UMC-750
General Data
- Measurements width: 3048 mm
- Measurements depth: 1445 mm
- Measurements height: 2870 mm
- Machine weight: 8165 kg
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 8100 1/MIN
- Spindle motor power: 22.4 kW
- Tool taper: BT40
- Number of axis: 5
Movement
- X-AXIS Movement: 762 MM
- X-AXIS Rapid traverse: 25.4 m/min
- Y-AXIS Movement: 508 mm
- Y-AXIS Rapid traverse: 25.4 m/min
- Z-AXIS Movement: 508 mm
- Z-AXIS Rapid traverse: 25.4 m/min
Table
- Outer length: 630 MM
- Outer width: 500 mm
- Table load: 300 kg
Tools
- Max weight: 5.4 kg
- Max tool diameter: 76 mm
- Max tool length: 406 mm
Media
- Main electronic connection: 360-480 V / 50-60 Hz
Additional Information
- Technical Machine Benefits:
- - B-axis tilt: +110 deg to -35 deg; c-axis: 360 deg
- - Dual-axis trunnion table
- - Max torque: 122 nm
- - Drive system: inline direct-drive
- - Tool changer type: smtc
- - Capacity: 40+1 pcs
- - Time of changing tools: 2. 8 sec
- Qualitative Machine Benefits:
- - Machine in very good working condition
- - Ready for tests
- - Full documentation available.
- - There are no any tooling in clouded in the offer.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
