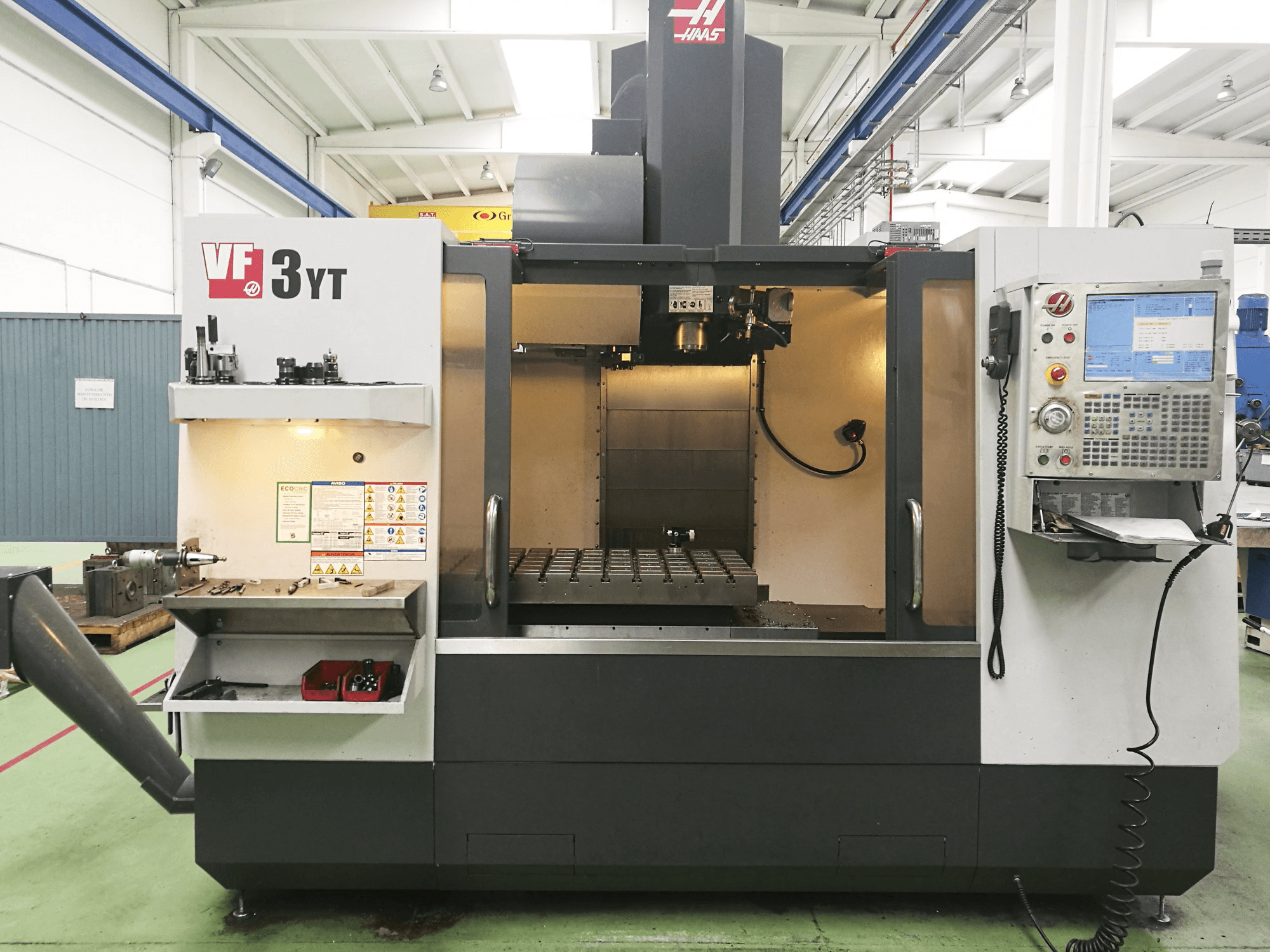

HAAS VF-3YT Machining Center

This HAAS VF-3YT Machining Center from 2011 has an operating record of only 292 hours. Managed by a HAAS MOCON 17.04 (M18.00B Release) Control Unit, the machine stands out for its special features, such as: Minimal lubrication system, Intelligent power management, Servo off and Hydraulic off timer settings, Conveyor cycling and an Energy-saving display functionality. As additional equipment, a 4th Axis is included.

Overview

brand: HAAS
year: 2011
MODEL: VF-3YT
production hours: 292
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-3YT

General Data

Measurements width: 3264 mm
Measurements depth: 2591 mm
Measurements height: 2616 mm
Machine weight: 6350 kg

Control Unit

Brand: HAAS
Model: MOCON 17.04
Release: M18.00B

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/min
Spindle motor power: 15 kW
Tool taper: 40 Taper

Movement

X-AXIS Movement: 1016 mm
X-AXIS Working Feed: 16.5 m/min
X-AXIS Rapid traverse: 25.4 m/min
X-AXIS Accuracy: 0.0051
Y-AXIS Movement: 660 mm
Y-AXIS Working Feed: 16.5 m/min
Y-AXIS Rapid traverse: 25.4 m/min
Y-AXIS Accuracy: 0.0051
Z-AXIS Movement: 635 mm
Z-AXIS Working Feed: 16.5 m/min m
Z-AXIS Rapid traverse: 25.4 m/min
Z-AXIS Accuracy: 0.0051

Workpiece

Workpiece weight: 1588 kg

Table

Outer length: 1372 mm
Outer width: 635 mm
TSlots size: 15.875 mm

Tools

Slots in storage: 24+1
Max weight: 5.4 kg
Max tool diameter: 89 mm

Media

Main electronic connection: 360-480 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
