HAAS VF-5/40XT

Photo Gallery

HAAS - VF-5/40XTTR-MIL-HAA-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

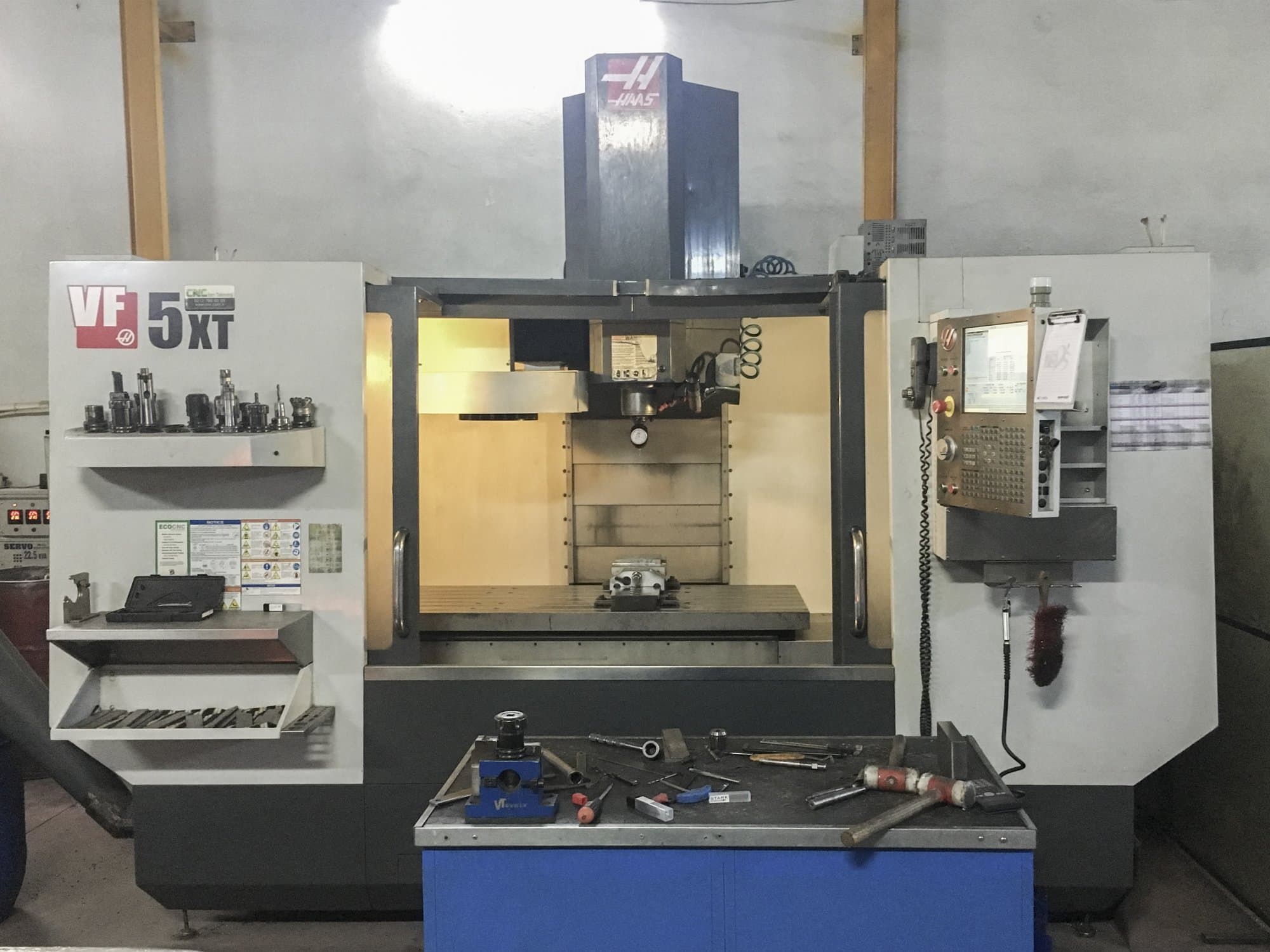

HAAS VF-5/40XT Machining Center

This HAAS VF-5/40XT Machining Center from 2011 has a working record of 12638 production hours and is equipped with an HAAS Control unit. This strong and solid equipment, which has mainly processed carbon and low alloy steel during the past, stands out due to its wide Z-axis range and maximum workpiece weight and has been regularly inspected by an authorized service provider.

Overview

brand: HAAS
year: 2011
MODEL: VF-5/40XT
production hours: 12638
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-5/40XT

General Data

Measurements width: 4470 mm
Measurements depth: 3200 mm
Measurements height: 3073 mm
Machine weight: 7100 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 8100 1/min
Tool taper: 40

Movement

X-AXIS Movement: 1524 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1575 mm
Outer width: 584 mm

Tools

Number of stations: 20
Max weight: 5.4 kg
Max tool diameter: 89 mm

Media

Main electronic connection: 360/480 V / 50 Hz
Power consumption: 28 kVA
Chip conveyor: Yes
Internal cooling: Yes
Dielectic tank: 360 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
