HAAS VF-5

Photo Gallery

HAAS - VF-5GB-MIL-HAA-2015-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

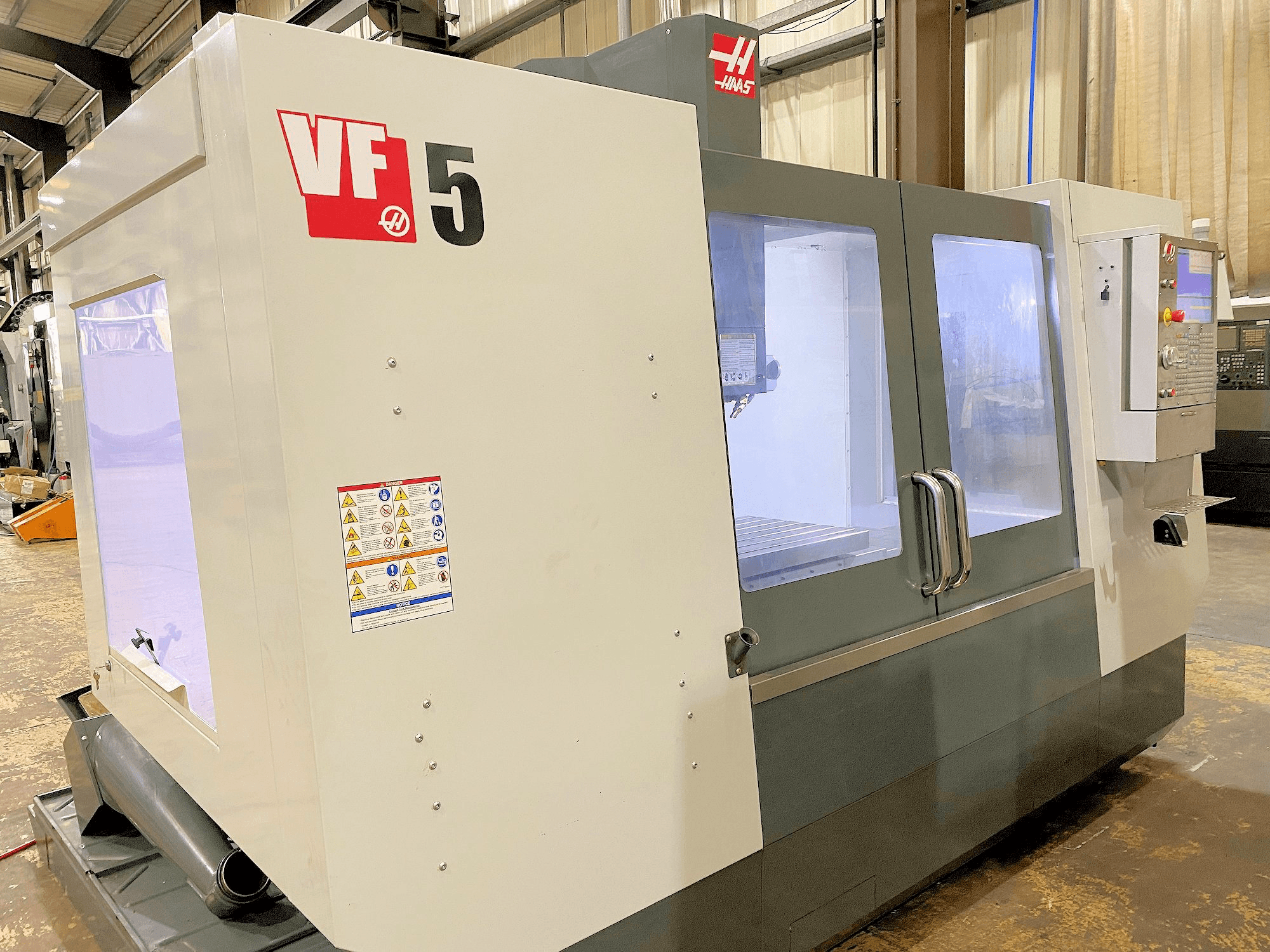

HAAS VF-5 Vertical Machining Center

This HAAS VF-5 Vertical Machining Center was manufactured in the year 2015 in the United States. It has been working for only 8659 hours. It is equipped with a control unit of the same brand. This 3 axis machine operates with a spindle speed up to 8100 rpm. It is in very good working conditions.

Overview

brand: HAAS
year: 2015
MODEL: VF-5
production hours: 8659
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-5

General Data

Measurements width: 4270 mm
Measurements depth: 2580 mm
Measurements height: 2770 mm
Machine weight: 5761 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 8100 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1321 mm
Outer width: 584 mm

Tools

Slots in storage: 20
Max weight: 5,4 kg
Max tool diameter: 89 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min - max height under spindle: 178 - 813 mm
- - Rapid feedrates: 18 m/min
- - Spindle motor power: 40hp
- - Tool change time (chip to chip): 4. 5 seconds
- - Coolant, interlocked guards, low volt light
- - Programmable coolant nozzle, remote hand wheel, usb port, swarf auger
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
