➤ Used HAAS VM-6 - Vertical Center For sale | gindumac.com

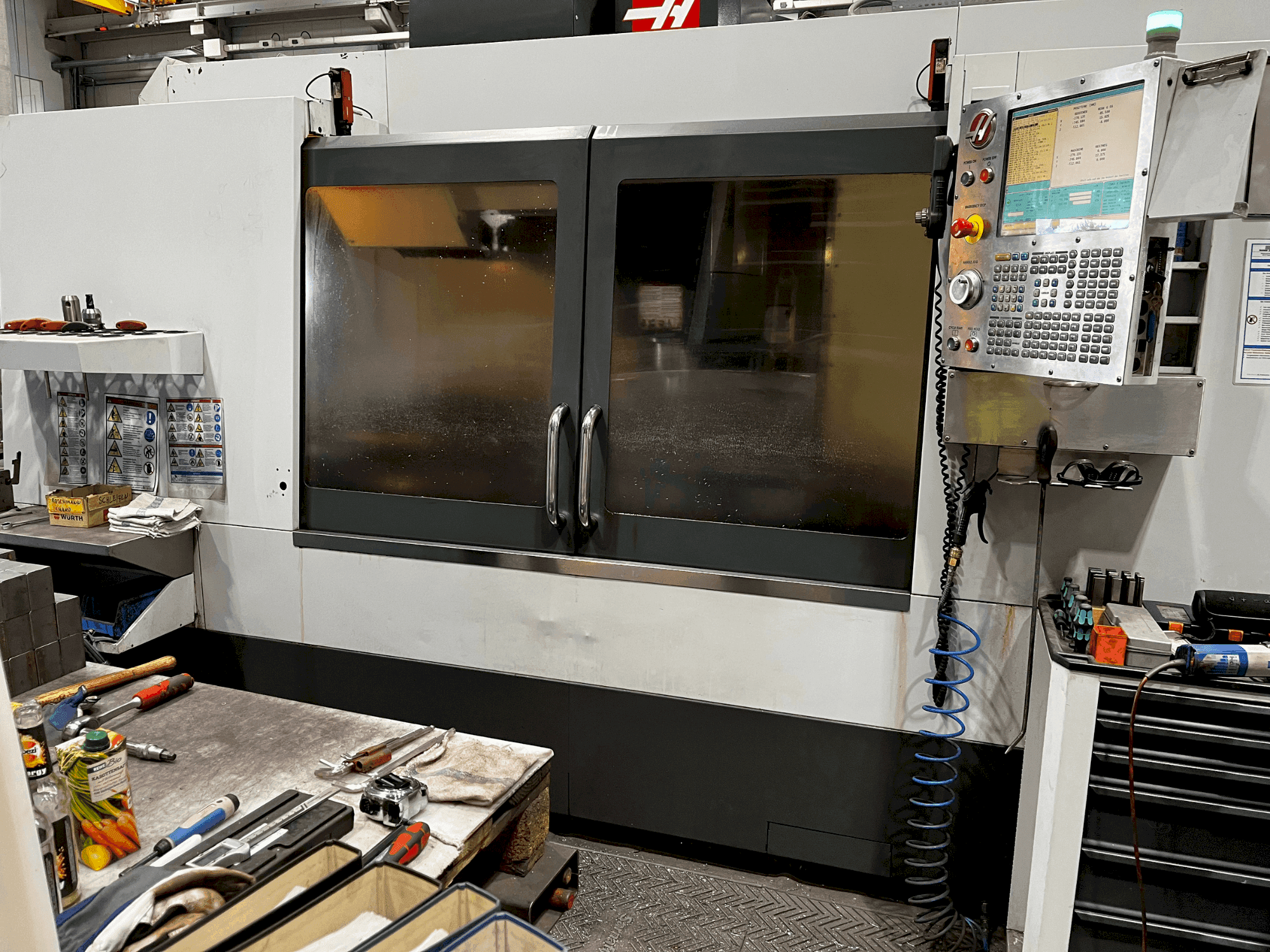

This 3-axis HAAS VM-6 vertical machining center was manufactured in 2012. It features a robust 1626 mm X-axis, 813 mm Y-axis, and 762 mm Z-axis travel, with a maximum spindle speed of 12000 rpm and a torque of 122.0 Nm. The table can support up to 1814 kg, and the tool changer has a capacity of 30+1. Ideal for precision machining, the HAAS VM-6 machine we have for sale is a significant asset. Contact us for further details.

Overview

brand: HAAS
year: 2012
MODEL: VM-6
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - HAAS VM-6

General Data

Machine weight: 10887 KG

Main drive

Number of spindles: 2
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 3

Movement

X-AXIS Movement: 1626 MM
Y-AXIS Movement: 813 MM
Z-AXIS Movement: 762 MM

Table

Outer length: 1626 mm
Outer width: 711 mm
TSlots size: 15.90 mm to 16.00 mm
Table load: 1814 kg

Additional Information

Additional equipment

Feedrates: Max Cutting: 12.7 m/min / Rapids on X: 15.2 m/min / Rapids on Y: 15.2 m/min / Rapids on Z: 15.2 m/min
Axis Motors : Max Thrust X: 15124 N / Max Thrust Y: 18238 N / Max Thrust Z: 24910 N
Tool Changer : Type: SMTC / Capacity: 30+1 / Max Tool Diameter (full): 64 mm / Max Tool Diameter (adjacent empty): 127 mm / Max Tool Length: 406 mm / Max Tool Weight: 5.4 kg / Tool-to-Tool Time: 2.80 s (average) / Chip-to-Chip Time: 3.60 s (average)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
