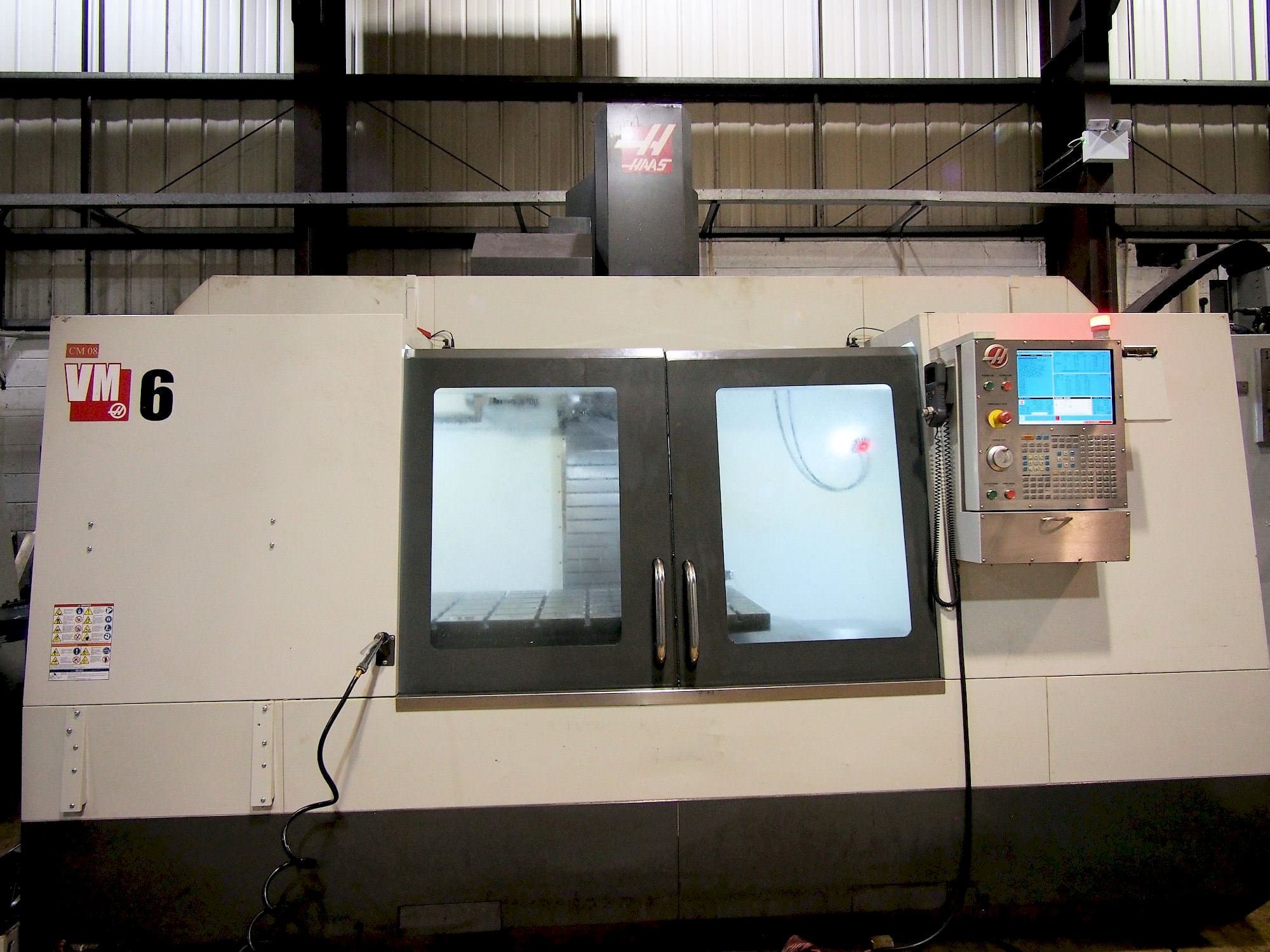

➤ Used HAAS VM-6 - 2015 - Vertical Machining Center

This HAAS VM-6 Vertical Machining Center was manufactured in the United States in the year 2015. It has only worked 6784 production hours since then. It is equipped with a HAAS control unit. This machine can work with a spindle speed up to 12000 rpm. It includes an Hard Disk of 1GB, a spindle probe, and a tool setter. It presents very good conditions.

Overview

brand: HAAS
year: 2015
MODEL: VM-6
production hours: 6784
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VM-6

General Data

Measurements width: 4521 mm
Measurements depth: 2921 mm
Measurements height: 3277 mm
Machine weight: 10900 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1626 mm
Y-AXIS Movement: 813 mm
Z-AXIS Movement: 762 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1626 mm
Outer width: 711 mm

Tools

Slots in storage: 30
Max weight: 5,4 kg
Max tool diameter: 64/127 (next empty) MM
Max tool length: 406 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Low hours
Very good condition

Technical Machine Benefits

Spindle motor power 22 kw
Rapid feedrates 15. 2 m/min.
Min. -max. Height under spindle 102-864 mm
Remote hand wheel
Hd capacity 1 gb
Coolant
Wips system (wireless intuitive probing system)
Programmable coolant nozzle
High speed machining function
Spindle probe + tool setter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
