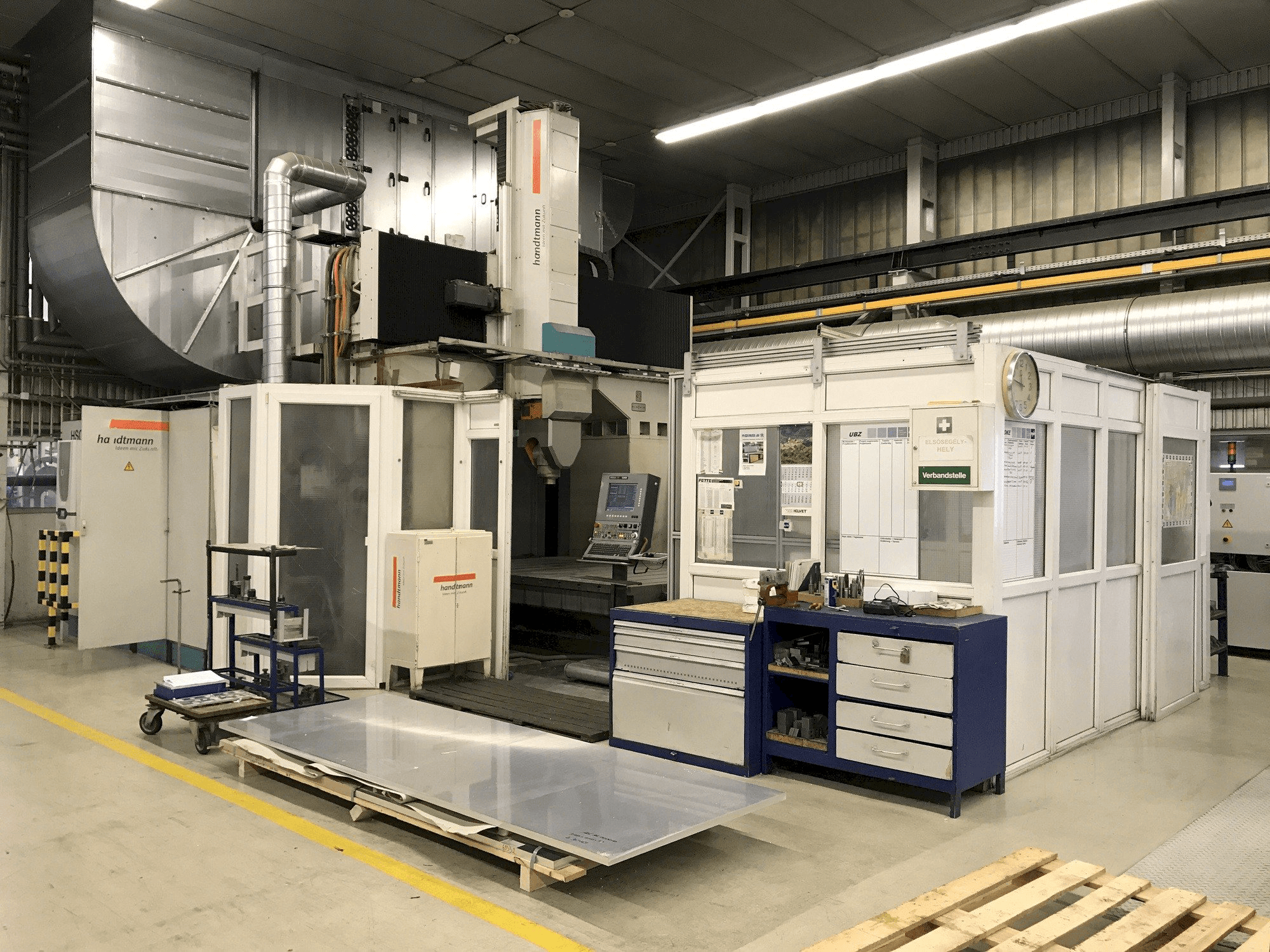

Front view of Handtmann UBZ NT 300/200 T2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Handtmann UBZ NT 300/200 T2

Photo Gallery

Handtmann - UBZ NT 300/200 T2HU-MIL-HAN-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Handtmann UBZ NT 300/200 T2 Vertical Machining Center

This Handtmann UBZ NT 300/200 T2 Vertical Machining Center was made in Germany in 2003. It has a production history of 6605 working hours. It is equipped with a Fidia C20 control unit. This machine can work with a spindle speed up to 20000 rpm. It has a new spindle that was replaced in 2017.

Overview

brand: Handtmann
year: 2003
MODEL: UBZ NT 300/200 T2
production hours: 6605
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: FIDIA

Technical Information - Handtmann UBZ NT 300/200 T2

General Data

Measurements width: 10000 mm
Measurements depth: 7200 mm
Measurements height: 5900 mm
Machine weight: 40000 kg

Control Unit

Model: C20
Brand: FIDIA

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN

Movement

X-AXIS Movement: 4200 mm
Y-AXIS Movement: 2750 mm
Z-AXIS Movement: 1350 mm
A-AXIS Movement: '+ 125°, - 95° MM
C-AXIS Movement: '+/- 275° MM

Workpiece

Workpiece x: 3000 mm
Workpiece y: 2000 mm
Workpiece weight: 7000 kg

Table

Outer length: 3000 mm
Outer width: 2000 mm

Tools

Slots in storage: 20
Max weight: 4 kg
Max tool diameter: 125 mm
Max tool length: 400 mm
Type of tool holder: HSK63

Media

Main electronic connection: 400 V
Power consumption: 125 A

Additional Information

Machine Benefits

Technical Machine Benefits

Large table size
Wide range of movement
New spindle, only 6605 hrs in this new spindle, it was replaced in february 2017

Machine History

Industries

Automotive

End product

Large aluminum tools for automotive industry (for foam and injection moulding)

Material type

Aluminium

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
