HELLER - MCH 350DE-MIL-HEL-2006-00002

Name: HELLER MCH 350
Brand: HELLER
SKU: DE-MIL-HEL-2006-00002
Price: 138000 EUR
Availability: InStock

138,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HELLER MCH 350 For sale | gindumac.com

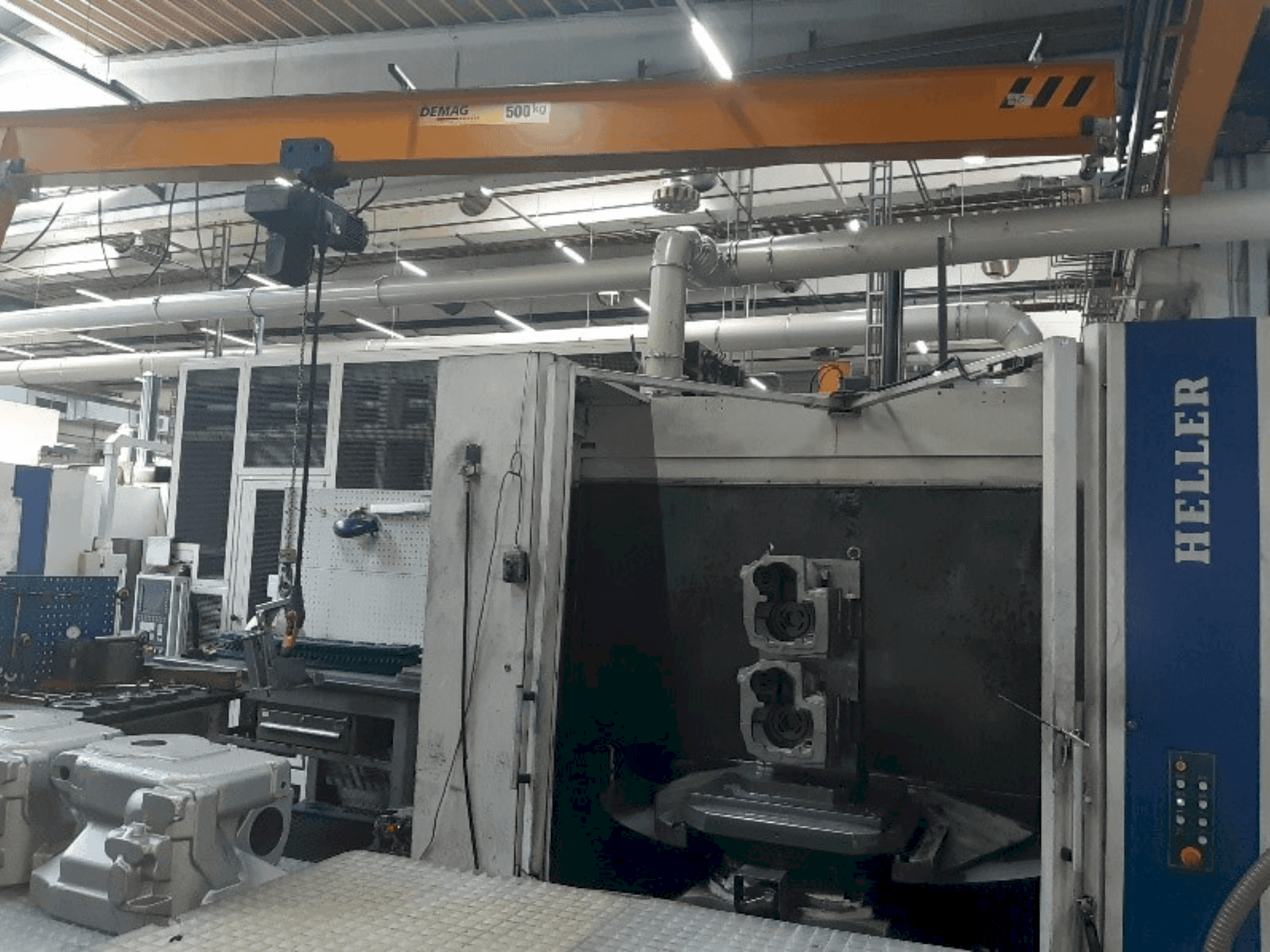

This 4-axis HELLER MCH 350 was manufactured in 2006, featuring a Siemens 840D PL control system and a robust spindle capable of 7,000 rpm. It includes a HSK 100 tool clamping system and a large magazine with 234 slots. The machine offers a substantial working area of 1250 x 1000 x 1000 mm and a pallet size of 800 x 800 mm. For more information about this machining centre, please reach out to us.

Overview

brand: HELLER
year: 2006
MODEL: MCH 350
production hours: 48659
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER MCH 350

Control Unit

Model: 840D PL
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 7000 rpm 1/MIN
Spindle motor power: 43 kW
Tool taper: HSK 100
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 800 mm
Outer width: 800 mm
Number of tslots: 234

Media

Internal cooling: Yes

Additional Information

Additional equipment

KNOLL Coolant System, VRF 250, IKZ 50 bar
Rotary table with 360,000° x 0.001° positioning
Infrared receiver for measuring probe (BLUM)
Multi-spindle head mount
Quick drill breakage control (SBBK)
Code chip for tools runtime and quantity recording
Integrated process monitoring (IPM)
Disk blowing device for operator door
Evacuation strategy

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
