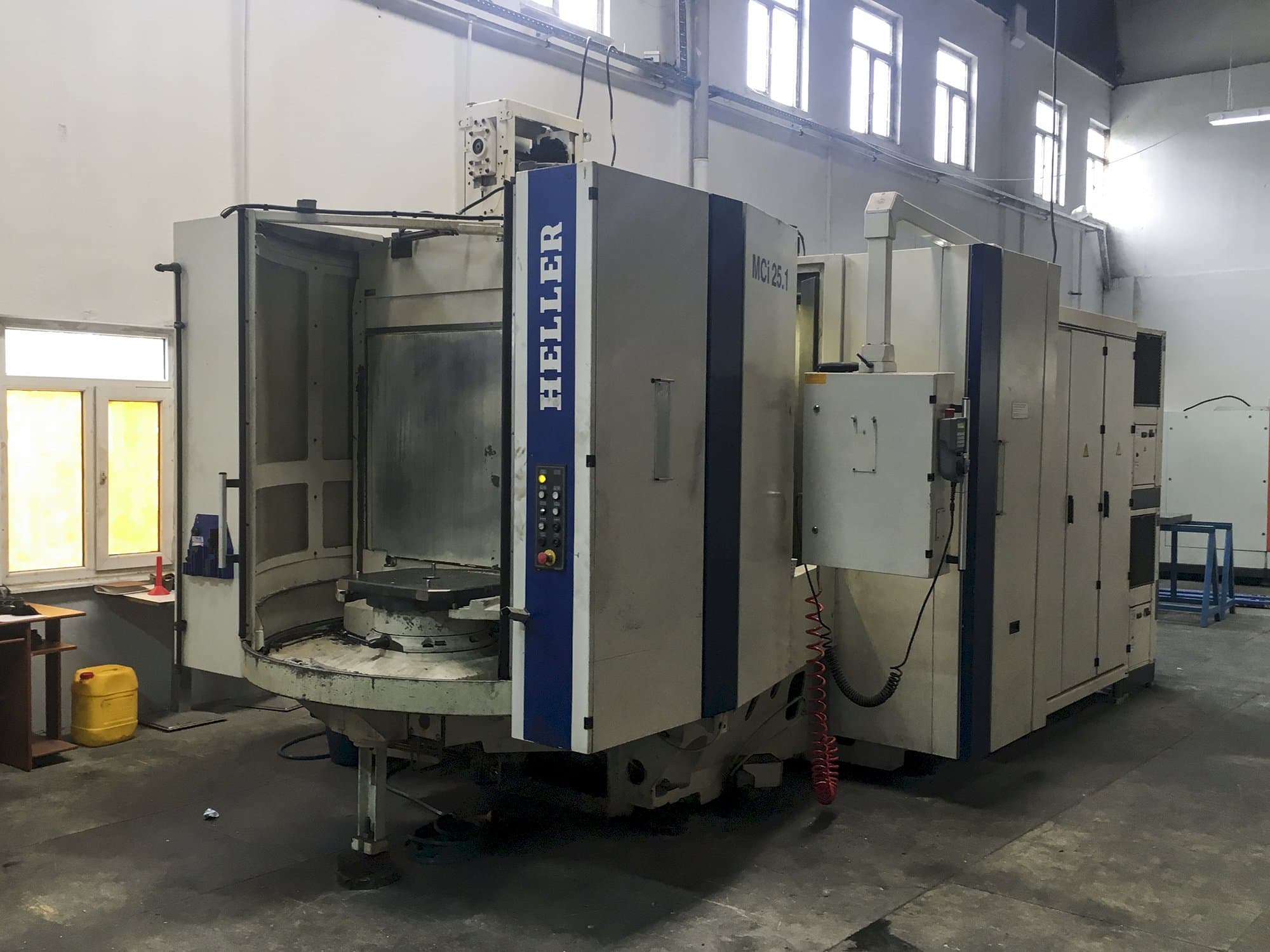

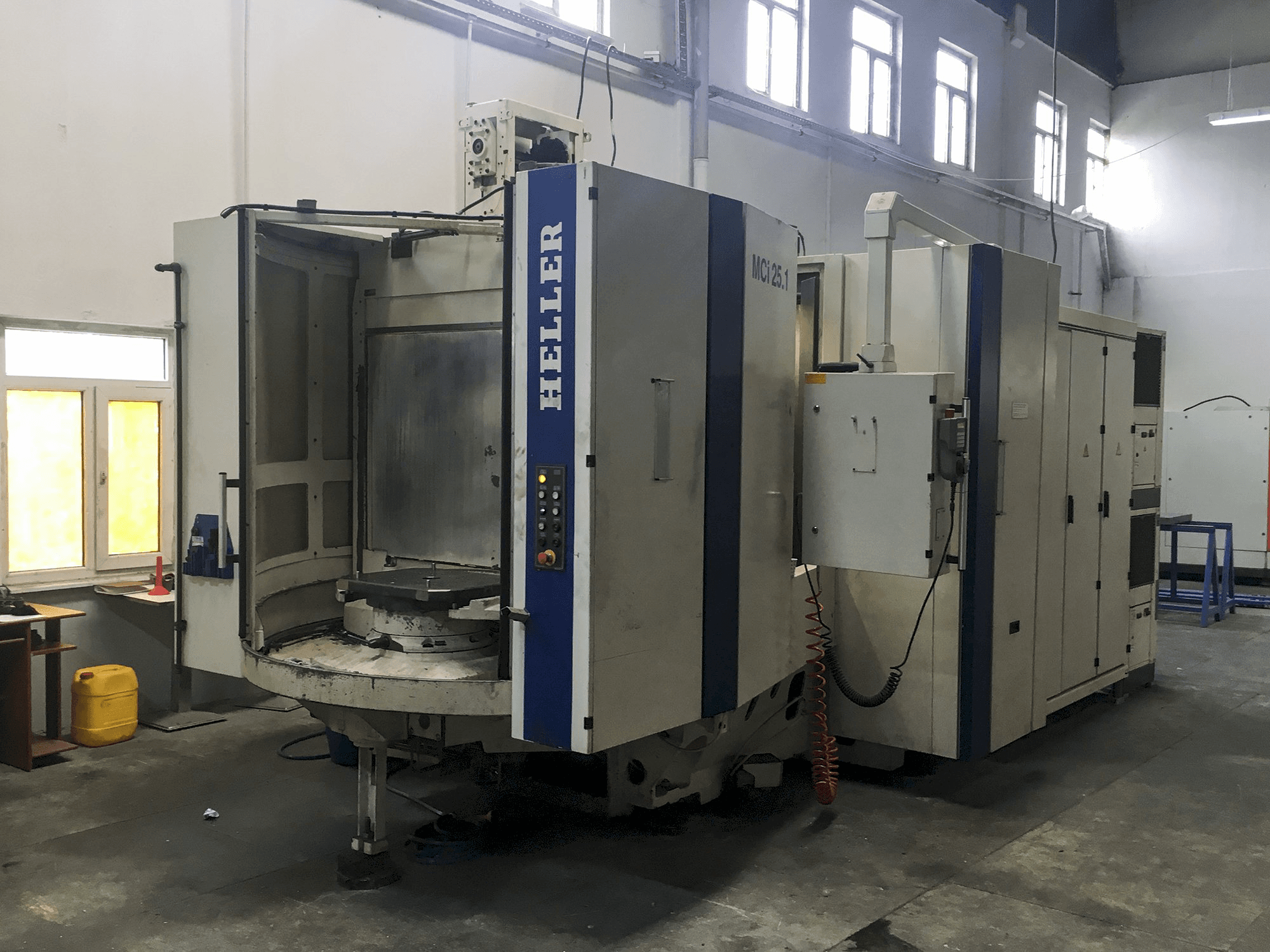

HELLER MCi 25 Horizontal Machining Center

This HELLER MCi 25 Horizontal Machining Center from 2005 was made in Germany and has been operative for approximately 78000 production hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this machine has mainly been producing tool and machine components for the automotive industry. With 2 Control units and 2 pallets which are exchanged in ~14 seconds, this machine is suitable for serial production.

Overview

brand: HELLER
year: 2005
MODEL: MCi 25
production hours: 78000
application type: Milling
Location: Turkey
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER MCi 25

General Data

Measurements width: 6500 mm
Measurements depth: 3500 mm
Measurements height: 3600 mm
Machine weight: 19000 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 16000 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm
B-AXIS Movement: 360 / 0.001° MM

Workpiece

Workpiece drm: 900 mm
Workpiece weight: 800 kg

Table

Outer length: 500 mm
Outer width: 630 mm

Tools

Slots in storage: 80
Max weight: 12 kg
Max tool diameter: 150 mm
Max tool length: 400 mm
Type of tool holder: HSK 63

Media

Main electronic connection: 400 V
Power consumption: 70 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Cooling System
- Chip Conveyer KNOLL
- Infrared Measuring Probe RENISHAW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
