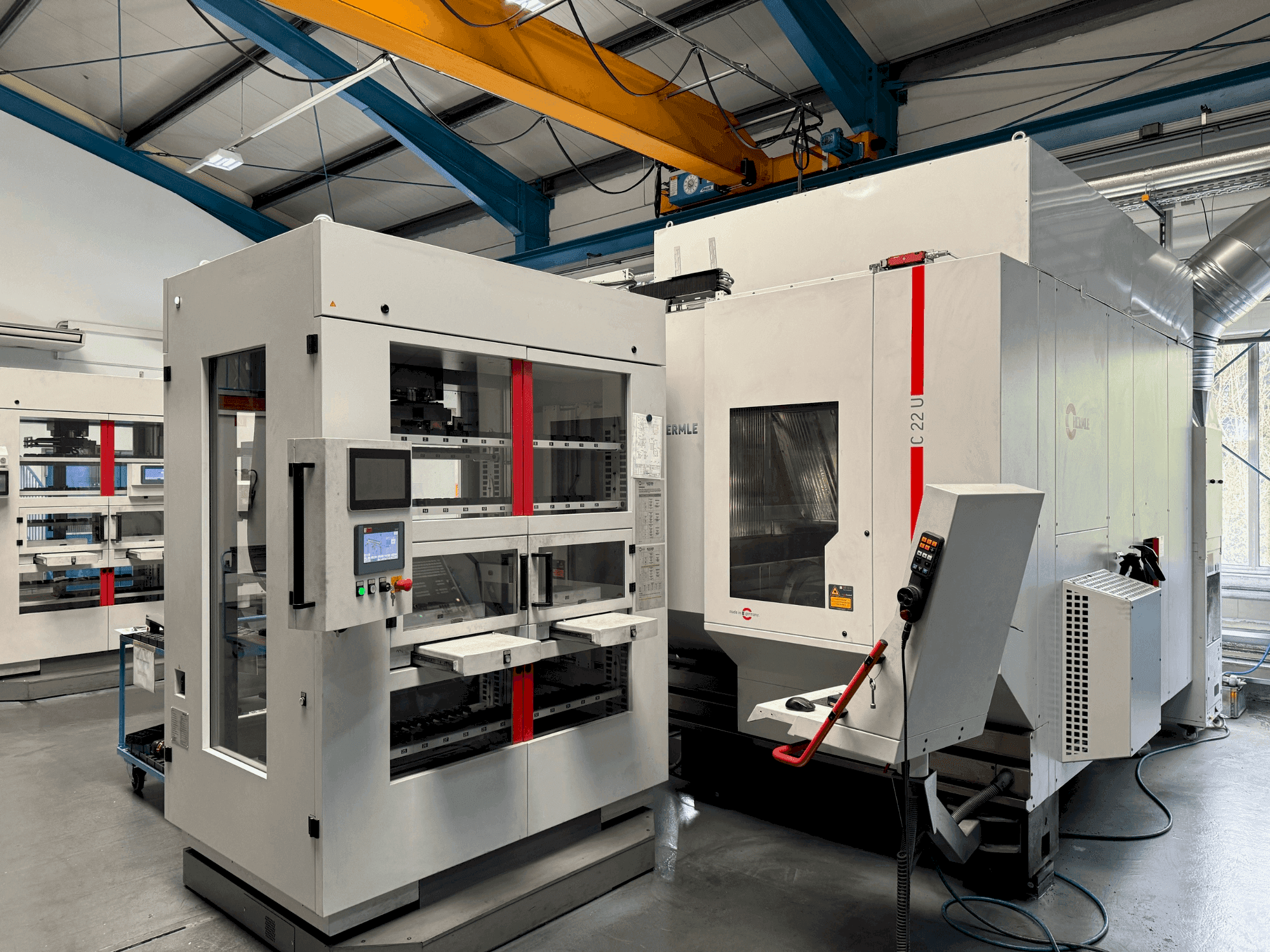

Front view of HERMLE C22 with handling system IH30 (2017) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HERMLE C22U with handling system IH30

Photo Gallery

HERMLE - C22U with handling system IH30DE-MIL-HER-2017-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Milling machine HERMLE C22U with handling system IH30 - 2017 - for sale | gindumac.com

This 5-axis HERMLE C22U Machining center was manufactured in 2017. It includes an integrated handling system, IH30, designed to enhance automation and efficiency in production. The compact yet robust configuration of this machine allows for versatile milling applications with precision and reliability. The advanced control system ensures optimal performance and supports complex milling operations demanding high accuracy. The HERMLE C22U machine we have for sale is expertly crafted to meet stringent manufacturing requirements. Contact us for further details regarding this machining center.

Overview

brand: HERMLE
year: 2017
MODEL: C22U with handling system IH30
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C22U with handling system IH30

General Data

Measurements width: 1740 mm
Measurements depth: 1700 mm
Measurements height: 2400 mm
Machine weight: 9000 kg

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 42000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 330 mm

Tools

Number of index: 65

Clamping unit

Clamping force: 4500 N KN

Additional Information

Additional equipment

Swivel rotary table STP Ø 320
Single-sided drive in the A-axis Ø 320 // Spindle 42.000 1/min HSK E40
6-way rotating union
Elimination of table top Ø 320
KinematicOpt - Hardware
IH30 handling system: max. handling weight 30kg magazine capacity 50 pallets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
