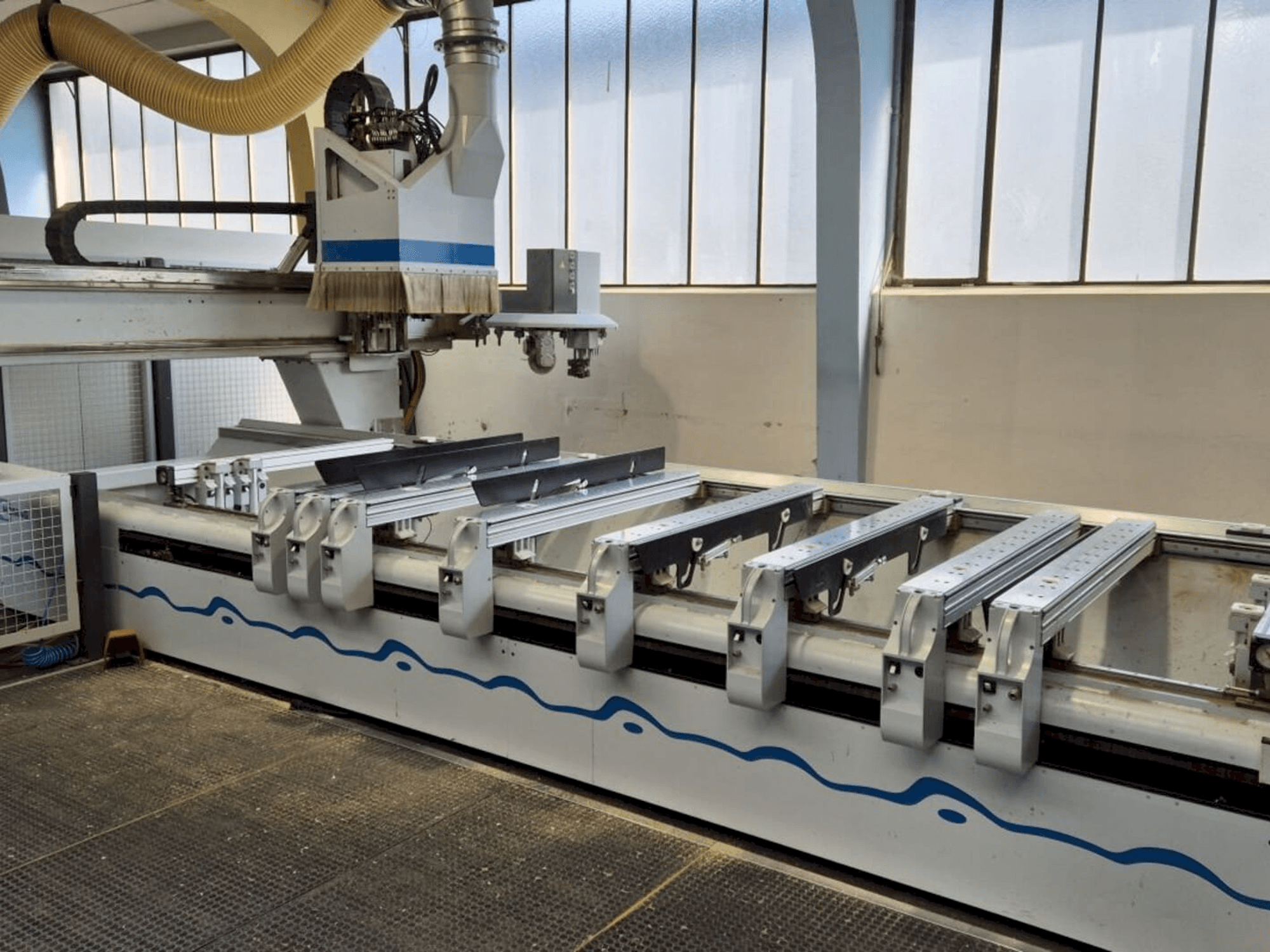

HOMAG - Optimat BAZ 211DE-CNC-HOM-2006-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - The maximum workpiece length capacity is 4000 mm with single clamping, or 1375 mm in pendulum operation, extending to 1550 mm in pendulum operation when using a Ø25 mm milling tool.
  • - The maximum workpiece width capacity is 1730 mm when milling with a Ø25 mm tool, and 1600 mm for all other operations.
  • - Clamping table with led position indicators
  • - 18-position disc tool changer
  • - 360° edge banding unit
  • - Powerful main spindle with 15 kw motor
  • - Power: 15 kw (s6 mode) / 12 kw (s1 continuous)
  • - C-axis with interface for flex-5 unit
  • - 17 vertical spindles (11 in x, 7 in y)
  • - 4 horizontal spindles
• Qualitative Machine Benefits:
  • - Edge height: 16 – 65 mm
  • - The edge thickness capacity ranges from 0. 4 to 2 mm for plastic and extends up to 1 mm for wood.
  • - Glue application via nozzle directly on the panel
  • - Includes pre-cutting station and single-roll edge supply
  • - Roll diameter: 800 mm
  • - Saw-cutting unit
  • - Combined flush trimming and finishing unit
  • - Flex-5 multifunction unit (for sawing, milling, and drilling; interchangeable with main spindle)
