Hurco - BMC 30HT/MDE-MIL-HUR-1997-00002

Name: Hurco BMC 30HT/M
Brand: Hurco
SKU: DE-MIL-HUR-1997-00002
Price: 16000 EUR
Availability: InStock

16,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco BMC 30HT/M For Sale | gindumac.com

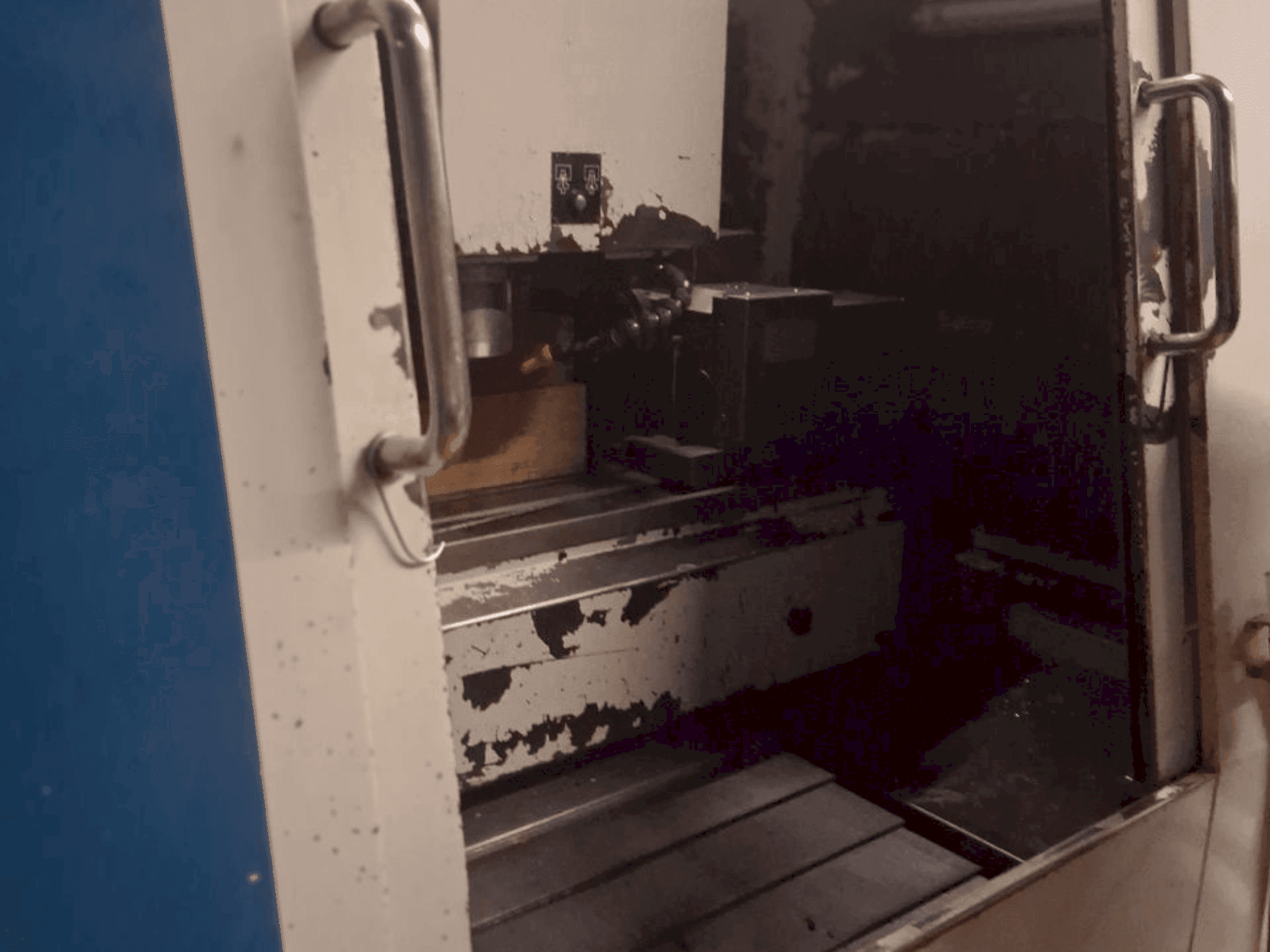

This 5-axis Hurco BMC 30HT/M was manufactured in 1997, featuring a Lehman 4/5-axis dividing head with a 200 mm diameter. It includes a CNC Ultimax 3 control, a tool changer with 24 positions, and a spindle speed up to 8000 rpm. The machine offers X/Y/Z travel paths of 760/460/610 mm and a rapid traverse of 24 m/min. Consider the opportunity to buy this Hurco BMC 30HT/M vertical machining center. Contact us for more information about this machine.

Overview

brand: Hurco
year: 1997
MODEL: BMC 30HT/M
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Hurco BMC 30HT/M

Main drive

Spindle speed range: 80 to 8000 1/MIN
Spindle motor power: 5.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 610 mm

Additional Equipment

- Lehman 4/5-axis dividing machine, diameter 200 mm
- Fully protective cabin with sliding door

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Features an indirect measuring system with rotary encoders on the ball screw
- - Feed rate: 3 to 16000 mm/min
- - Rapid traverse: 24 m/min
- - Power supply: 400 v, 50 hz
- - Tool changer with 24 tool positions
- - Spindle mount: sk 40
- - Cnc path control ultimax 3

Extra information

- Control Unit CNC Ultimax 3 contouring control with Siemens components Electronic handwheel Rotating control panel Table Table size (clamping surface): 1010 x 400 mm Table size (with water groove): 1120 x 500 mm Distance from spindle nose to table: 150 - 760 mm Throat: 450 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
