➤ Used Hurco TMX10-MYSi For Sale | gindumac.com

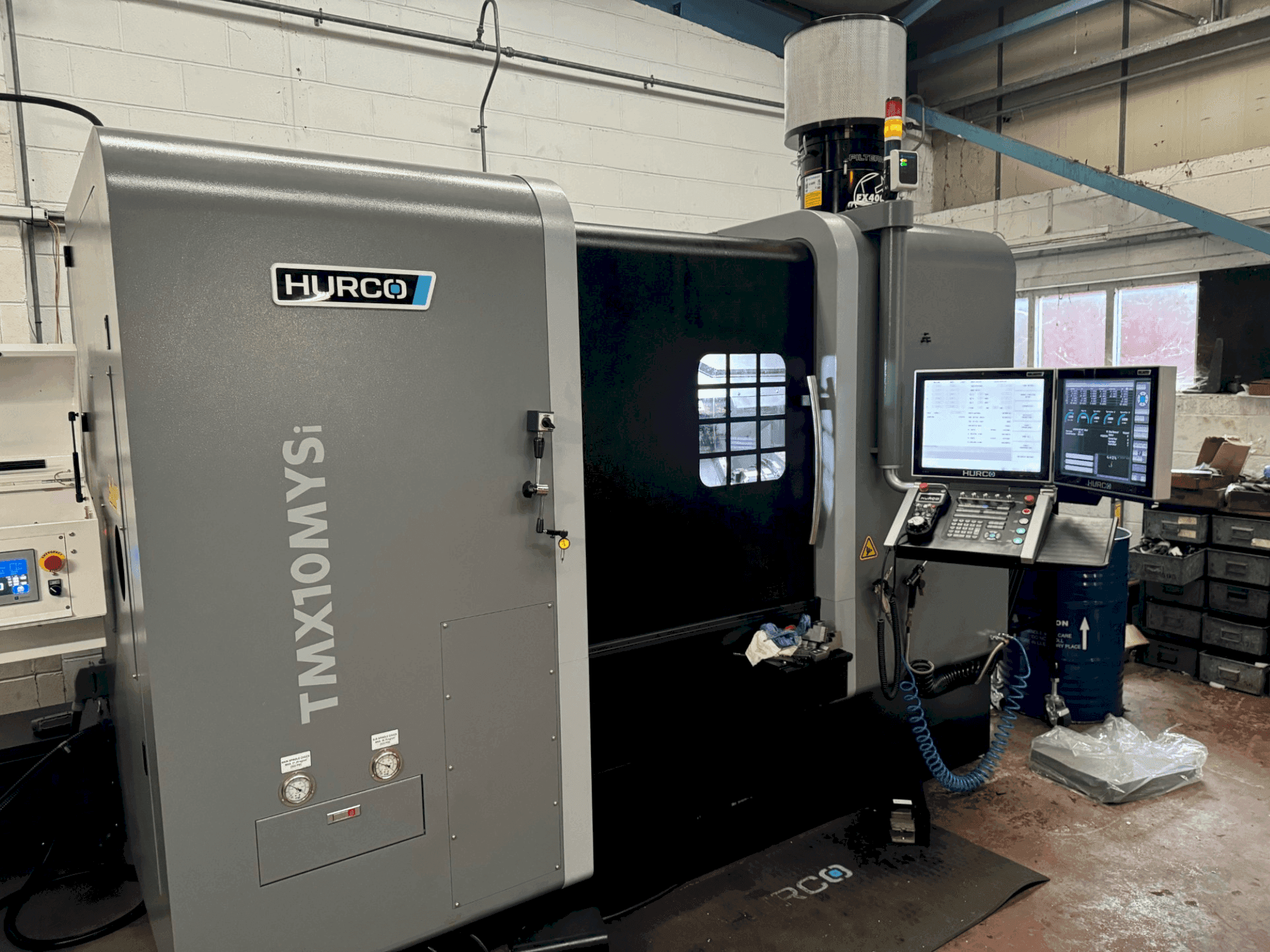

This 4-axis Hurco TMX10-MYSi horizontal turning machine was manufactured in 2023. Ideal for precision machining, it offers advanced multi-tasking capabilities. Consider the opportunity to buy this Hurco TMX10-MYSi horizontal turning machine. Contact us for more information.

Overview

brand: Hurco
year: 2023
MODEL: TMX10-MYSi
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: HURCO

Technical Information - Hurco TMX10-MYSi

General Data

Machine weight: 7700 kg

Control Unit

Brand: HURCO

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 222.5 mm
X-AXIS Rapid traverse: 24 m/minute
Y-AXIS Movement: +/- 55 mm
Y-AXIS Rapid traverse: 30 m/minute
Z-AXIS Movement: 670 mm
Z-AXIS Rapid traverse: 12 m/minute
W-Axis Movement: 740 mm
W-Axis Rapid traverse: 30 m/minute

Turret

Tool taper: VDI40 DIN1809

Tools

Number of stations: 12

Additional Equipment

- Voltage Required / Fuse rating: 3-phase 380V/415V 50 Hz/125 amp D rated MCCB
- Power Rating / Full Load KVA: 68.6 KVA
- Air Requirements: 5 CFM @ 80-100 PSI / 0.14 M3/min. @ 6-8 bar / 0.1 connected via a 12 mm nylon push fit

Additional Information

Machine Benefits

Technical Machine Benefits:
- - New enhanced graphics package, 1. 4x faster
- - Superb max5 control
- - Enhanced version 11 software
- - X axis: 30-degree incline, 222. 5 mm
- - Positioning accuracy: 0. 010 mm
- - Repeatability: 0. 005 mm
- - New enhanced graphics package, 1. 4x faster
- - Superb max5 control
- - Enhanced version 11 software
- - 128gb solid state hard drive / 4gb ram

Extra information

- Maximum Operating Dimensions (approx.): Please refer to attachment A drawings Machine Shipping Weight: 8540 Kg Shipping Dimensions (W x D x H): 4600 x 2300 x 2554 mm Turret Maximum Boring Bar Diameter: Ø 40 mm Tool Shank Width: 25 mm x 25 mm Rotation: Bi-directional Indexing Repeatability: +/- 1.6 Turret Positioning: 0.01 mm Boring Block Alignment: 0.02 mm Tool to tool index time (adjacent / furthest): 0.3 sec / 0.8 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
