Husky - GL225 RS70/60DE-INJ-HUS-1997-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

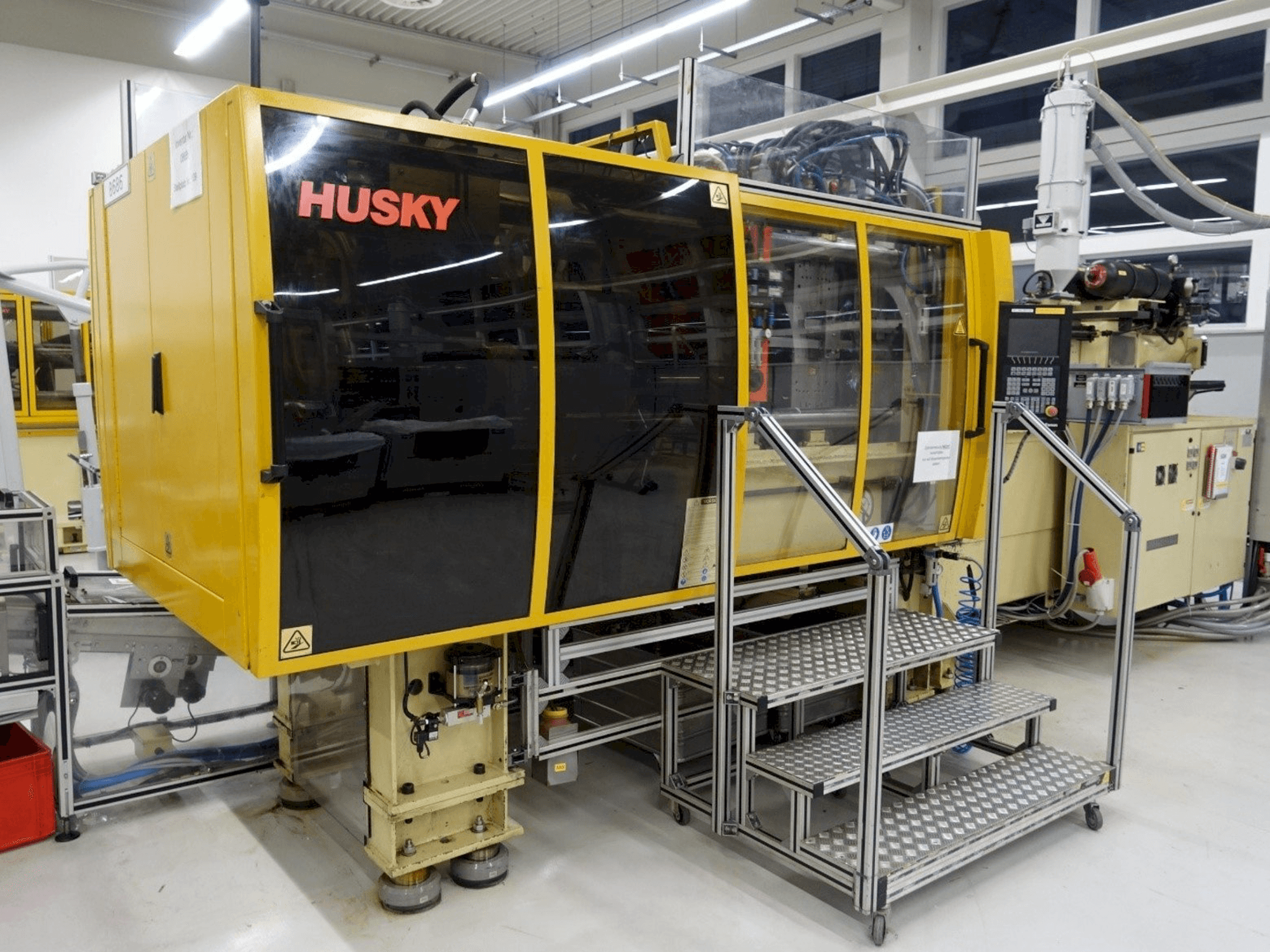

This Husky GL225 RS70/60 Injection Moulding Machine from 1997 was built in Canada. It has been operative for approximately 72400 hours. This machine is equipped with a Fanuc Control unit. It has a clamping force 2250 kN and an ejector force 75 kN. This machine is in very good condition and it has been fully maintained during the year. It includes several spare parts for additional cost.

Overview

brand: Husky
year: 1997
MODEL: GL225 RS70/60
production hours: 72400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: FANUC

Technical Information - Husky GL225 RS70/60

Control Unit

Brand: FANUC

Injection Unit

Screw diameter: 60 MM
Shot weight: 797 G/PS
Stroke volume: 848 CM³
Injection pressure: 2058 Bar

Clamping unit

Clamping force: 2250 kN
Opening stroke: 675 MM
Distance between bars: H x V 620 x 620 MM
Mould height min: 450 MM
Mould height max: 800 MM
Size of mold platens: H x V 906 x 928 MM
Ejector stroke: 150 MM
Ejector force for / back: 75 kN

Media

Power consumption: 25 kW

Additional Equipment

- Spare Parts (additional cost)
- 2 nozzle closure cylinder
- 1 nozzle closure shut-off piston
- 2 orifice plates - 2 tie bars
- 8 Bolt nozzle closure (bracket)
- 7 Snap ring small & large
- 2 Hydraulic oil filter - 1 hydraulic block injection unit
- 2 buckets of grease for central lubrication
- 1 Foot pump central lubrication
- 1 tie bar runner for stack molds

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Platen distance max 1475 mm
- - Center height 1830 mm (incl. Additional increase of 200mm)
- - Screw - l/d 23,6 : 1
- - Screw stroke 300 mm
- - Standard screw drive speed (rpm) 318**- *torque (nm) 901 - plasticizing capacity (g/s ps) 46
- - High torque screw drive speed (rpm) 183** - torque (nm) 1567 - plasticizing capacity * (g/s ps) 27
- - Worm drive for high speed speed (rpm) 443** - torque (nm) 647 - plasticizing capacity * (g/s ps) 64
- - Mold mounting and ejector drilling patterns optionally according to euromap or spi
- - Hole patterns for mte robot installation
- - Machine-mounted stack mold carrier
Qualitative Machine Benefits:
- - Design for stack mold carrier
- - Mold cooling package with cast steel components
- - Air function - up to 4 air valves per platen
- - Pneumatic valve gate
- - Accumulator assisted injection
- - Hydraulic shut-off nozzle
- - Ring check valve
- - Machine has been very well maintained during lifetime.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
