➤ Used Index G400 - 2001 - Lathe For sale | gindumac.com

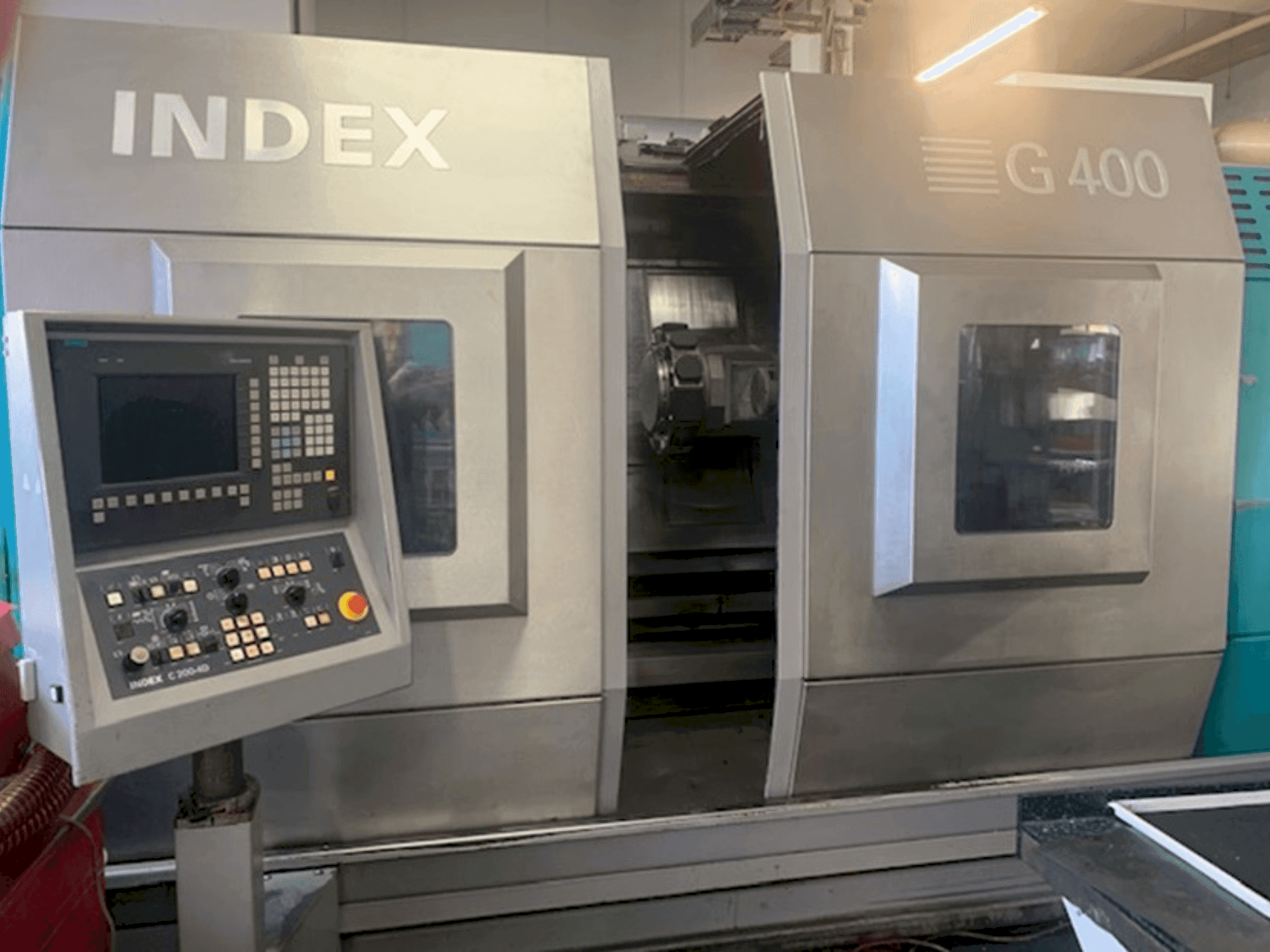

This 4-axis Index G400 lathe was manufactured in 2001. It features a main spindle with a diameter of 102 mm and a gearbox with multiple speed settings, achieving up to 2500 rpm at i=1 and 1000 rpm at i=3. The machine includes a Röhm Duro-NC 400/3 chuck and a turret with 12 positions, plus a disc magazine holding 32 positions. Ideal for high-precision tasks, the Index G400 machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: Index
year: 2001
MODEL: G400
application type: Turning
Location: Germany
machine type: Multi-Spindle Turning Machine

Technical Information - Index G400

General Data

Machine weight: 21000 kg

Main drive

Number of spindles: 3
Spindle speed range: 2500 rpm 1/MIN
Spindle motor power: 47/66 kW
Tool taper: HSK 63A
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 2000 mm

Turret

Number of turrets: 1

Tools

Number of stations: 32

Clamping unit

Clamping force: 10900 kN

Additional Information

Additional equipment

Chuck: Röhm Duro-NC 400/3
Turret: 12 positions
Satellite milling spindle HSK 63A with IKZ
Gearbox ratios: Main spindle i=1, i=3; Milling spindle i=4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
