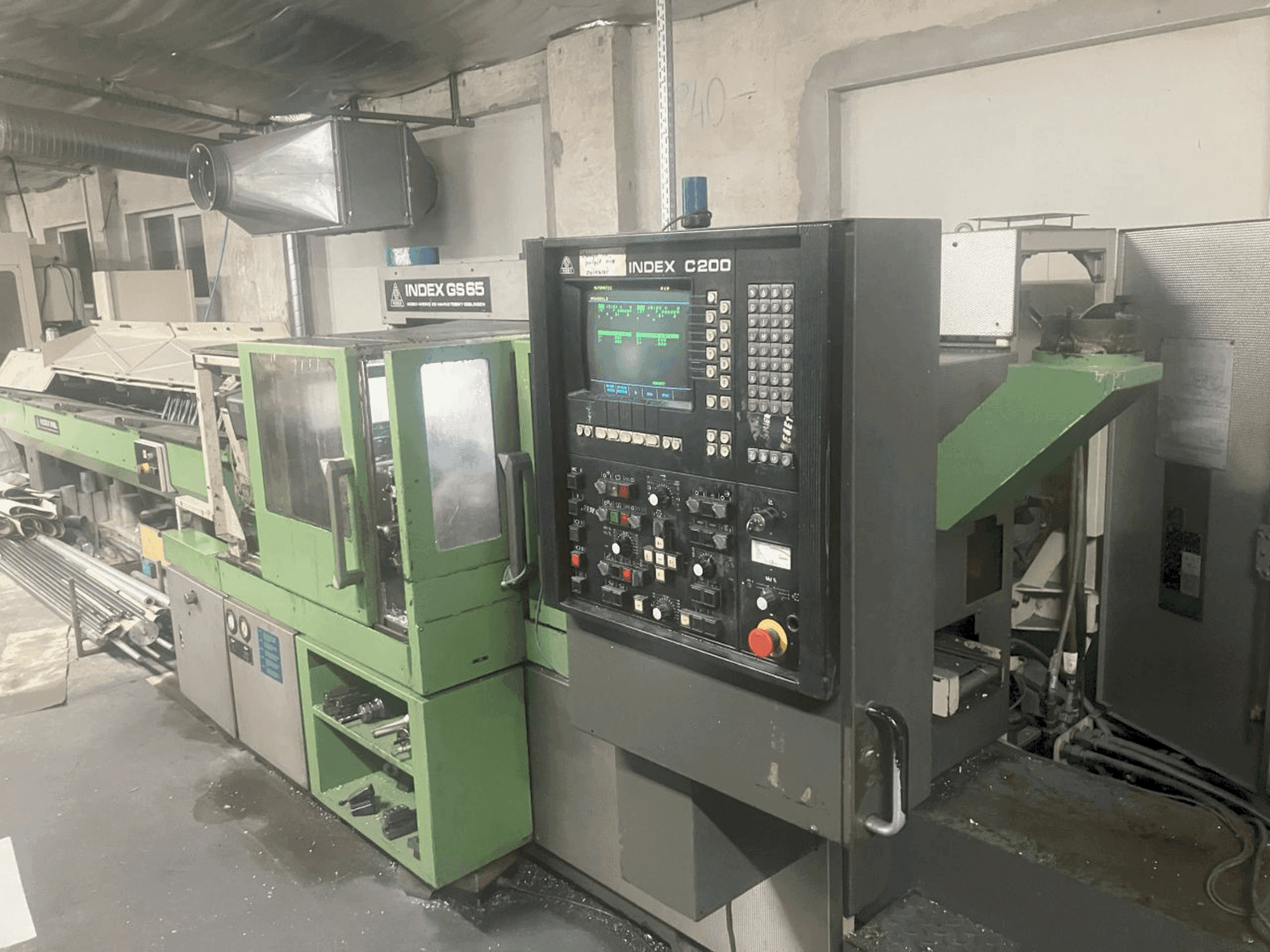

This 2-axis Index GS65 was manufactured in 1992. A robust horizontal turning machine, it offers precision and reliability for complex machining tasks. Consider the opportunity to buy this Index GS65 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Index
- year: 1992
- MODEL: GS65
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: INDEX
Technical Information - Index GS65
Control Unit
- Brand: INDEX
- Model: C200
Main drive
- Spindle speed range: 5000 1/MIN
- Number of axis: 2
Additional Equipment
- - Bar feeder
- - Slide travel Z-axis (longitudinal): Revolver 1: 550 mm / Revolver 2: 250 mm
- - Slide travel X-axis (transverse): Revolver 1: 163 mm / Revolver 2: 140 mm
- - Turning diameter: Revolver 1: 200 mm / Revolver 2: 280 mm
- - Turning length: Revolver 1: 500 mm / Revolver 2: 250 mm
- - Spindle bore: 65 mm / Clamping diameter: 200 mm / Spindle front diameter: 110 mm / Spindle nose (according to DIN 6353): 140 mm
- - Power at 100% duty cycle (60% ED): 36 kW (43 kW) / Drive type: Direct drive / Speed range I: 25 to 2500 rpm / Torque at spindle (range I): 265 Nm (315 Nm) / Speed range II: 50 to 5000 rpm/ Torque at spindle (range II): 132 Nm (155 Nm)
- - options included: about 40 pcs spindle reduction sleeves, 6 live tool holders, and about 30 fixed tool holders.
Additional Information
- Technical Machine Benefits:
- - Spindle bore diameter: 65 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
