INFOTEC - 3121 PRO EVOPL-CNC-INF-2022-00001

Name: INFOTEC 3121 PRO EVO
Brand: INFOTEC
SKU: PL-CNC-INF-2022-00001
Price: 88000 EUR
Availability: InStock

88,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used INFOTEC 3121 PRO EVO - For Sale | gindumac.com

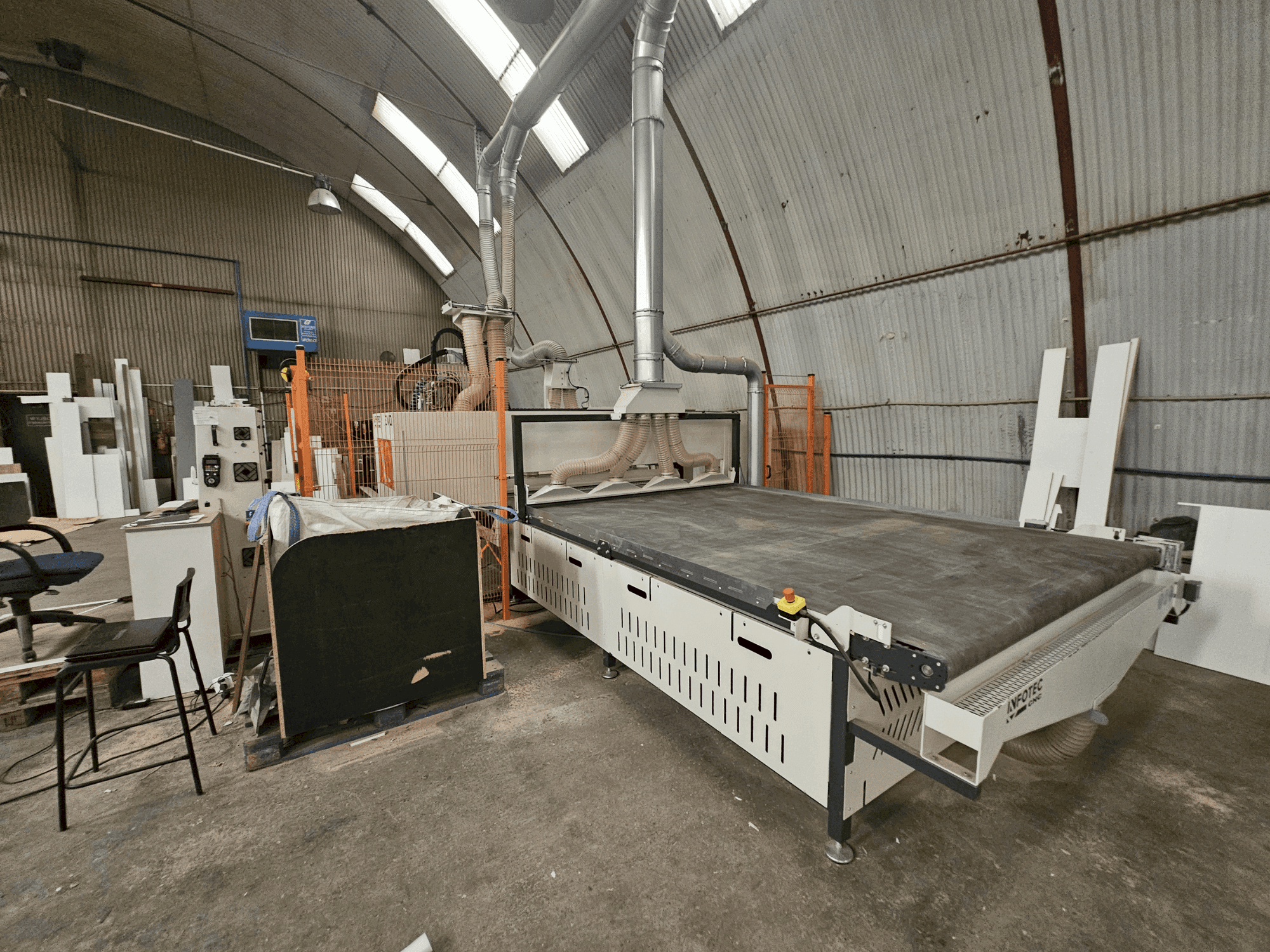

This 3-axis INFOTEC 3121 PRO EVO was manufactured in 2022. It features a working area of 2200 x 3100 mm, Z-axis travel up to 350 mm, and a high-speed main spindle with a power of 8.5 kW and speed range up to 24,000 RPM. Equipped with a 14-position tool magazine and a robust vacuum table with 6 zones. Ideal for advanced CNC wood machining. Contact us for more information about this machine.

Overview

brand: INFOTEC
year: 2022
MODEL: 3121 PRO EVO
production hours: 0
application type: CNC Wood Machining
Location: Poland
machine type: CNC Wood Machining Centre

Technical Information - INFOTEC 3121 PRO EVO

General Data

Machine weight: 3700 kg

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 8.5 kW
Number of axis: 3

Movement

X-AXIS Rapid traverse: 80 m/min
Y-AXIS Rapid traverse: 80 m/min
Z-AXIS Movement: 250 mm
Z-AXIS Rapid traverse: 12 m/min

Tools

Type of tool holder: HSK 63F

Additional Information

Additional equipment

Remote Control Pendant
Z-axis Tool Length Sensor
4 Vacuum Suction Cups // 4 Additional Positioning Pins (long)
Automatic Dust Shoe Height Adjustment // Automatic Part Pushing System
Receiving Table for Finished Parts (2800 x 2070 mm)
Loading Table (2800 x 2100 mm, 2000 kg Capacity, 500 mm Stack)
CNC Control System TPA – WSCM
Straight-line Nesting Software (Included)
Pneumatic and Electrical Preparation for Drill Head Upgrades
ECO Mode for Energy Saving

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
