Johnford SL-40

Photo Gallery

Johnford - SL-40IL-TUR-JOH-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

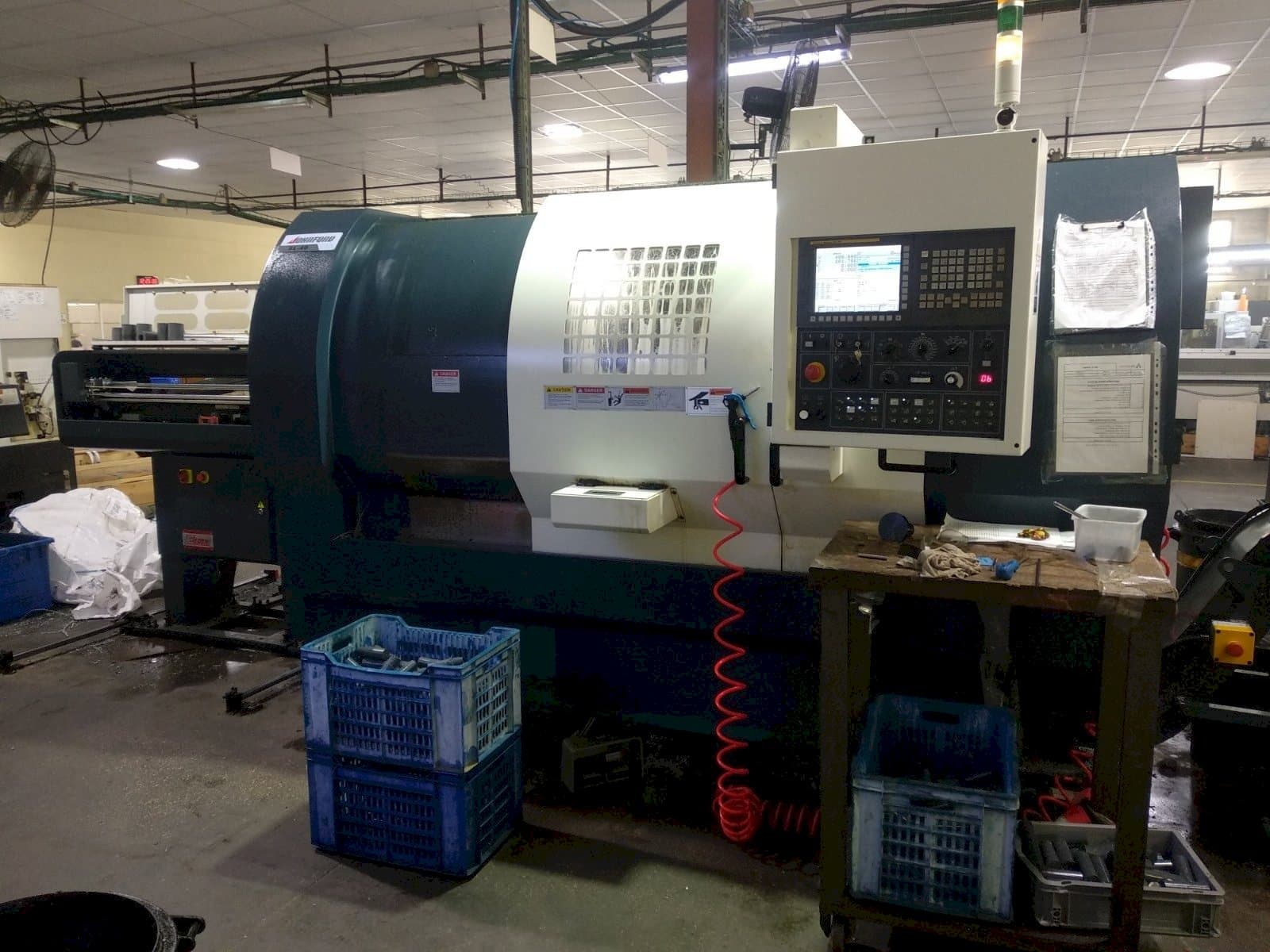

This Johnford SL-40 Lathe was built in 2016 in Taiwan. It has been working for 22320 hours, of which 9592 are cutting hours and 2889 are running time. This machine is equipped with a FANUC Series control unit. It can work with a spindle speed up to 4000 rpm.

Overview

brand: Johnford
year: 2016
MODEL: SL-40
production hours: 22320
application type: Turning
Location: Israel
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford SL-40

General Data

Measurements width: 1851 mm
Measurements depth: 3525 mm
Measurements height: 1862 mm
Machine weight: 4500 kg

Control Unit

Model: 0iTD
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 11 / 15 kw
Spindle bore: Ø 86 (Ø 3.4") mm

Movement

X-AXIS Rapid traverse: 20 m / min
Y-AXIS Movement: ± 40 mm
Y-AXIS Rapid traverse: 10 m / min
Z-AXIS Rapid traverse: 20 m / min

Turret

Number of tool slots: 12

Tail Stock

Pinol diameter: Ø 60 (Ø 2.4") mm
Pinol way: 60 (2.4") mm

Media

Main electronic connection: 3- 380 V 50 HZ
Power consumption: 26 KW

Additional Information

Additional equipment

C+Y-a axis
Contact tool setting system
Parts catcher
Tool holders (VDI type) - Tool holders - 5 horizontal / 5 vertical made by WTO from Germany
Programmable hydraulic tailstock
Bar feeder interface
Rotary tailstock

Machine Benefits

Qualitative Machine Benefits

Coolant system; splash guard
Through hole 3-jaw chuck
Programmable hydwaulic tailstock
Hydraulic tailstock quill
Chain type chip conveyor
Tool box and various manuals
Tool holders (direct mounting type)
Auto lubrication with alarm
Led working lamp
Type of guide ways: box ways

Technical Machine Benefits

Swing over bed Ø 580 (Ø 22. 8") mm
Swing over cross slide Ø 450 (Ø 17. 7") mm
Chuck size 254 mm
Bar capacity Ø 76. 5 (Ø 3") mm
Spindle nose a2-8
Spindle transmission: one step
Spindle bearing diameter Ø 120 (Ø 4. 7") mm
Cross travel (x-axis): 240 (9. 4") mm
Longitudinal travel (z-axis)(for y-axis): 600 (500) < 23. 6 "(19. 7")> mm
Tailstock travel (for y-axis): 500(400) < 19. 7 "(15. 7")> mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
