- ➤ Used Johnford SL-40 - 2017 - Lathe For Sale

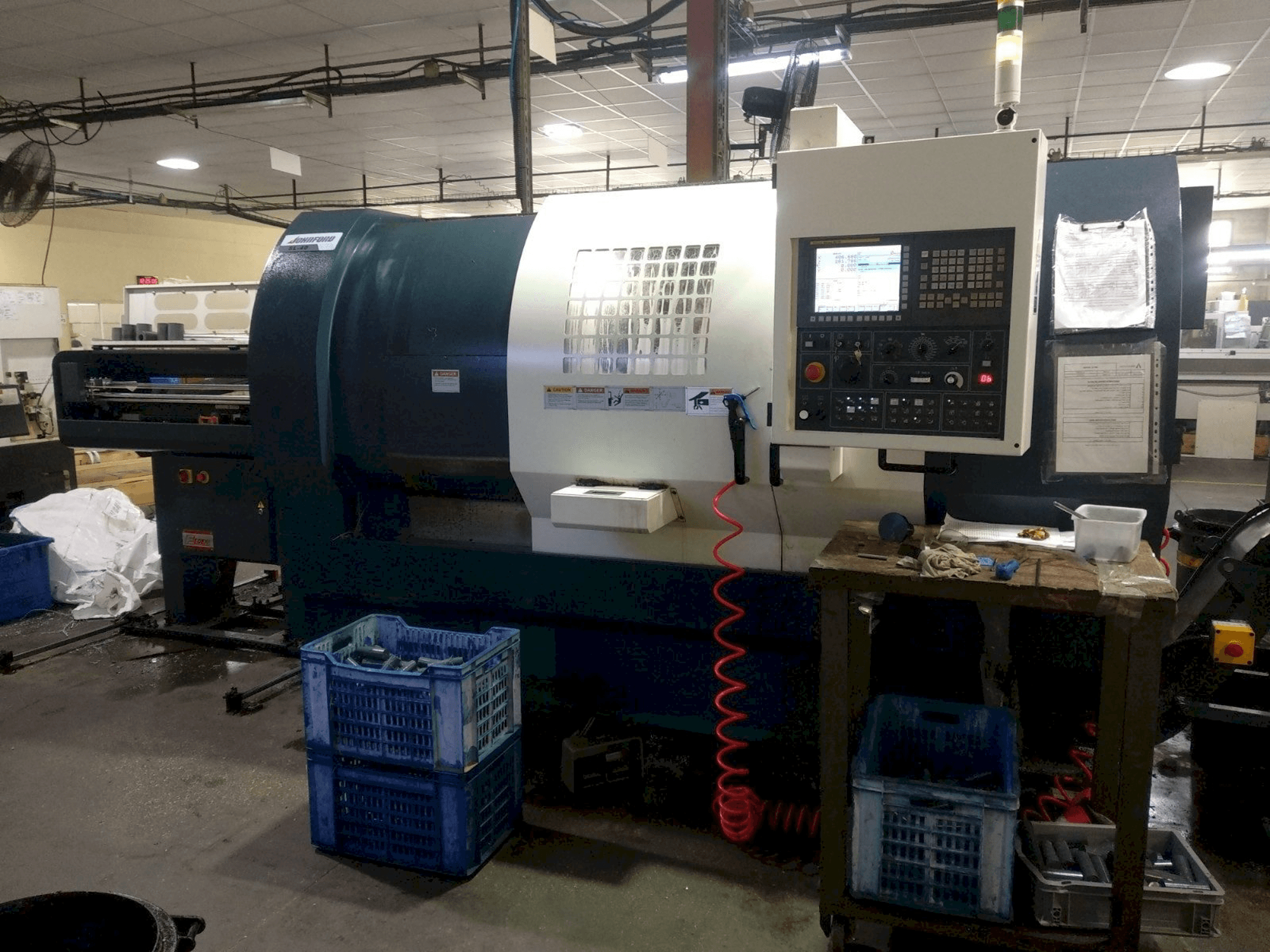

This Johnford SL-40 Lathe was manufactured in Taiwan in the year 2017. It has been operative for 30296 hours, of which 12401 are cutting hours. This machine works through a FANUC Series control unit. It can work with a spindle speed up to 4000 rpm. CE conformity.
Overview
- brand: Johnford
- year: 2017
- MODEL: SL-40
- production hours: 30296
- application type: Turning
- Location: Israel
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Johnford SL-40
Control Unit
- Control Brand: FANUC
- Control Model: 0iTD
Dimensions
- Machine Depth: 3525 mm
- Machine Height: 1862 mm
- Machine Weight: 4500 kg
Movement
- Y-axis Travel: 40 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- C+Y-a axis
- Contact tool setting system
- Parts catcher
- Tool holders (VDI type) - Tool holders - 5 horizontal / 5 vertical made by WTO from Germany
- Programmable hydraulic tailstock
- Bar feeder interface
- Rotary tailstock
- CE conformity
Machine Benefits
Qualitative Machine Benefits
- Coolant system; splash guard
- Programmable hydwaulic tailstock
- Through hole 3-jaw chuck
- Hydraulic tailstock quill
- Chain type chip conveyor
- Tool box and various manuals
- Tool holders (direct mounting type)
- Auto lubrication with alarm
- Led working lamp
- Type of guide ways: box ways
Technical Machine Benefits
- Swing over bed Ø 580 (Ø 22. 8") mm
- Swing over cross slide Ø 450 (Ø 17. 7") mm
- Chuck size 254 mm
- Spindle nose a2-8
- Bar capacity Ø 76. 5 (Ø 3") mm
- Spindle bearing diameter Ø 120 (Ø 4. 7") mm
- Spindle transmission: one step
- Cross travel (x-axis): 240 (9. 4") mm
- Tailstock travel (for y-axis): 500(400) < 19. 7 "(15. 7")> mm
- Longitudinal travel (z-axis)(for y-axis): 600 (500) < 23. 6 "(19. 7")> mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
