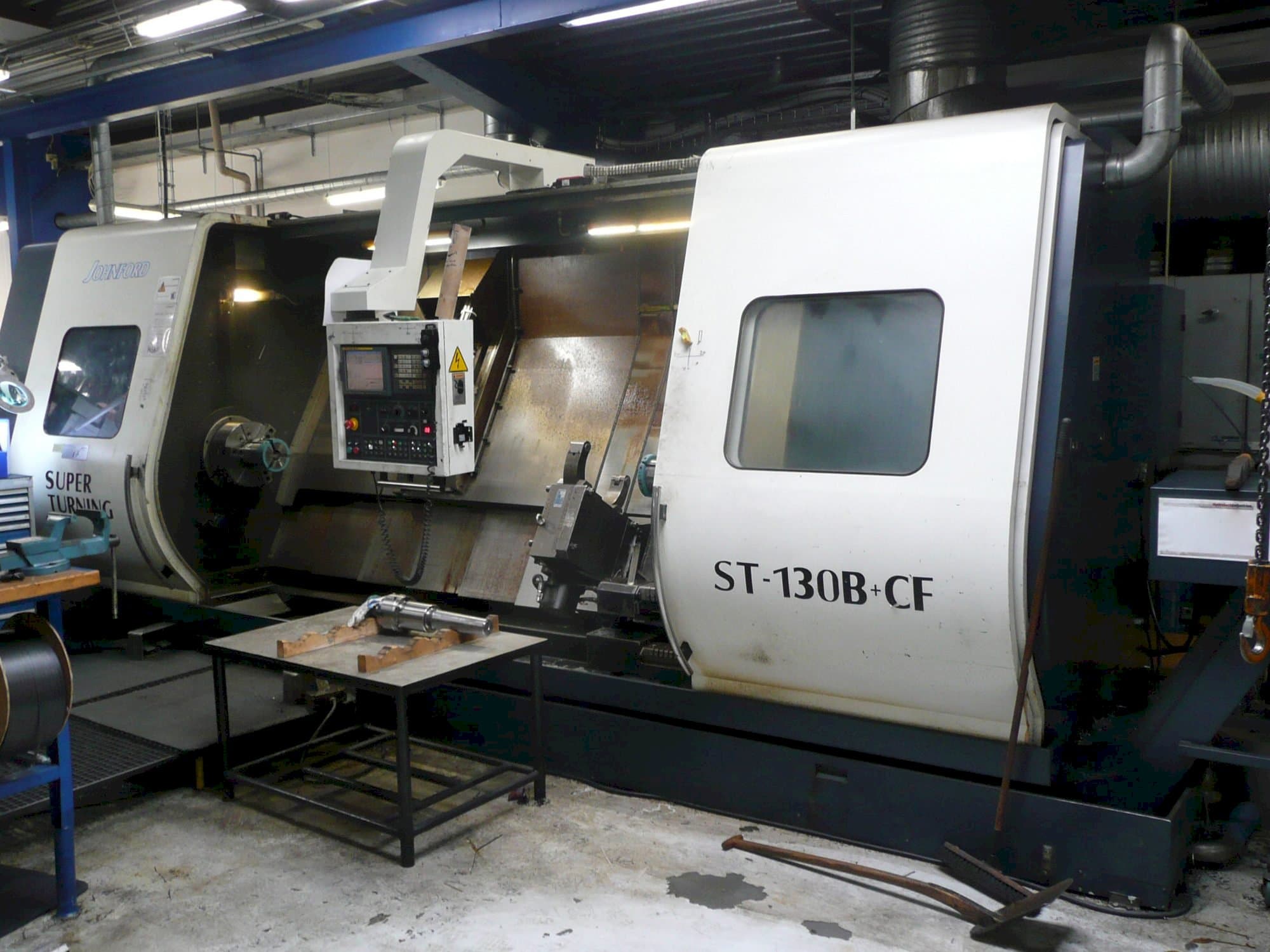

Front view of Johnford ST-130 B+CF machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Johnford ST-130 B+CF

Photo Gallery

Johnford - ST-130 B+CFDK-TUR-JOH-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Johnford ST-130 B+CF Lathe

This Johnford ST-130 B+CF Lathe was manufactured in Taiwan in 2007. It has been power on for 54093 hours, of which 9756 are cutting hours. This 3 axis machine is equipped with a Fanuc Series 18i-TB control unit. It can work with a spindle speed up to 2000 rpm. The machine is in good conditions.

Overview

brand: Johnford
year: 2007
MODEL: ST-130 B+CF
production hours: 9756
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford ST-130 B+CF

General Data

Measurements width: 2550 mm
Measurements depth: 8200 mm
Machine weight: 21000 KG

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Spindle motor power: 22 kW
Spindle bore: 116 mm
Number of axis: 3

Movement

X-AXIS Movement: 370 mm
Z-AXIS Movement: 3050 mm

Tools

Slots in storage: 12
Type of tool holder: VDI 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Includes machine manual
Good condition

Technical Machine Benefits

Swing over bed: 920 mm
Swing over cross slide: 700 mm
Working length: 3000 mm
Rapid movement: x-axis 10 m/min
Rapid movement: z-axis 12 m/min
Full c axis, no. Of rotating stations 6 pcs
Interface rs-232 c
Hydraulic rest dia. : 45 - 310 mm, tailstock
3-jaw chuck dia. : 400 mm, set of tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
