- ➤ Used KNOLL KF 400/3400 - 2019 - For sale | gindumac.com

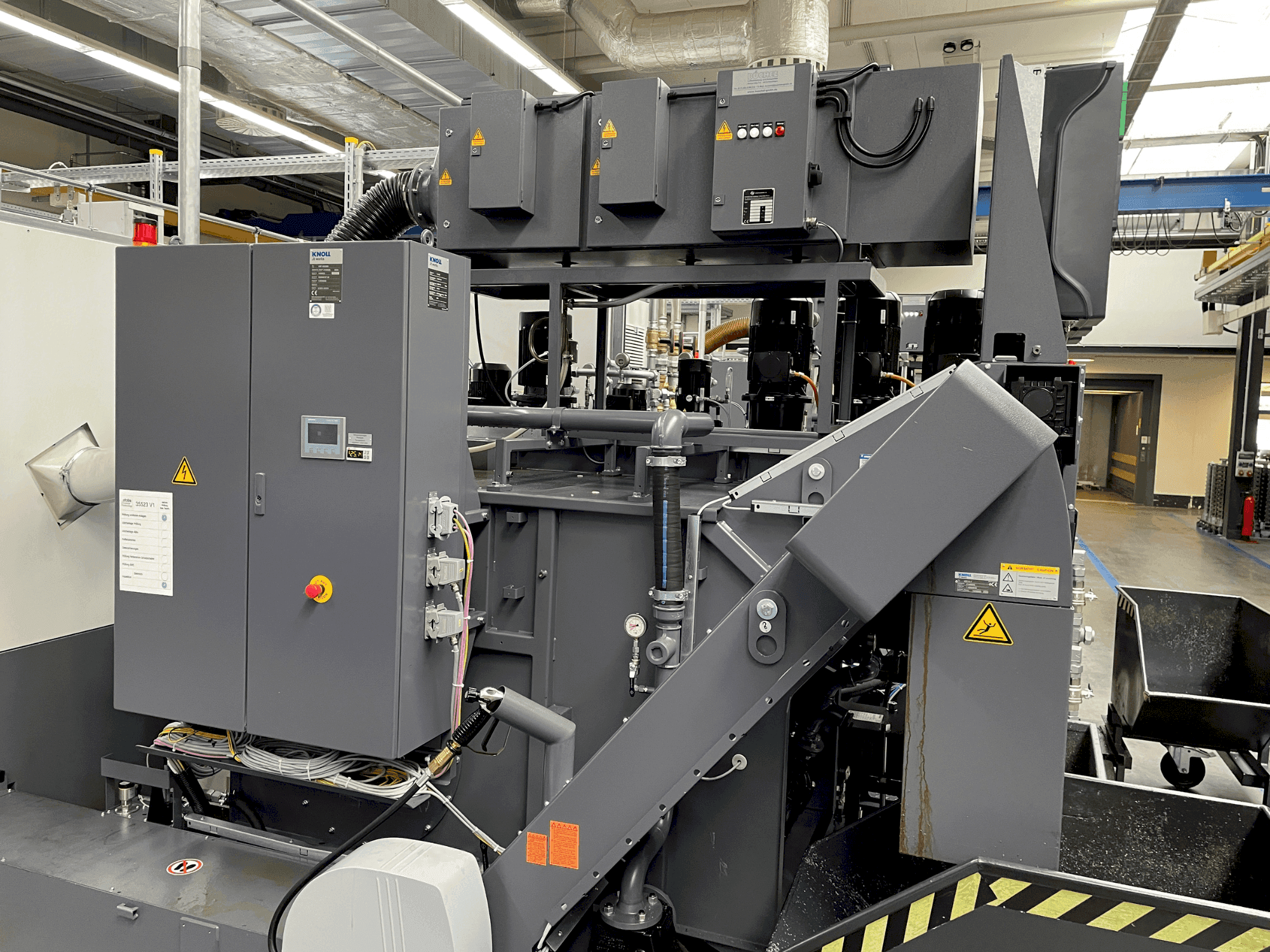

This KNOLL KF 400/3400 was manufactured in 2019. It features a scraper belt conveyor and a compact filter system designed for machining processes with specific environmental conditions. The system includes a clean tank with a 3400-liter capacity and a variety of pumps, including a centrifugal process pump and a screw pump, ensuring efficient fluid movement. Ideal for handling cooling lubricant emulsions, it also includes plate heat exchangers for effective cooling. Contact us for more information.
Overview
- brand: KNOLL
- year: 2019
- MODEL: KF 400/3400
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
Additional Information
Additional equipment
- Scraper belt conveyor type 400 K-1, medium emulsion.
- System compact filter KF type KF400/3400.
- Compact filter KF 400 with position drive/inlet KF right, take-up unit KF yes, fleece holder KF at the rear (externally mounted).
- Clean tank, flat, rectangular shape, dimensions 2500x1500x1100mm, capacity 3400l, material steel, sheet thickness 3mm, tank cover sheet steel.
- Centrifugal pump, process pump function, flow rate 320l/min, pressure 5 bar, submersible version.
- Screw pump KTS 32: HD piston bushing (KB), spindle pitch 48, PTC thermistor and frequency-controlled, flow rate 65l/min and 80 bar pressure.
- Plate heat exchanger 25 plates: dimensions 424x323x670mm, medium to be cooled, cooling capacity 40 kW.
- Plate heat exchanger 15 plates: plate material 1.4404, cooling capacity 16 kW.
- Circulation and PHE supply pump: flow rate 50 litres/min, pressure 5.5 bar.
- Cooling lubricant system for emulsions
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
