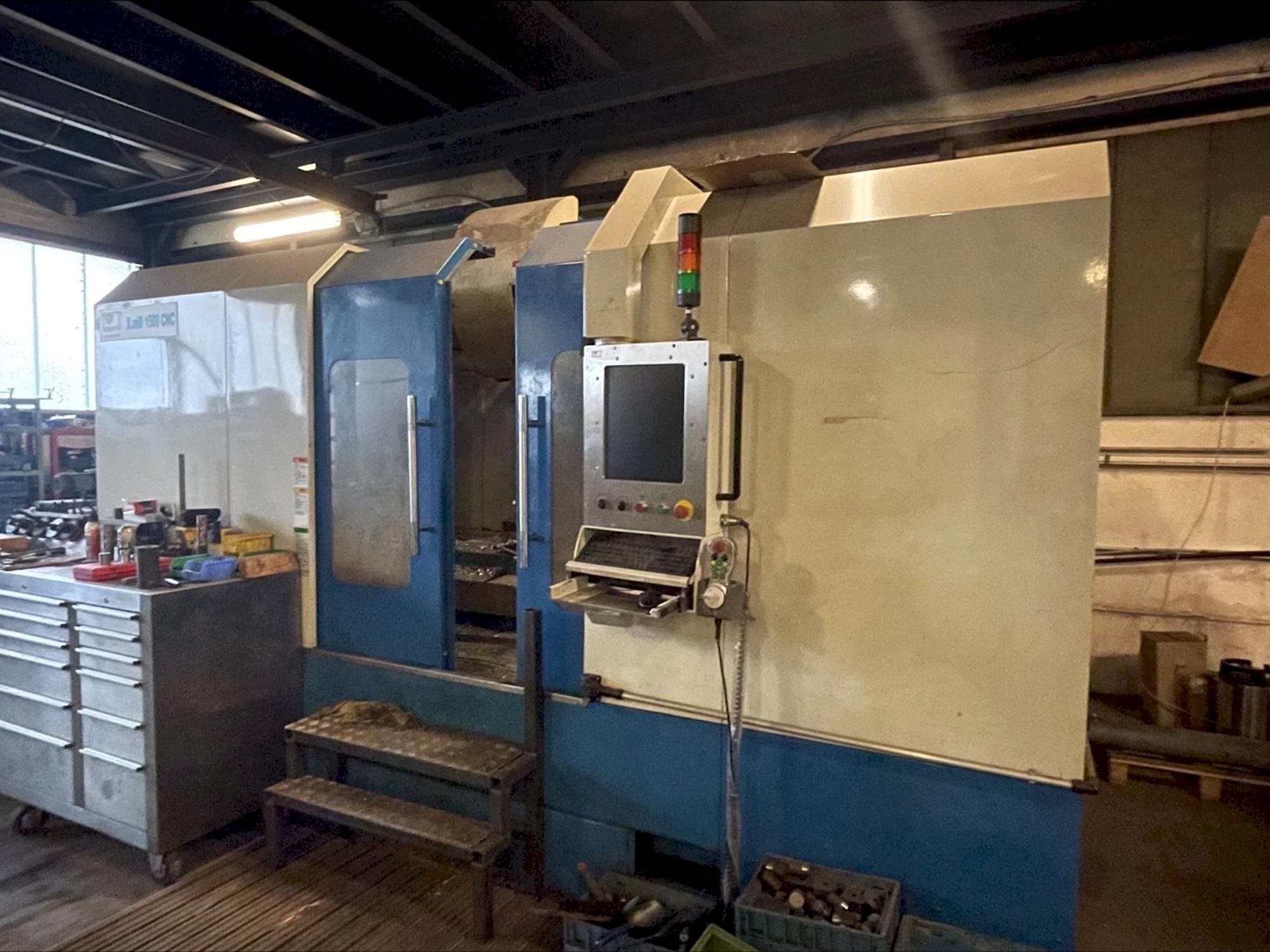

Knuth LL 1500 CNC Vertical machining center

This Knuth LL 1500 CNC Vertical machining center was made in 2011 in Germany. It is equipped with a X Mill 1500 control unit. The machine has a spindle speed of 60-8000 rpm.

Overview

brand: KNUTH
year: 2011
MODEL: LL 1500 CNC
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - KNUTH LL 1500 CNC

General Data

Measurements width: 4270 mm
Measurements depth: 3413 mm
Measurements height: 3067 mm
Machine weight: 1400 kg

Control Unit

Model: 1500

Main drive

Spindle speed range: 60-8000 1/MIN

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1700 mm
Outer width: 800 mm
Table load: 1500 kg

Tools

Slots in storage: 5 pieces

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slots, width: 22 mm
- - T-slots, distance: 135 mm
- - Distance spindle nose: 170 - 870 mm
- - Table surface overhang: 800 mm
- - Spindle mounting: bt 50
- - Feed rate: 15000 mm/min
- - Rapid traverse x-axis: 15000 mm/min
- - Rapid traverse y-axis: 10000 mm/min
- - Rapid traverse z-axis work feed rate tool carrier: 5 - 5000 mm/min
- - Number of tool places : 24 pieces
Qualitative Machine Benefits:
- - Accuracies positioning accuracies: ± 0,01 mm / ±
- - Repeatability: 0,00039"
- - Motor power main drive (cont. /30 min): 15/18. 5 kw / 15/25 hp
- - Optional many tools and equipment for sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
