KONDIA B1050

Photo Gallery

KONDIA - B1050ES-MIL-KON-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

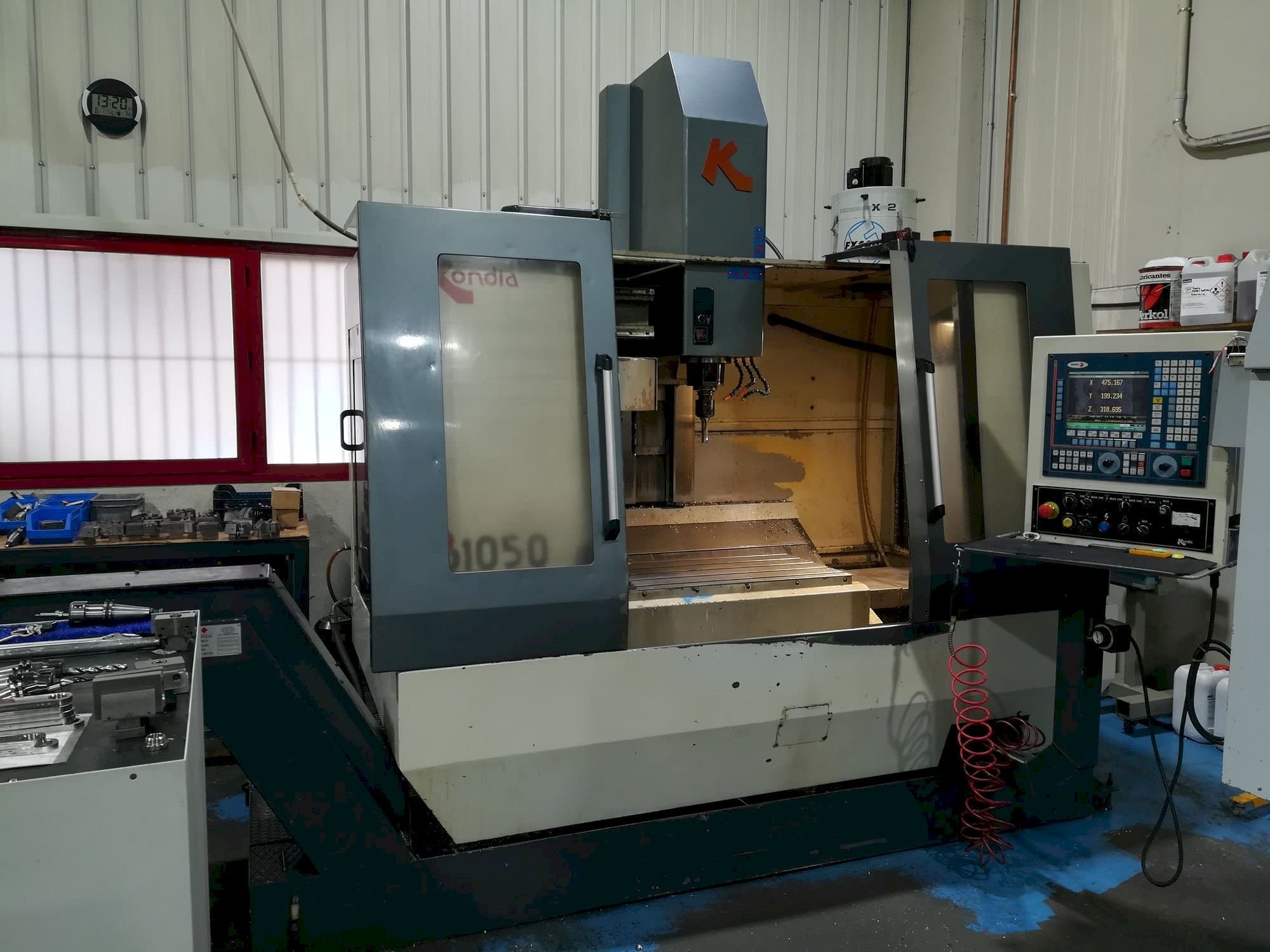

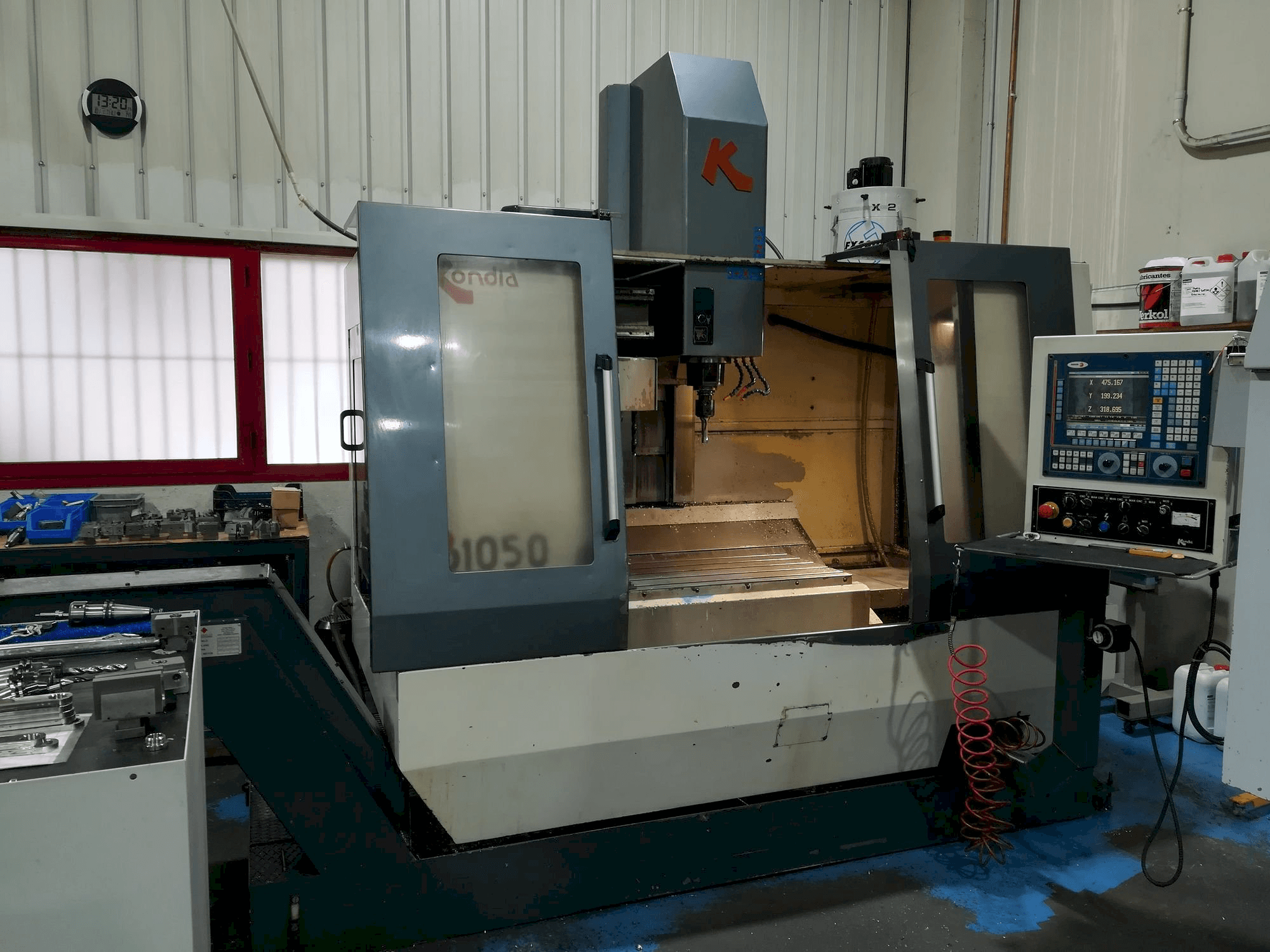

KONDIA B1050 Vertical Machining Center

This KONDIA B1050 Vertical Machining Center from Spain was manufactured in 2002 and has a working time of 12304 hours. Operated through a FAGOR 8055 Power MC Control unit, this machine is capable of working with a spindle speed range of 100-6000 rpm. It stands out for having its lubrication central renewed, as well as all the lubrication tubes replaced. In 2017 it was fully retrofitted, having its X and Y guides rectified and the CNC changed to a newer model. Some additional equipment is included within the delivery.

Overview

brand: KONDIA
year: 2002
MODEL: B1050
production hours: 12304
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FAGOR

Technical Information - KONDIA B1050

General Data

Measurements width: 2450 mm
Measurements depth: 2342 mm
Measurements height: 2870 mm
Machine weight: 5100 kg

Control Unit

Model: 8055 Power MC
CNC main language: Spanish
CNC language customizable: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 100-6000 rpm 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 610 mm
A-AXIS Movement: 225 mm

Workpiece

Workpiece weight: 450 kg

Table

Outer length: 1200 mm
Outer width: 500 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Slots in storage: 22
Max weight: 6 kg
Max tool diameter: 135 mm
Max tool length: 250 mm

Media

Power consumption: 14 kW
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
