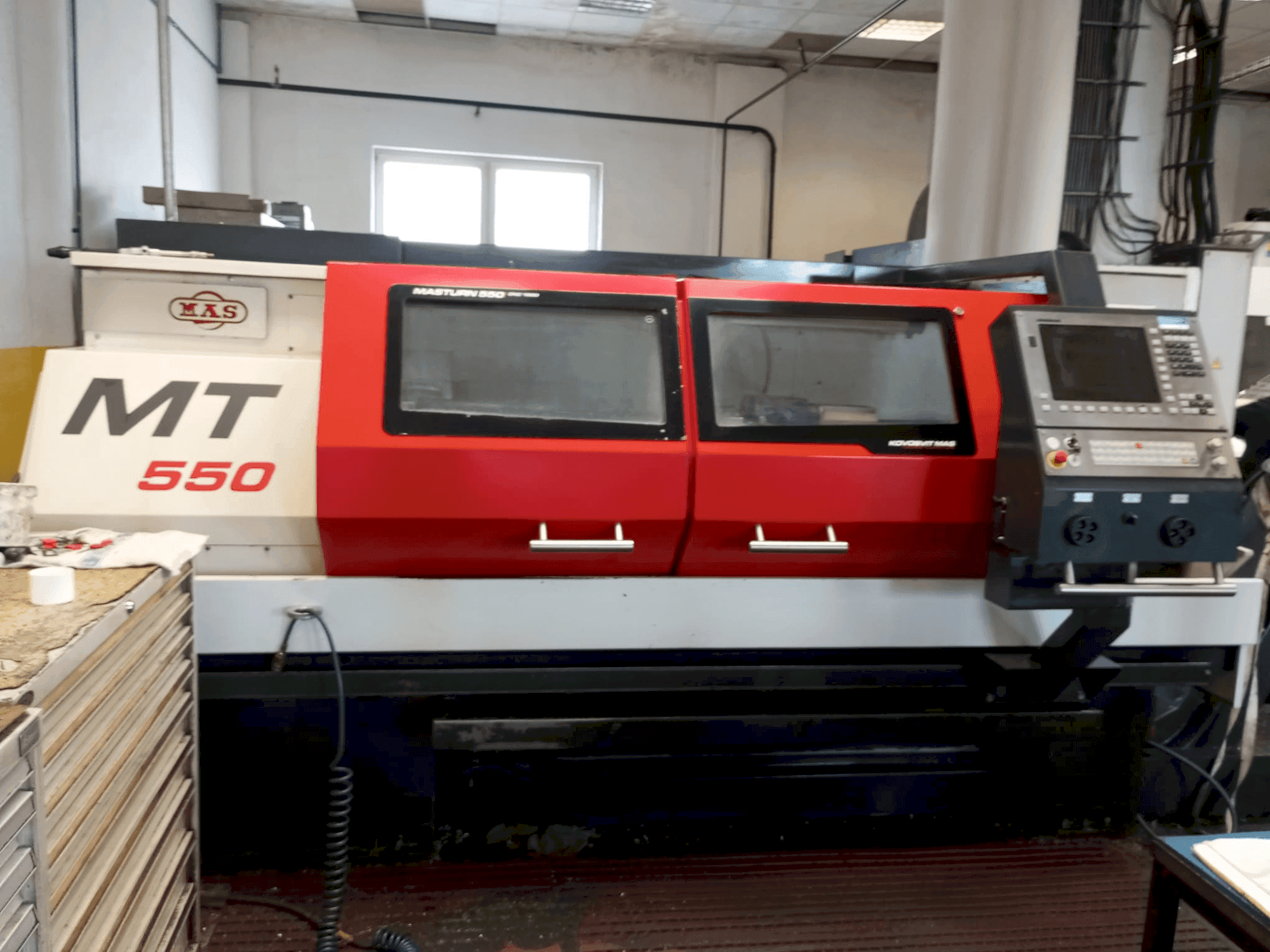

This KOVOSVIT MAS MASTURN 550i CNC 1500 lathe was manufactured in 2015. It features a maximum machining diameter of 500 mm and a turning diameter over bed of 550 mm. Equipped with a HEIDENHAIN MANUAL plus 620 control, it offers a spindle speed range up to 3000 rpm and a turret head with 8 positions. Ideal for precision machining, the KOVOSVIT MAS MASTURN 550i CNC 1500 represents a robust addition to any workshop. Contact us for further details.
Overview
- brand: KOVOSVIT MAS
- year: 2015
- MODEL: MASTURN 550i CNC 1500
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - KOVOSVIT MAS MASTURN 550i CNC 1500
General Data
- Measurements width: 1920 MM
- Measurements depth: 3238 MM
- Measurements height: 1755 MM
- Machine weight: 3400 KG
Control Unit
- Model: MANUAL plus 620
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 0 - 3000 1/MIN
- Spindle motor power: S1/ S6 - 40%: 17 / 25 kW
Movement
- X-AXIS Movement: 285 mm
- Z-AXIS Movement: 1590 mm
Workpiece
- Workpiece drm over bed: 550 mm
- Workpiece drm over support: 350 mm
Additional Equipment
- - Quill cone: MORSE 5
Additional Information
- Technical Machine Benefits:
- - Max. Machining diameter: 500 mm
- - Distance between the tips: 1600 mm
- - Tailstock quill diameter: 90 mm
- - Quill stroke: 160 mm
- - Working feed: 0 - 10,000 mm/min
- - Total machine input: 30 kva
- - Turret head 8 positions (vdi 30)
- - Rapid feed: 10 m/min
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
