Krauss Maffei - 4000-19000 MCDE-INJ-KRA-2003-00002
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Plastics Processing Machinery
- Krauss Maffei 4000-19000 MC Injection Moulding Machine

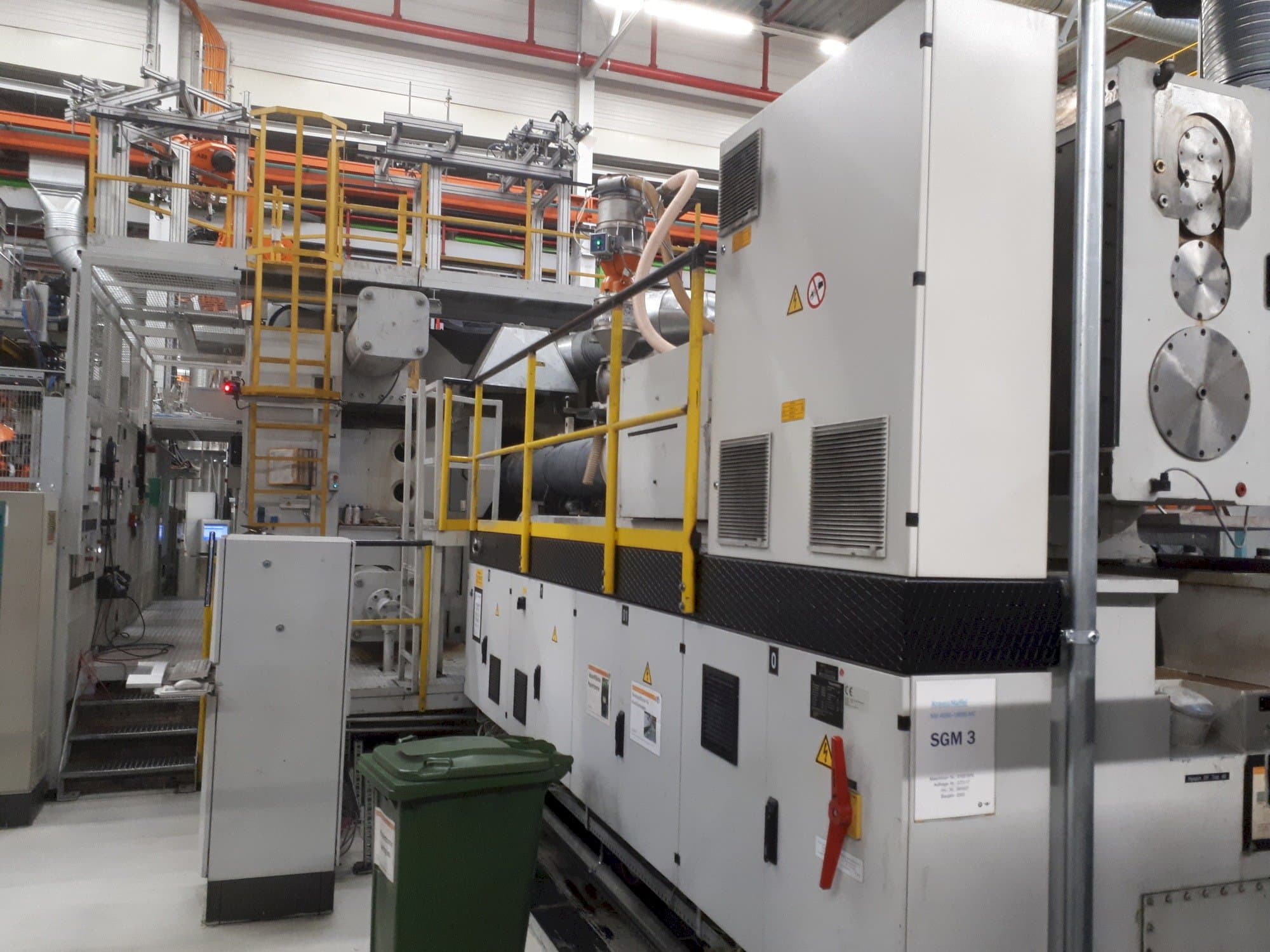

This Krauss Maffei 4000-19000 MC Injection Moulding Machine was built in Germany in 2003 and has been operative for 64000 hours. Equipped with a Krauss Maffei MC4 Control unit, this powerful machine can work with a clamping force of 40000 kN.
Overview
- brand: Krauss Maffei
- year: 2003
- MODEL: 4000-19000 MC
- production hours: 64000
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 4000-19000 MC
General Data
- Measurements width: 16295 mm
- Measurements depth: 4900 mm
- Measurements height: 4200 mm
Control Unit
- Model: MC4
- Brand: KRAUSS MAFFEI
Injection Unit
- Screw diameter: 140 mm
- Shot weight: 8825 g
- Stroke volume: 9698 CM³
- Injection pressure: 1960 bar
Clamping unit
- Clamping force: 40000 kN
- Opening stroke: 3100 mm
- Max open daylight: 4200 mm
- Distance between bars: 2265 mm / 1825 mm
- Ejector stroke: 350 mm
- Ejector force for / back: 772KN / 368 kN
Media
- Main electronic connection: 400V /50Hz / 3P
Additional Equipment
- - 2x piece core pulls on movable plate
- - 5x piece core pulls on fixed plate
- - nozzle seal
- - Hydraulic ejector
- - Electric ejector
Additional Information
- Technical Machine Benefits:
- - Robot interface euromap 67
- - Units control stations for mould heating
- - Injection embossing circuit
- - Hydraulic safety door
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
