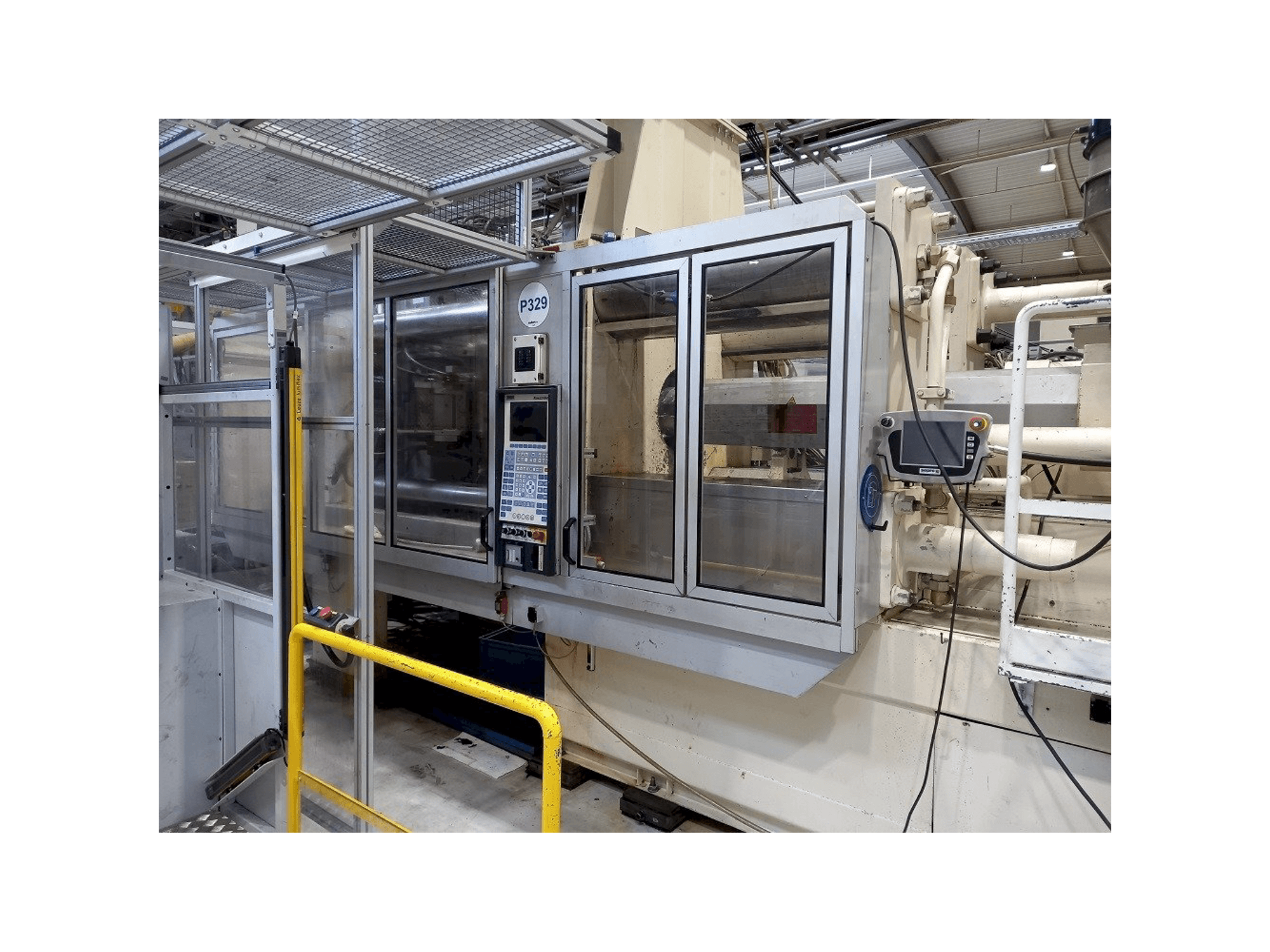

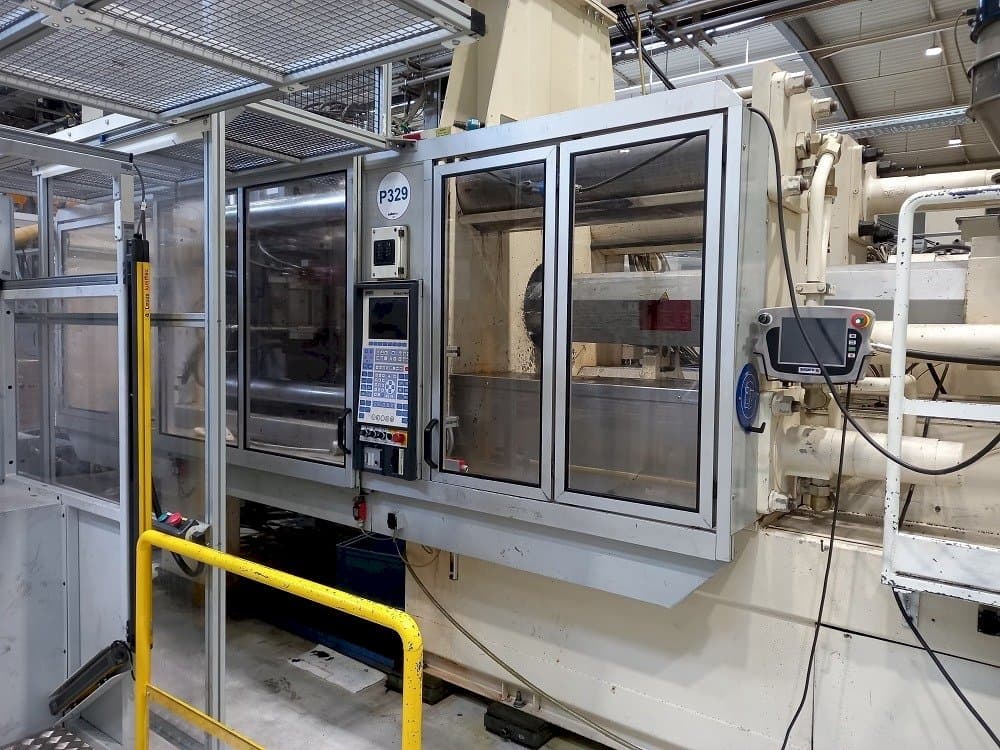

Front view of Krauss Maffei 500 H 3500 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 500 H 3500 C1

Photo Gallery

Krauss Maffei - 500 H 3500 C1FR-INJ-KRA-2000-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 500 H 3500 C1 Injection Moulding Machine

This Krauss Maffei 500 H 3500 C1 Injection Moulding Machine was built in the year 2000. It has 5180 production hours. It is operated with a control unit of the same brand. This machine work with a clamping force 5000 kN, a screw diameter 90 mm, and an ejection stroke 250 mm.

Overview

brand: Krauss Maffei
year: 2000
MODEL: 500 H 3500 C1
production hours: 51850
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 500 H 3500 C1

Injection Unit

Screw diameter: 90 mm
Injection pressure: 1742 bar

Clamping unit

Clamping force: 5000 kN
Ejector stroke: 250 mm

Additional Information

Additional equipment

Number of heating zone 20 zones
2 core pul on moving platen
2 core pull on fix platen

Machine Benefits

Qualitative Machine Benefits

Hmi / new control unit
New metering motor
Locking unit redone
Machine calibration done
New hydraulic hoses

Technical Machine Benefits

Maximum injection volume : 1953 cm3
Platen dimension : 1270 x 1200 mm
Distance between tie bar : 900 x 800 mm
Mould min thickness : 480 mm
Opening strocke max : 1170 mm
Distance max between platen : 1650 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
