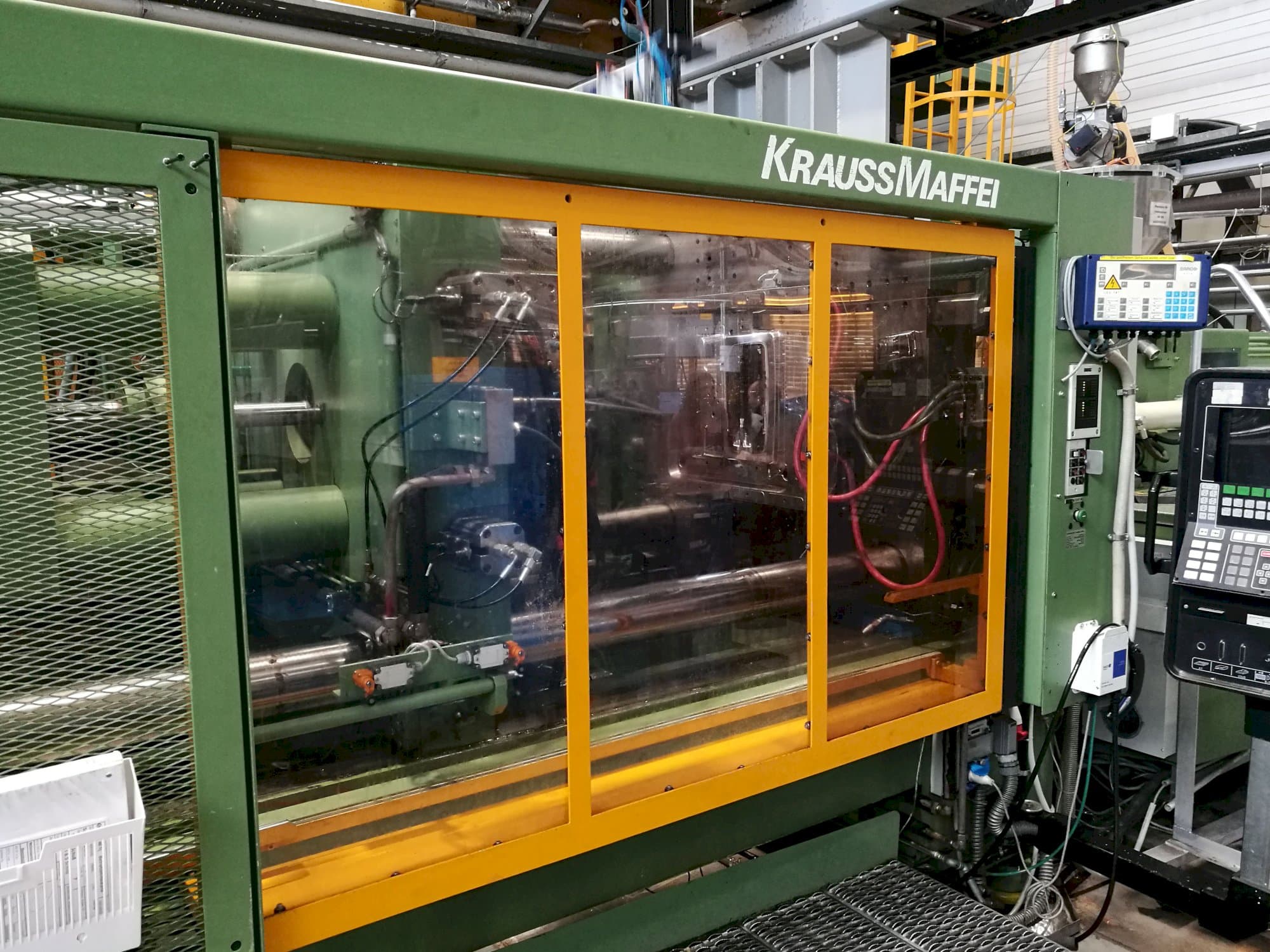

Left view of Krauss Maffei 650-2300 B2 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650-2300 B2

Photo Gallery

Krauss Maffei - 650-2300 B2DE-INJ-KRA-1995-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 650-2300 B2 Injection Moulding Machine

This Krauss Maffei 650-2300 B2 Injection Moulding Machine was built in 1995 in Germany and is equipped with a Krauss Maffei MC3 Control unit. This machine has mainly prepared plastic parts for the automotive industry during the past and incorporates a handling unit by Wittmann.

Overview

brand: Krauss Maffei
year: 1995
MODEL: 650-2300 B2
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 650-2300 B2

General Data

Measurements width: 12420 mm
Measurements depth: 3080 mm
Measurements height: 2400 mm
Machine weight: 45500 kg

Control Unit

Model: MC3
CNC main language: German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 80 mm
Shot weight: 1286 g/PS
Injection pressure: 1626 bar
Plasticizing rate max.: 137 g/s PS
Screw speed: 277 1/min
Heating capacity: 45 kW
Adjustable heating zones: 7
Nozzle pressure: 172.5 kN

Clamping unit

Clamping force: 6500 kN
Opening stroke: 1150 mm
Max open daylight: 1710 mm
Distance between bars: 1000x900 mm
Mould height min: 560 mm
Size of mold platens: 1440x1350 mm
Ejector stroke: 250 mm
Ejector force for / back: 265 kN

Media

Power consumption: 110 kVA

Additional Equipment

- Handling Wittmann

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
