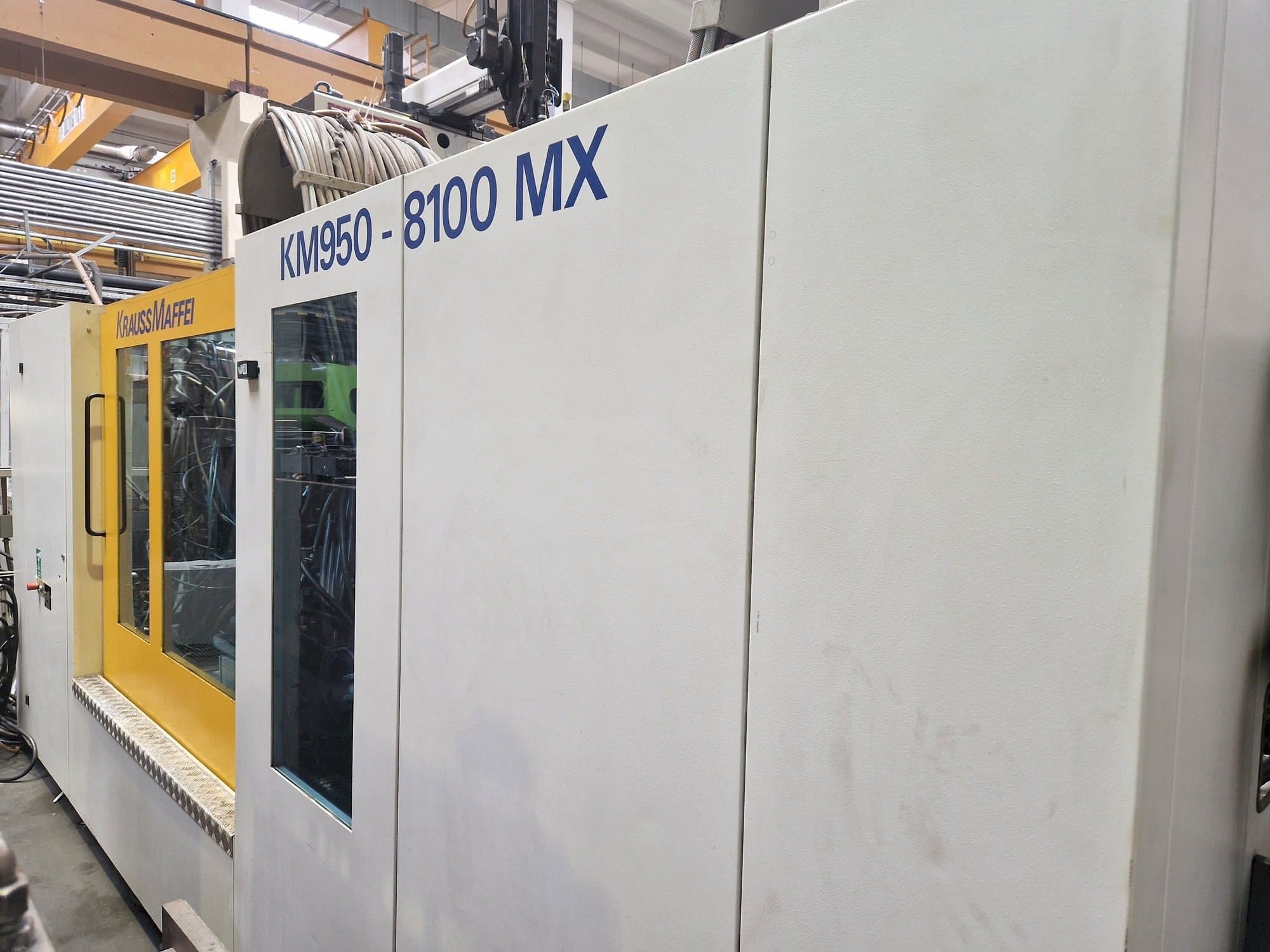

Front view of Krauss Maffei 950-8100 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 950-8100 MX

Photo Gallery

Krauss Maffei - 950-8100 MXPL-INJ-KRA-2008-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 950-8100 MX Injection moulding machine

This Krauss Maffei 950-8100 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 98085 production hours. It is equipped with Krauss Maffei MC5 control unit. The machine has a clamping force of 9500 kN and a screw diameter of 105 mm, is in good condition and well maintained.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 950-8100 MX
production hours: 98085
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 950-8100 MX

General Data

Measurements width: 11230 mm
Measurements depth: 3420 mm
Measurements height: 2610 mm
Machine weight: 56000 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 105 mm
Injection pressure: 4546 BAR

Clamping unit

Clamping force: 9500 kN
Opening stroke: 1900 mm
Distance between bars: 1400 / 1150 mm
Mould height min: 500 mm
Mould height max: 1200 mm
Ejector stroke: 0 – 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
- - Clearance between the tables (mm) 2400 mm
- - Capacity injection: 4546 cm3
- - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
- - Table whole tread: m24, quantity of hydraulic oil: 1500 liters
- - Motor: 110 / 117 kw, heating power: 59 kw
- - Safeguard the door: pneumatic
- - Valve terminal: 8 nozzles
- - Air valves: 3 valves
Qualitative Machine Benefits:
- - The machine is in very good condition, full documentation, and service history available, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
