KREWEMA - HFDM 40DE-TUR-KRE-1990-00001

Name: KREWEMA HFDM 40
Brand: KREWEMA
SKU: DE-TUR-KRE-1990-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KREWEMA HFDM 40 For Sale | gindumac.com

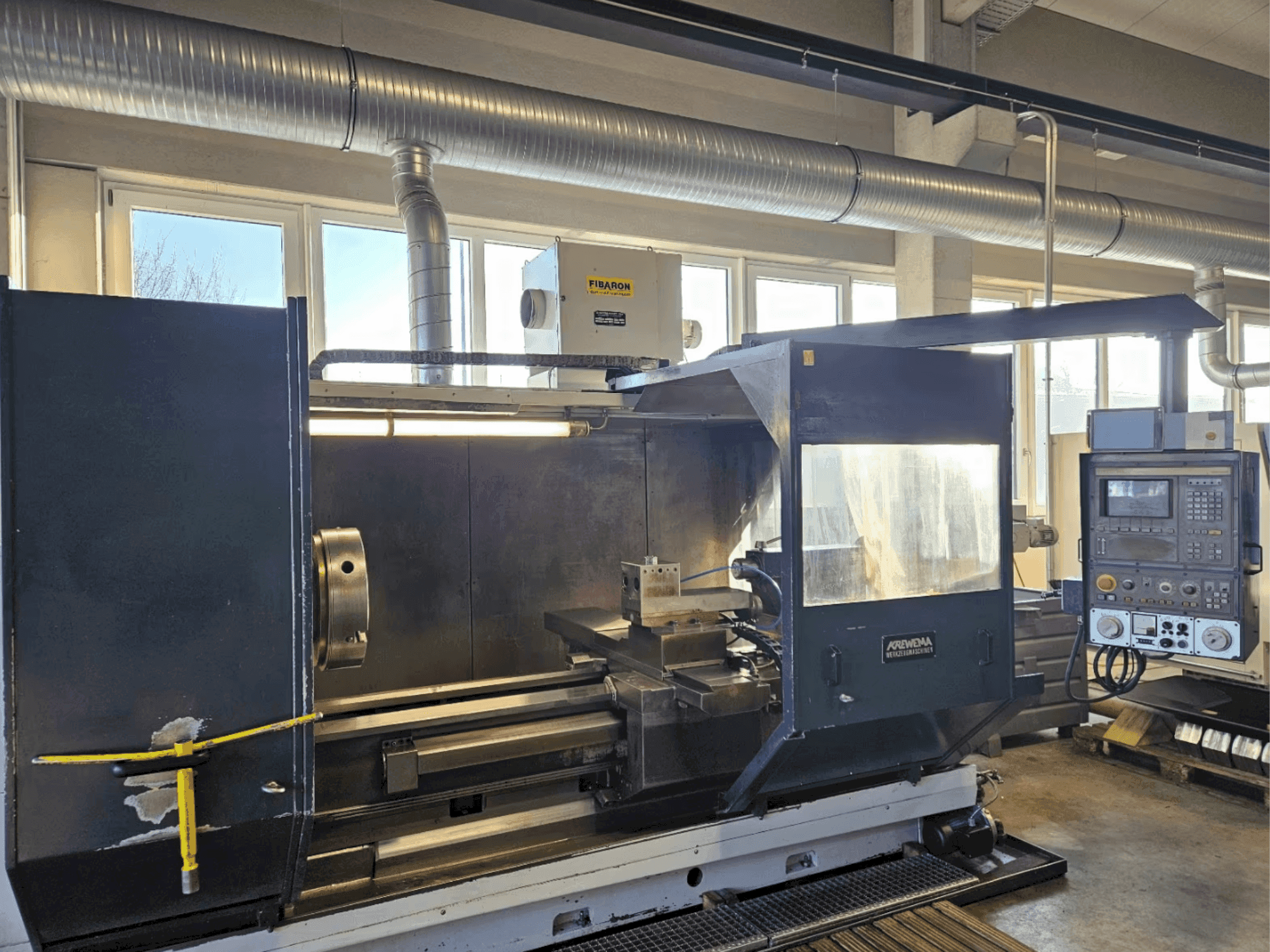

This KREWEMA HFDM 40 was manufactured in 1990. It features a motor-driven, extendable machine bed, reinforced main spindle bearings, and a Z-axis travel of 1500 mm plus an additional 1000 mm via the machine bed. The turning diameter reaches up to Ø1200 mm, with a center height of 410 mm. It includes a 3-jaw Schunk chuck Ø500 mm and is equipped with a Siemens Sinumerik 810T control system. Contact us for more information about this machine.

Overview

brand: KREWEMA
year: 1990
MODEL: HFDM 40
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - KREWEMA HFDM 40

General Data

Machine weight: 6500 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 810T

Main drive

Spindle speed range: 1400 1/MIN
Spindle motor power: 30 kW
Spindle bore: 135 mm

Movement

Z-AXIS Movement: 1500 mm

Tools

Type of tool holder: VDI40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers: max. 2500 mm
- - Turning diameter max. : Ø1200 mm
- - Turning diameter over bed max. : Ø800 mm // turning diameter over slide max. : Ø500 mm
- - Center height: approx. 410 mm
- - Faceplate max. Ø1200 mm possible (not included in the offer)
- - 3-jaw schunk chuck Ø500 mm (including one set of hard jaws)
- - Tailstock
- - Lynette max. Ø400 mm
- - Tool holder for vdi40 and 2" boring bars (Ø58 mm)
- - Vdi40 tool holders (see photos for the number and type included in the offer – tools not included)

Extra information

- Design with reinforced main spindle bearings Motor-driven, extendable machine bed Original KREWEMA and Siemens documentation Backup file for control system available The machine is still in operation and can be inspected by appointment.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
