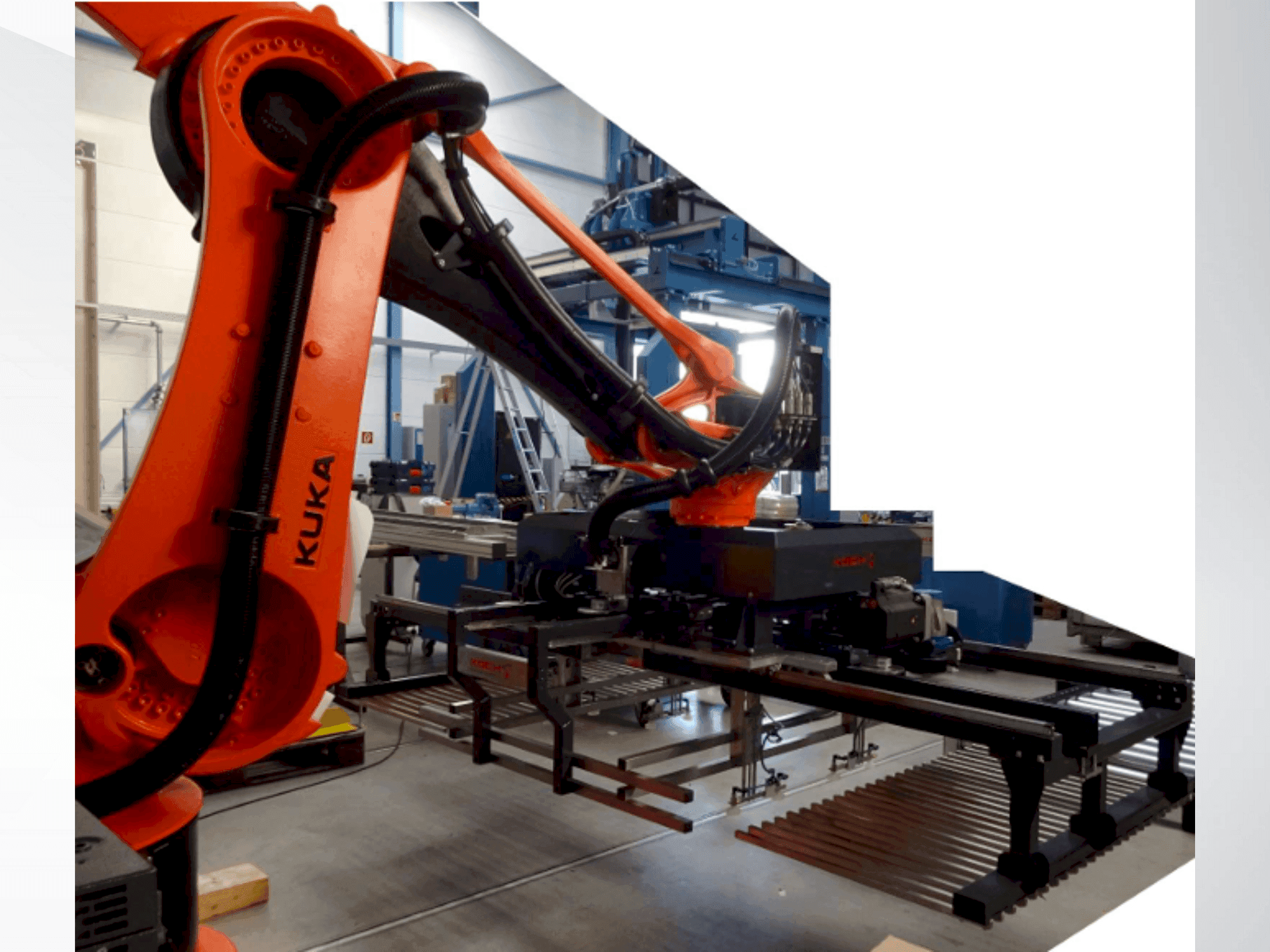

Robot KUKA KR700 PA - 2021 - for sale | gindumac.com

This KUKA KR700 PA was manufactured in 2021. Originating from Germany with a load capacity of 700 kg and a reach of 3320 mm, it weighs 33850 kg and is powered by the compact KR C4 controller. It is in a excellent condition as it was not put into operation. This KUKA KR700 PA machine we have for sale represents a valuable addition to any production line. For further information, please contact us.

Overview

brand: KUKA
year: 2021
MODEL: KR 700 PA
application type: Robotics
Location: Germany
machine type: Robot Arm
availability: Sold
control unit brand: KUKA

Technical Information - KUKA KR 700 PA

General Data

Machine weight: 2850 KG

Control Unit

Model: KRC4
Brand: KUKA

Controller

Brand: KUKA
Model: KRC4

Main drive

Number of axis: 4
Max payload: 700 KG
Max reach: 3320 mm

Additional Equipment

- 1x robot platform
- 1x pick-up roller conveyor:
- conveyor length: approx. 1,700 mm, usable width: approx. 1,475 mm; conveyor height: approx. 465 mm, with roller Ø 40 mm)
- 1x excavation station
- 1x full-surface gripper

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Kuka smartpad-2 and cable set
- - Cycles per minute: up to 17 work cycles p. Minute

Extra information

- Range of movement A1 ±185 ° A2 -120 ° / 10 ° A3 -10 ° / 150 ° A6 ±350 ° Speed at rated load A1 76 °/s A2 76 °/s A3 67 °/s A6 168 °/s no operating hours as it was not put into operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
