➤ Used KUKA KR 90 R2700 pro Robot For Sale | gindumac.com

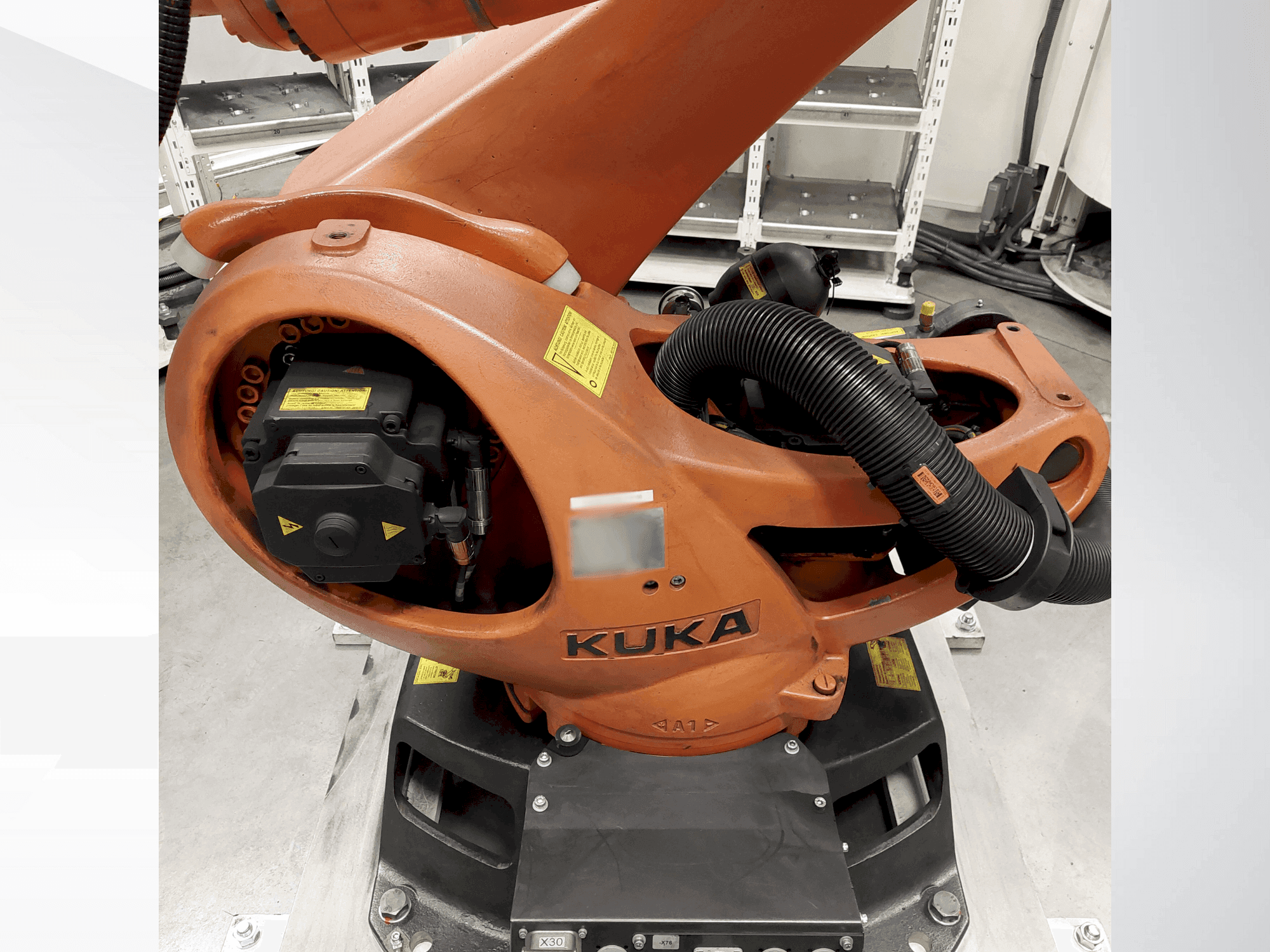

This KUKA KR 90 R2700 pro robot was manufactured in 2015. It features a substantial weight of 1058kg and can handle loads up to 90kg, with a reach of 2696mm. Ideal for tasks requiring significant reach and load capacity. For more information about this robot, please reach out to us.

Overview

brand: KUKA
year: 2015
MODEL: KR 90 R2700 pro
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - KUKA KR 90 R2700 pro

General Data

Machine weight: 1058 KG

Workpiece

Workpiece weight: 90 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Range: 2696mm
Qualitative Machine Benefits:
- - Control cabinet and control included

Extra information

- Product designation: Industrial robot/ Model/type: KR 90 R2700 pro/ Control type: KR C4/ Technical data/ Reach: 2700 mm/ Payload: 90 kg/ Drive: Electric (servomotors)/ Safety standards: EC Machinery Directive 2006/42/EC/ EC EMC Directive 2004/108/EC/ EN ISO 10218-1/-2 (robot safety)/ Control system (KR C4)/ CPU: Dual-core Haswell (LGAT150)/ RAM: 2 GB DDR3/ Memory: SSD (2.5 inch, SATA)/ Operating system: VxWorks Runtime/ Windows Embedded Standard 7 (for HMI)/ Software versions: KSS (KUKA System Software): 8.3/ KUKA.SafeOperation: 3.2 (safety package)/ KUKA.WorkVisual: 3.1 (engineering tool)/ KUKA.UserTech: 3.2 (user programming)/ KUKA.Gripper&SpotTech: 3.2 (gripper/welding functions)/ Hardware components (excerpt)/ Power supply unit: 400V transformerless / 27V/40A power supply/ UPS option: Available (Part No. 170957)/ Interfaces: EtherCAT coupler (EK1100)/ Profibus slave (bus coupler)/ Safety interfaces (X11, X13, X51, X66)/ Protection class: Standard housing (RAL 7016) with IP54 option for control unit/ Safety functions Safety modules: Safety Interface Board (SIB): Standard and Extended/ Emergency stop, Safe Operational Stop, Speed monitoring

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
