Lealde - TCN 10 2C 2TES-TUR-LEA-1996-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Lealde TCN 10 2C 2T Lathe

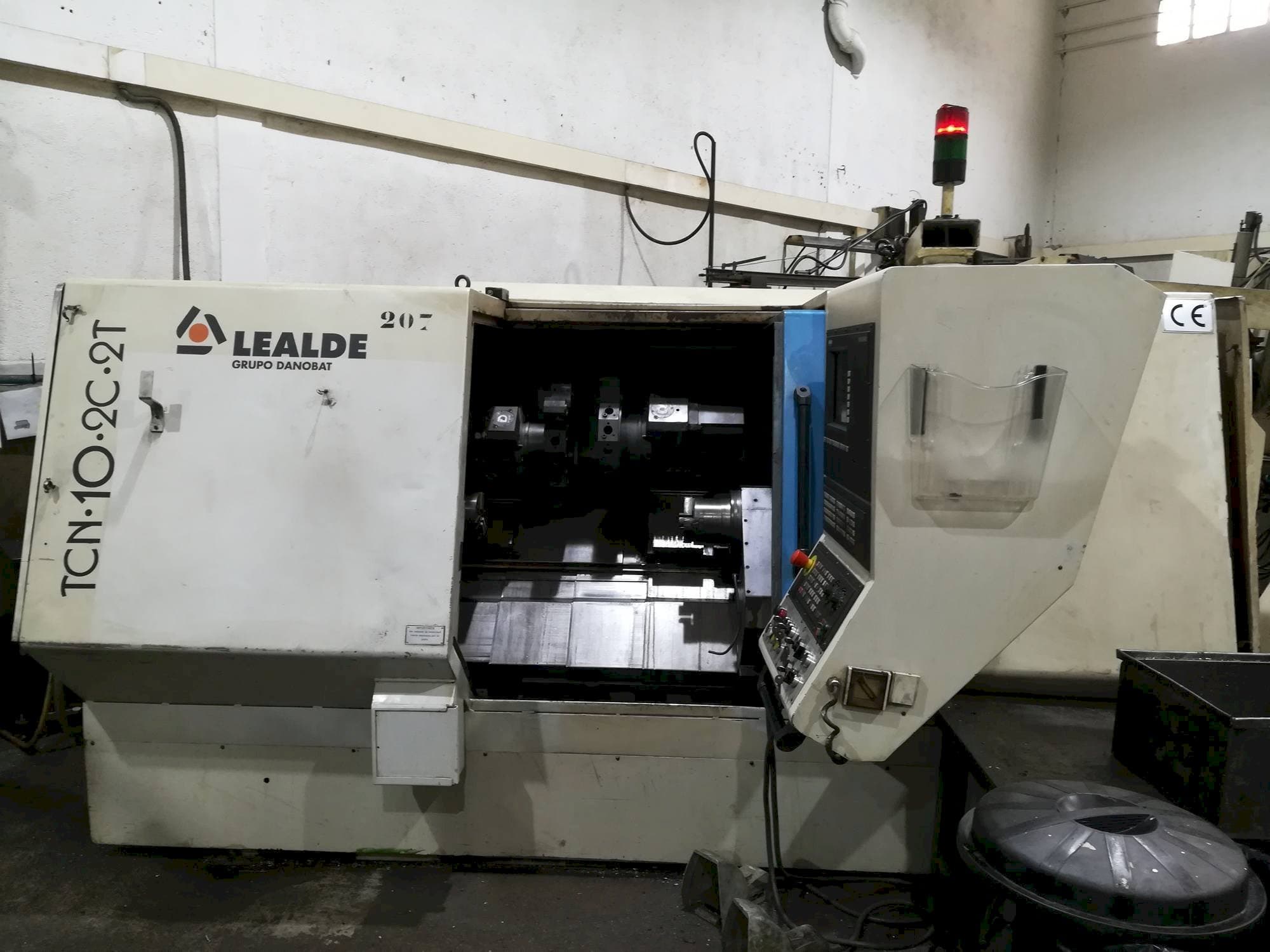

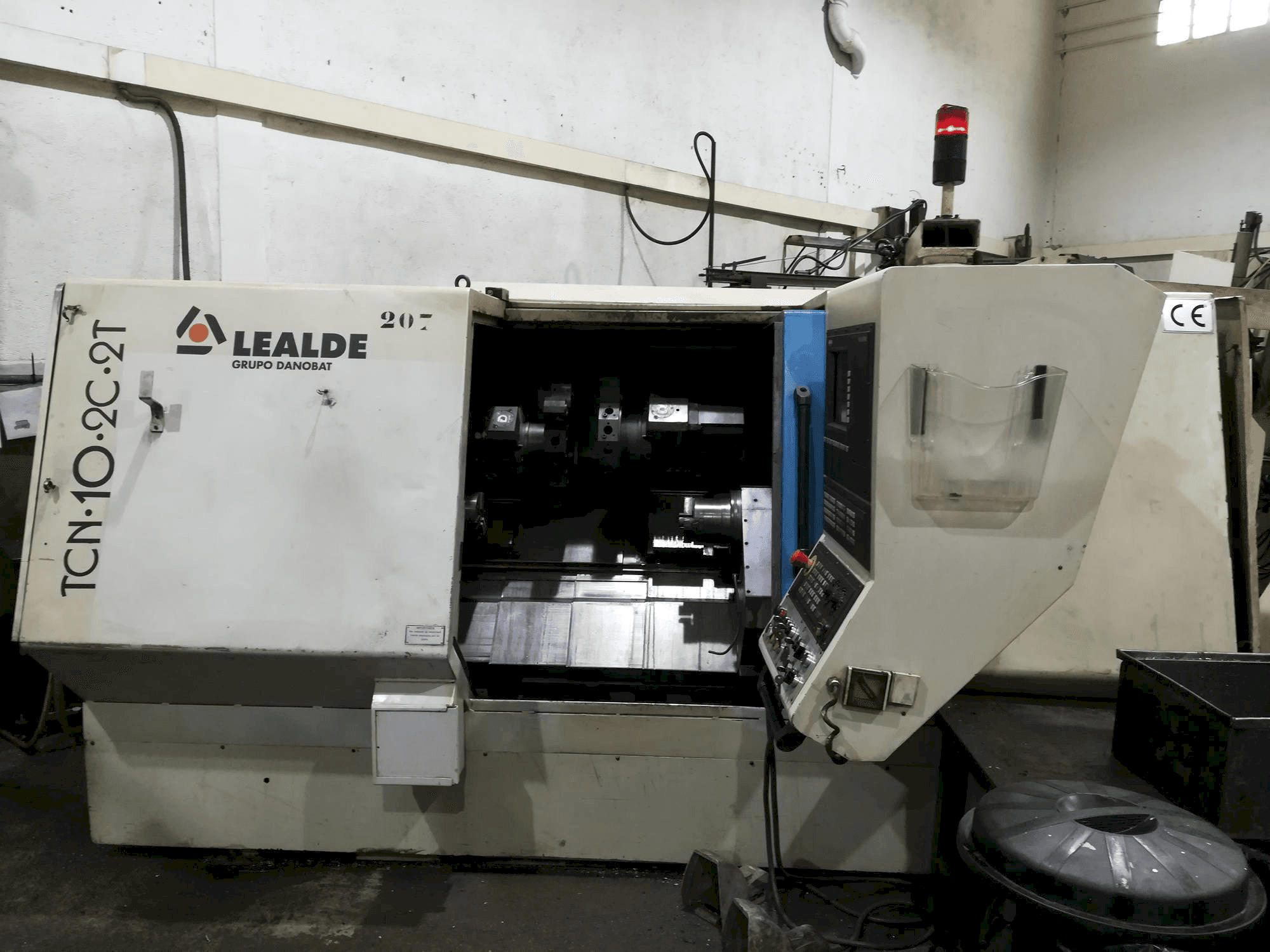

This Lealde TCN 10 2C 2T Lathe was built in 1996 in Spain. Operated through a SIEMENS SINUMERIK 840C Control unit, this machine can work with a spindle speed up to 4000 rpm.
Overview
- brand: Lealde
- year: 1996
- MODEL: TCN 10 2C 2T
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Lealde TCN 10 2C 2T
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840C
Dimensions
- Machine Weight: 3100 kg
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Set of jaws
Machine Benefits
Technical Machine Benefits
- Maximum distance between main shaft nose and tailstock point 520 mm
- Main shaft torque 190 nm
- Max. Permissible diameter on longitudinal guides 450mm
- Maximum permissible diameter on transverse slides 210mm
- Longitudinal slide travel 500mm
- Positioning repeat accuracy x axis +-0, 003 z axis +-0, 007
- Motor drive torque longitudinal spindle 10nm
- Plate 254mm
- Pitch bar 64mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
