Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Litz - LH-800BGB-MIL-LIT-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

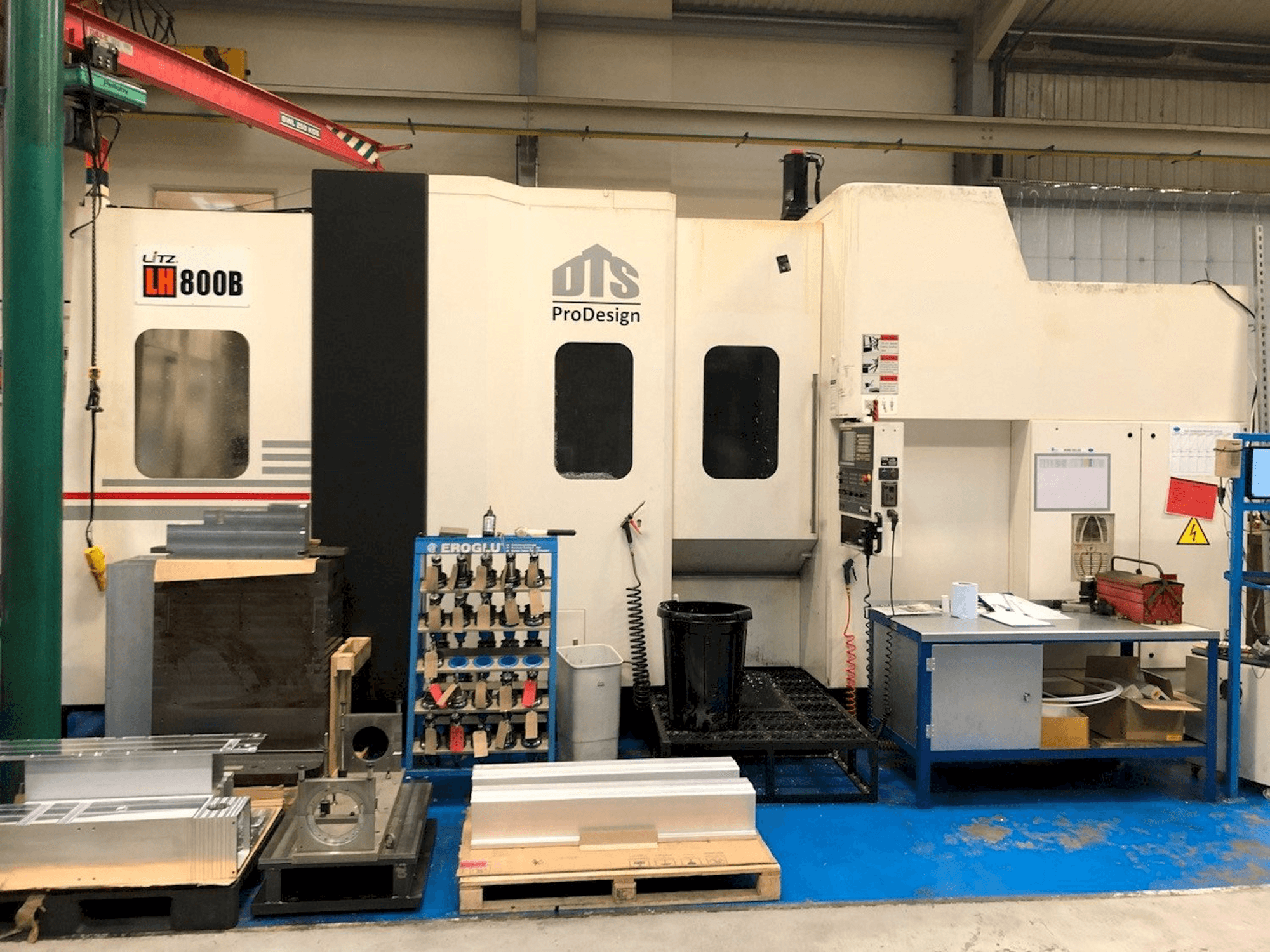

- Litz LH-800B Horizontal Machining Center
This Litz LH-800B Horizontal Machining Center was built in Taiwan in the year 2013. It has 11159 cutting hours. It is operated through a FANUC Series 31i-MODEL B series control unit . This machine perform with a spindle speed up to 8000 rpm. It presents very good conditions.
Overview
- brand: Litz
- year: 2013
- MODEL: LH-800B
- production hours: 11159
- application type: Milling
- Location: United Kingdom
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - Litz LH-800B
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-Model B
Dimensions
- Machine Depth: 4326 mm
- Machine Height: 3948 mm
- Machine Weight: 28000 kg
- Table Length: 800 mm
- Table Width: 800 mm
Movement
- X-axis Travel: 1300 mm
- Y-axis Travel: 1200 mm
- Z-axis Travel: 1200 mm
Technical Specification
- Number of Tools: 60
- Spindle Speed: 8000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Coolant through spindle
- Swarf conveyor
- Full b axis 0. 001 deg
- No. Of pallets 2
- Spindle motor power 22/26 kw
- Spindle center to pallet 135 - 1335 mm
- Spindle nose to pallet center 200 - 1400 mm
- Rapid feedrates 32m/min
- Linear scales
- Laser tool measurement/breakage detector
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Documents
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
