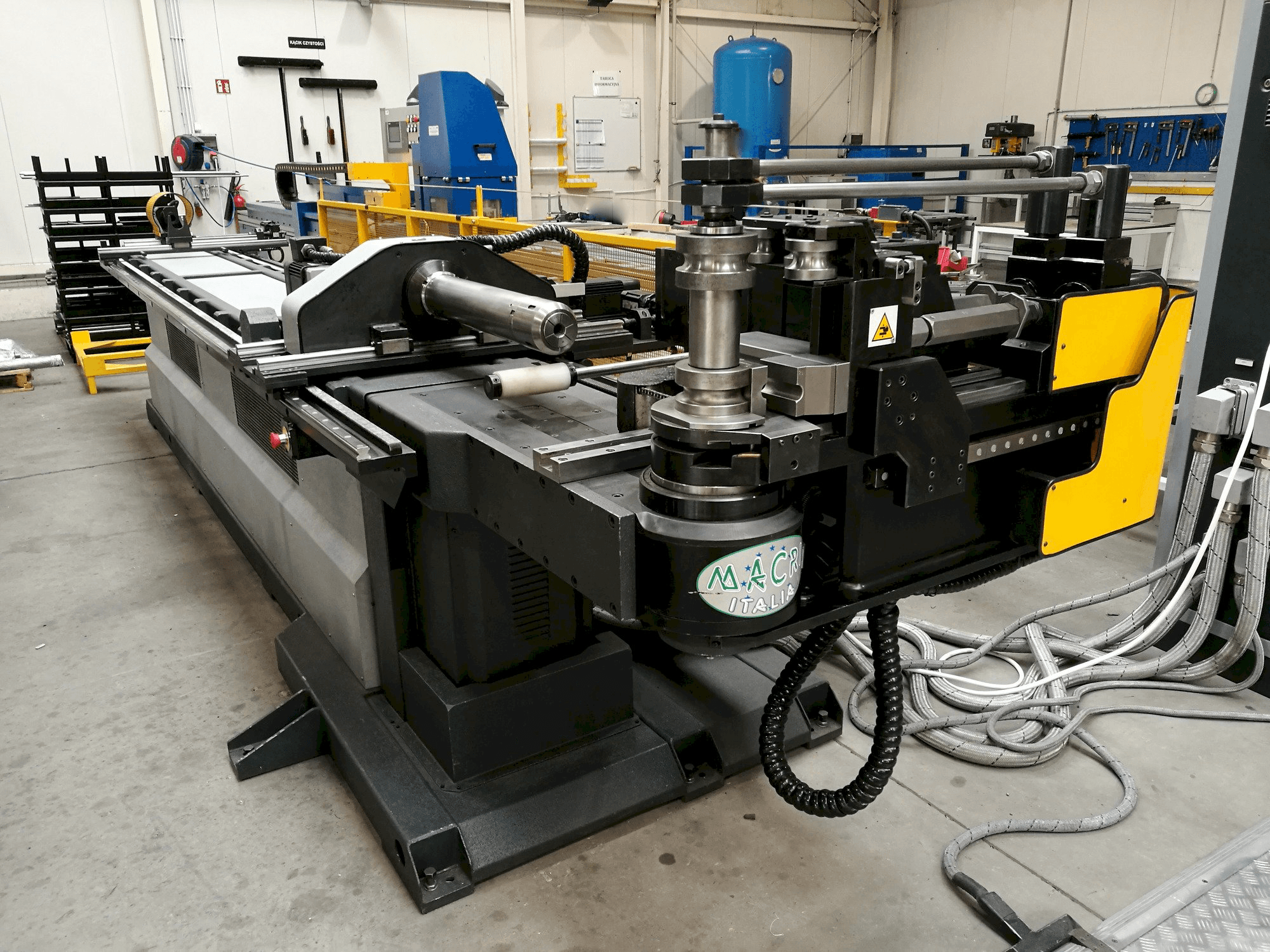

Front view of Macri Italia PROVAR 6-65 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MACRI PROVAR 6-65

Photo Gallery

MACRI - PROVAR 6-65PL-BEN-MAC-2011-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Macri Italia PROVAR 6-65 Pipe Bending Machine

This Macri Italia PROVAR 6-65 Pipe Bending Machine was manufactured in 2011 in Italy. Operated through a numerical touch screen control unit, this machine incorporates 6 fully automatic axes. It stands out for its movable head with gears made of high-strength and improved steel. It has an hydraulic unit for movements of the clamp and all hydraulic closures. The pipe passage in the positioner can work up to a diameter of 65mm. It is possible to build several levels of the tool.

Overview

brand: MACRI
year: 2011
MODEL: PROVAR 6-65
production hours: 0
application type: Bending
Location: Poland
machine type: Roll Bending Machine

Technical Information - MACRI PROVAR 6-65

General Data

Measurements width: 6000 mm
Measurements depth: 1200 mm
Measurements height: 1200 mm
Machine weight: 4800 kg

Main drive

Number of axis: 6

Media

Power consumption: 30.5 kW

Additional Information

Additional equipment

toolkit
software
3 pallets of additional holders

Machine Benefits

Qualitative Machine Benefits

Direction of rotation in a clockwise direction
Axial movements using brushless motors and high reliability drives
Hydraulic unit for movements of the clamp and all hydraulic closures
The possibility of bending standard and free (variable) rays

Technical Machine Benefits

Max. Pipe diameter 65x4 mm
Usable length of the pipe: 5100 mm
Automatic lubrication of the mandrel
Movable head with gears made of high-strength, improved steel
3 levels of tools - 3 different fixed beams or 2 different constants
Pipe passage in the positioner up to a diameter of 65mm
Mounted: radiator, automatic lubrication of the mandrel, extraction of the earlier stem it is possible to build several levels of the tool

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
